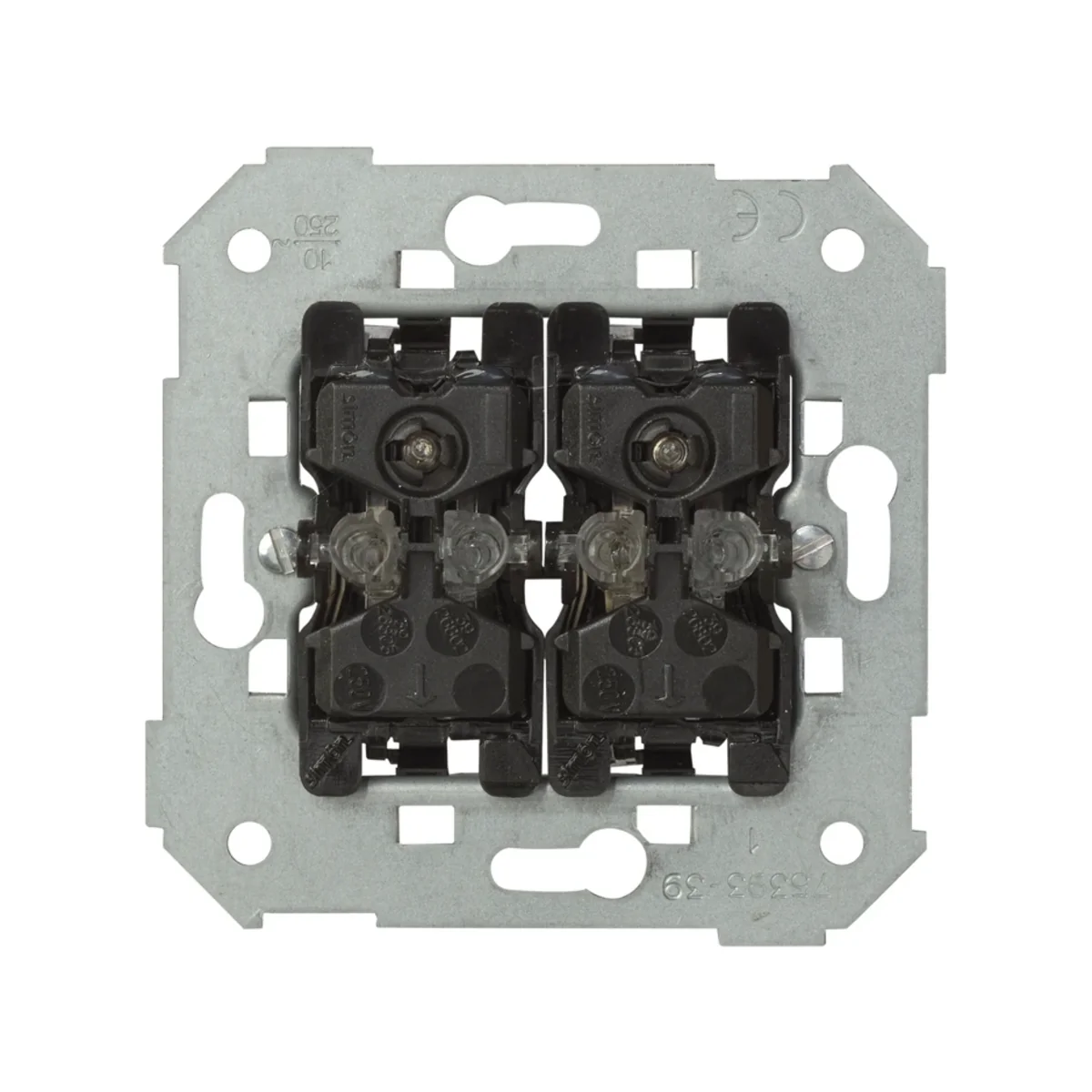

Normally open switch - double button with 10AX backlight 75393-39
local index:
MPZ002KONT
Catalog No:
75393-39
EAN code:
8421053036617
Price:
23,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Mechanism of a double-opening series Simon 82, from the manufacturer Contact Simon. The product catalog number is 75393-39.
- Use a frame gasket to achieve IP44 splash-proof rating.
- Built-in backlight. < li>2 NO contacts.
Technical data
-
Depth [mm]34
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]75
-
BacklightYes
-
Terminal typeThreadless
-
For the frame systemYes
-
Backlight colorRed
-
Number of keys2
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 82
-
Width [mm]75
-
VersionConfident
-
Surface protectionNatural
-
Mounting depth [mm]23
-
VariantOrdinary
-
Backlight typeOrientation Smoldering lamp
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Contacts2 make contacts (NO)
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,073 | 0,073 | 0,750 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,034 | 0,160 | 0,100 |
