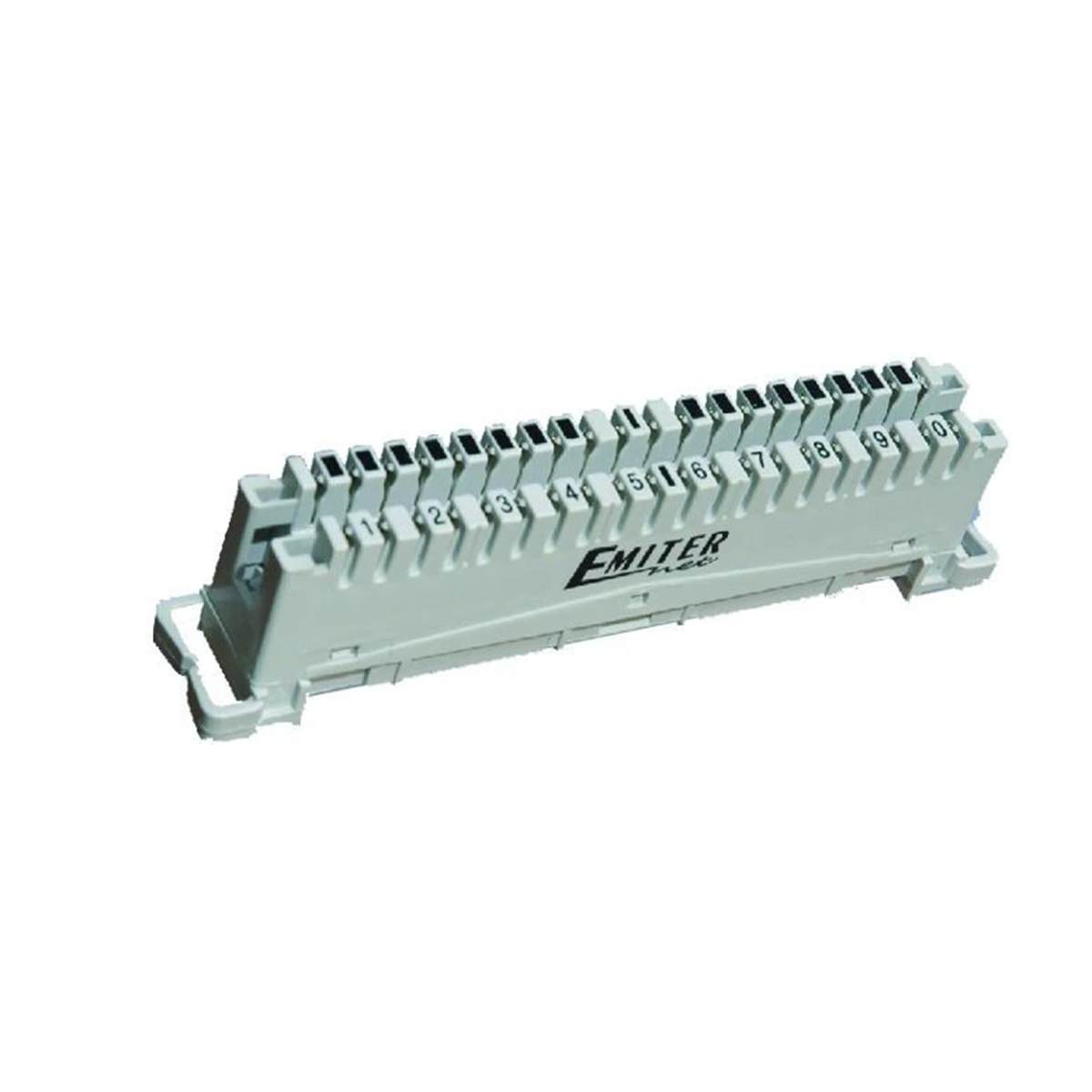

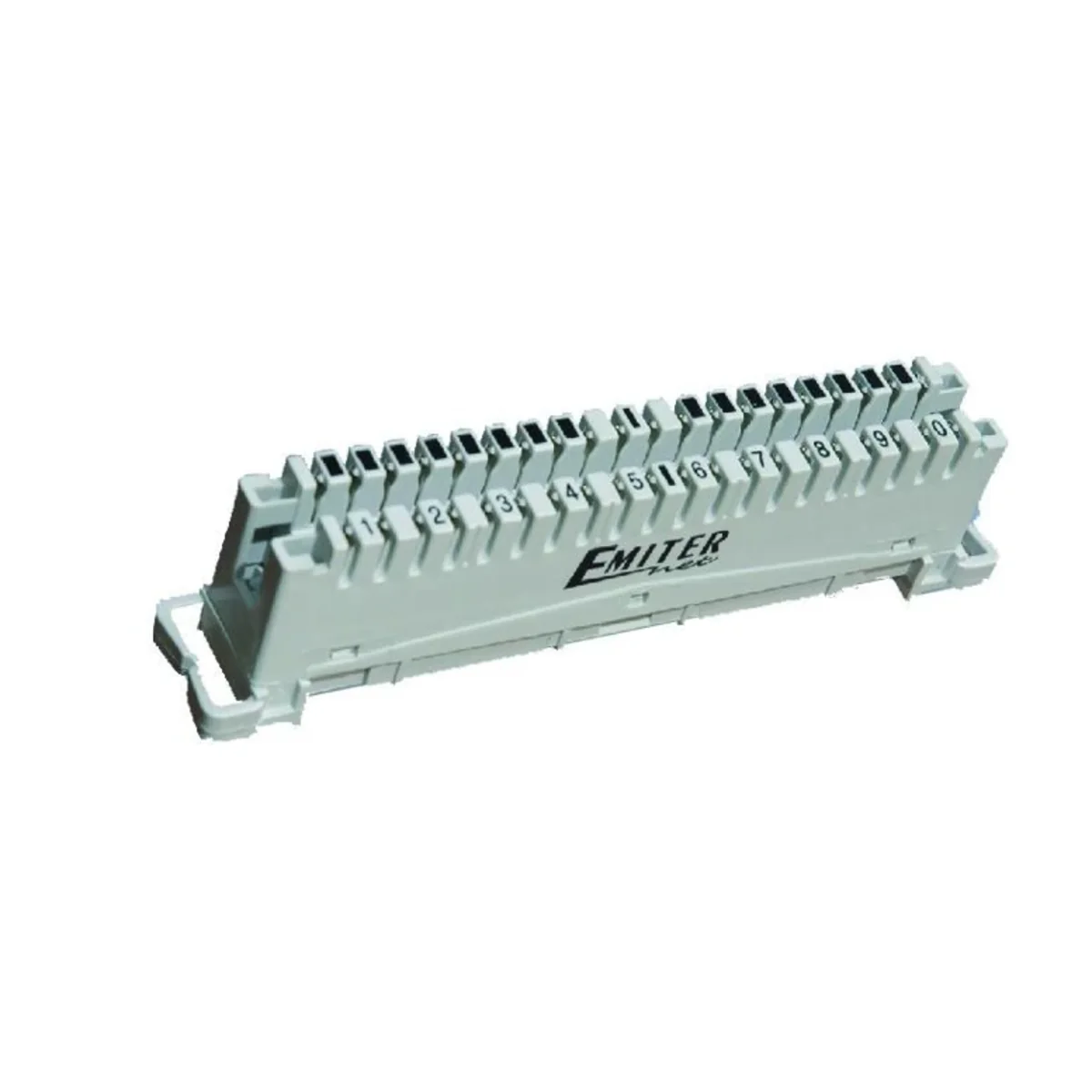

Non-separable gray telephone connector FU/TEL/F-10

local index:
AEB009EMSO
Catalog No:
FU/TEL/F-10
EAN code:
5906764102132
Manufacturer: EMITER
Color: Gray
Price:
3,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Phone connector (crossover connector) LSA, non-separable for 10 pairs. It does not require removing the insulation from the wires during assembly. Connections are made using a patch knife. The connector accepts wires with a cross-section of 0.4 to 0.6 mm (possibility of connecting 2 wires to 1 terminal). It has terminal markings 1, 2, ... 0





Mechanical:


dimensions (width x height x depth): 125x21.5x40mm


color: grey


weight: 58g


housing material: UL94V0 flame retardant plastic


connector material: silver-plated phosphor bronze


accepts [mm] conductors: 0.4-0.6


category: 3

Technical data

  • Color
    Gray

Other technical data

  • Model
    Connection strip
  • Built-in possibility for over voltage protection
    No
  • Colour
    Grey
  • Width
    125 mm
  • Max. number of dual cores
    10
  • Connection type
    LSA Plus
  • With strip code
    Yes
  • Length
    40 mm
  • Height
    21.5 mm
  • Conductor diameter
    0.4 ... 0.6 mm
