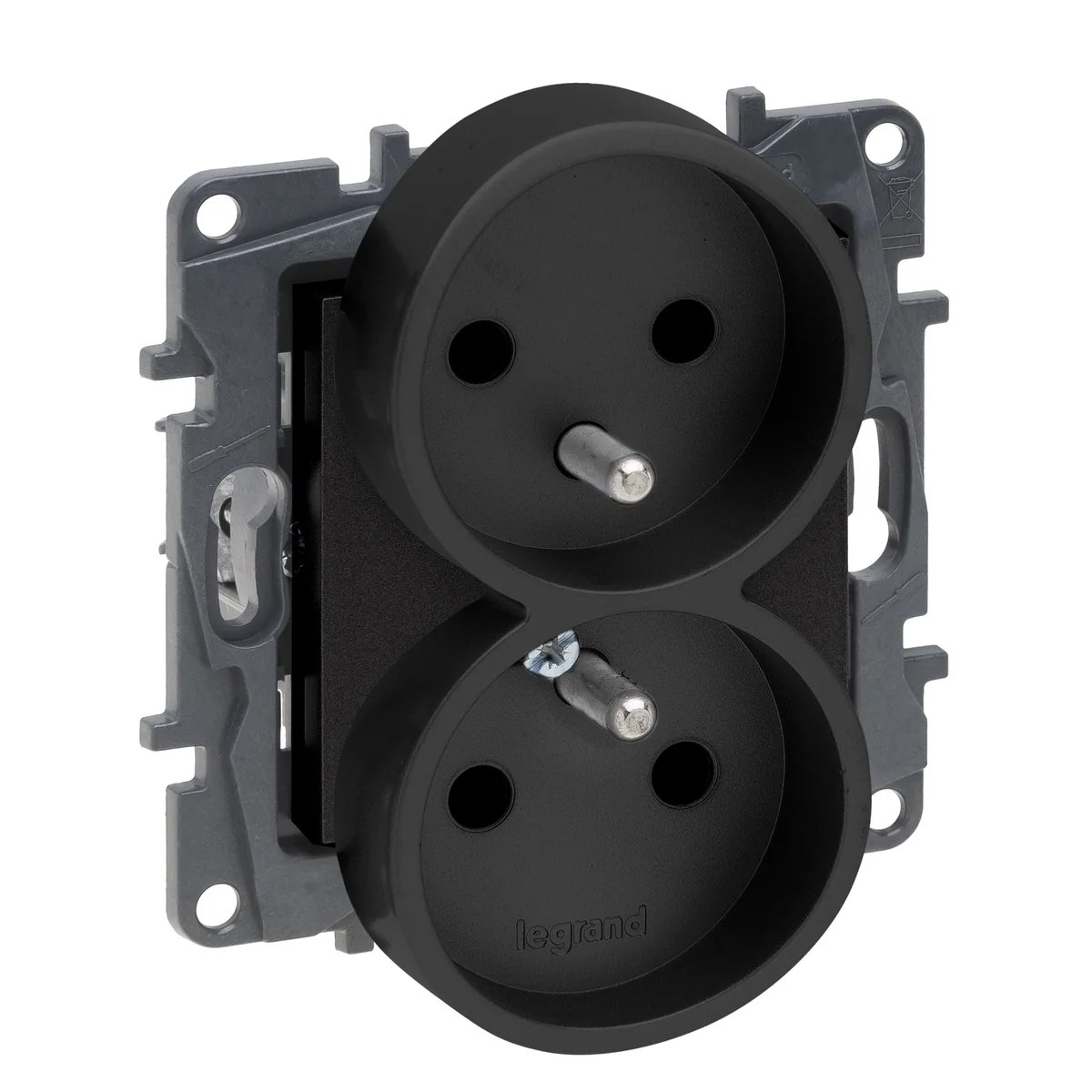

Niloe Step - double power socket 2x2P+Z for multiple frames, screw terminals, without contact cover - black 863532

Místní index:
MEE058LEGR
Katalogové číslo.:
863532
EAN kód:
3414971841840
Výrobce: LEGRAND
Cena:
21,17 zł
gross / kusů.
(včetně DPH 23%)
2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Technické údaje

  • PKWIU
    27.33.13.0

Další technické údaje

  • Model
    Earthing pin
  • Protective contact
    Round
  • Number of active contacts (flat)
    0
  • Assembly arrangement
    Basic element with central cover plate
  • Number of ports USB-A
    0
  • Number of socket outlets
    2
  • Number of modules (module system)
    2
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Black
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75.8 mm
  • Device depth
    57.2 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    4
  • Number of active contacts (square)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Gniazda z izolacją fazową
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9017
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    No
  • Colour of switch operator
    Black
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK04
  • Device height
    86.2 mm
  • Min. depth of built-in installation box
    31 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No

Podrobnosti o výrobci

  • Výrobce
    Legrand Polska Sp. z o.o.
  • Adresa
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Velkoobjemová balení

Typ obalu Pudełko Karton Paleta
Množství 5 kusů. 50 kusů. 1750 kusů.
Hmotnost (kg) 0,455 5,428 189,980
Objem (m3) 0,004 0,052 2,004
Šířka (m) 0,093 0,400 1,200
Délka (m) 0,115 0,215 1,670
Hloubka (m) 0,386 0,600 1,000
