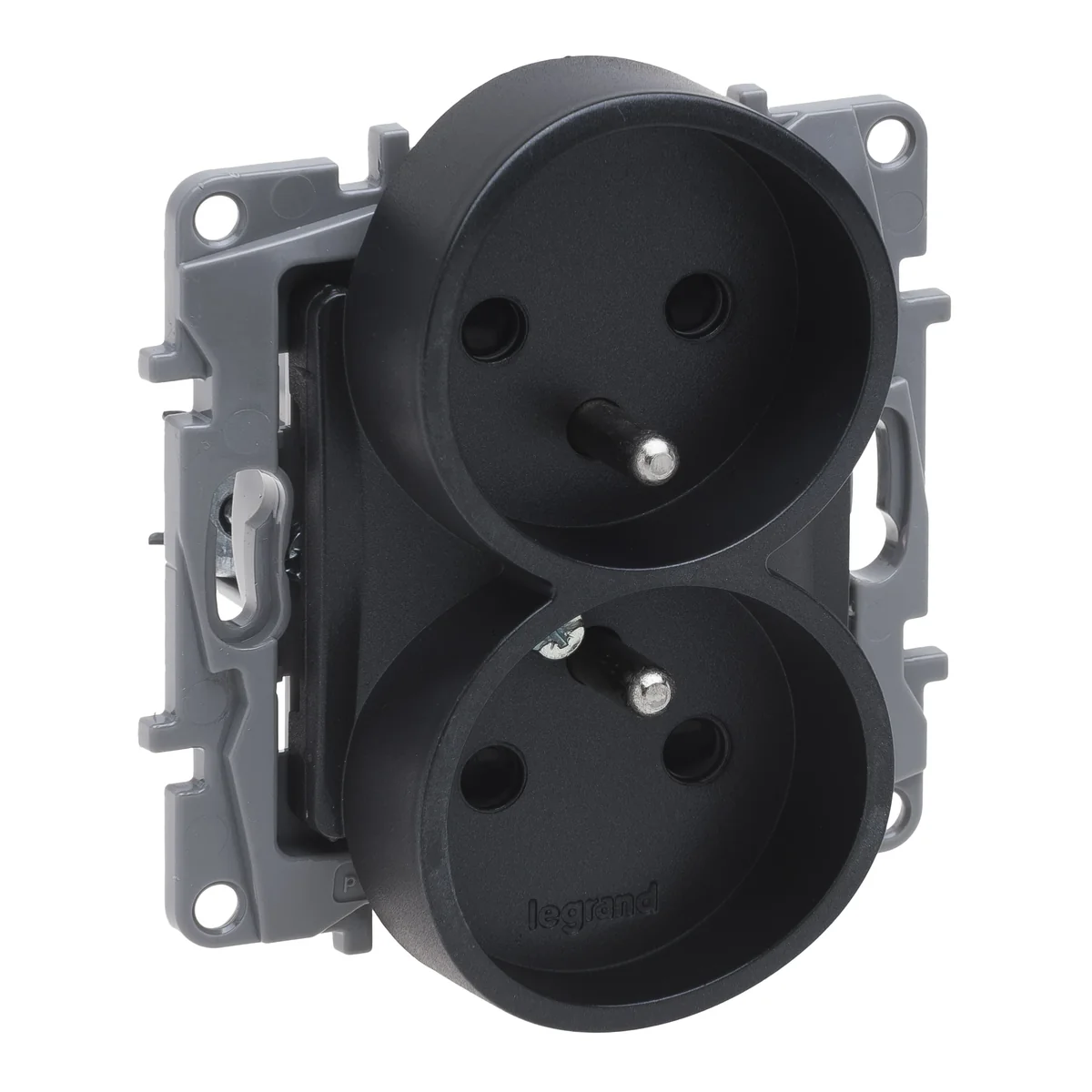

NILOE SELECTION - SOCKET 2 X 2P+Z FOR MULTIPLE FRAME (WITH SHUTTER, SCREW TERMINALS) ANTHRACITE 762242

local index:
MEE069LEGR
Catalog number:
762242
EAN code:
3414971964938
Manufacturer: LEGRAND
Price:
24,88 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Earthing pin
  • Protective contact
    Round
  • Number of active contacts (flat)
    0
  • Assembly arrangement
    Basic element with central cover plate
  • Number of ports USB-A
    0
  • Number of socket outlets
    2
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    Yes
  • Colour of switch operator
    Anthracite
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK04
  • Device height
    86.2 mm
  • Min. depth of built-in installation box
    32 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    4
  • Number of active contacts (square)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of modules (module system)
    2
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Anthracite
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75.8 mm
  • Device depth
    57.2 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 50 pcs. 250 pcs.
Weight (kg) 0,876 5,275 26,375
Volume (m3) 0,008 0,052 0,454
Width (m) 0,186 0,400 1,200
Length (m) 0,115 0,215 0,378
Depth (m) 0,386 0,600 1,000
