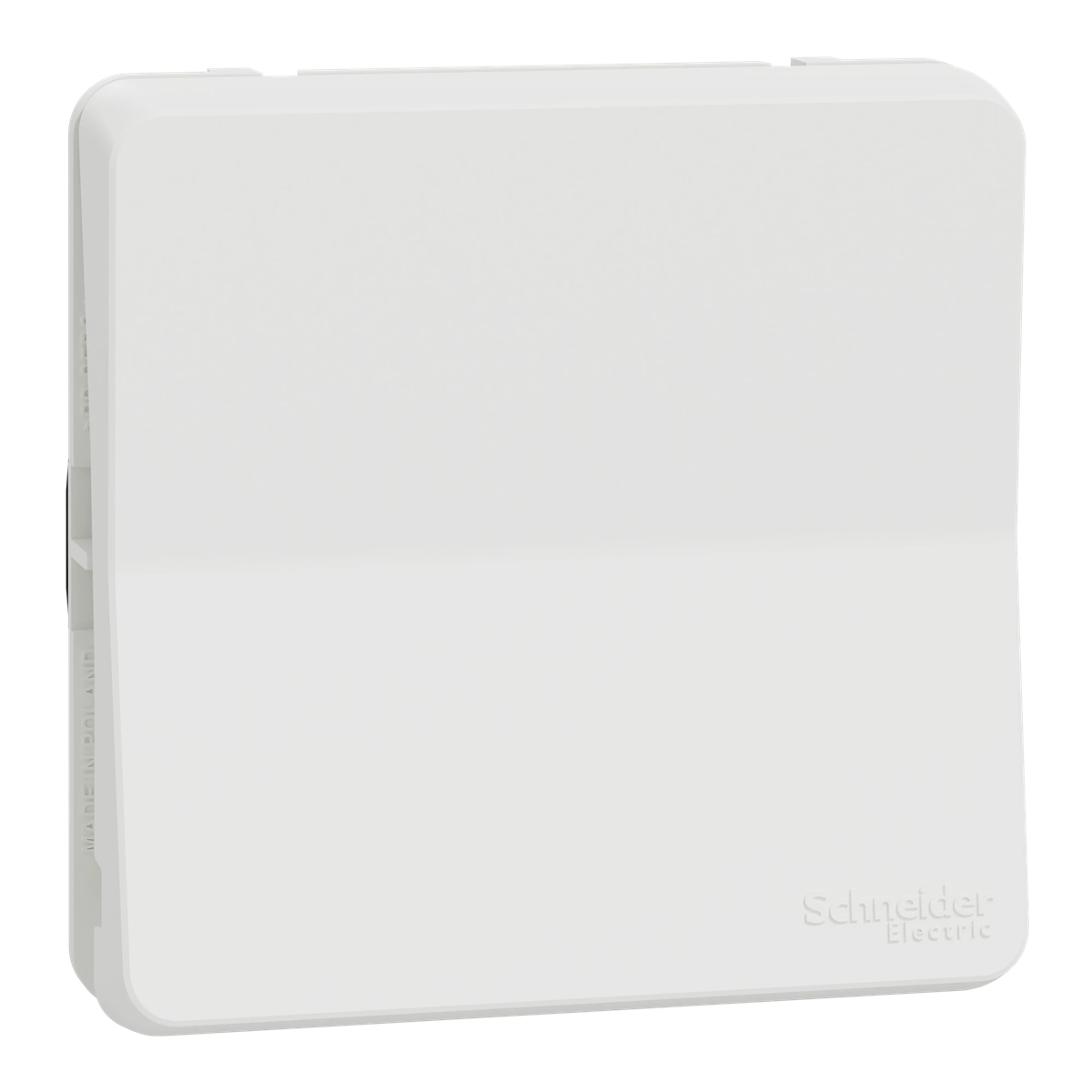

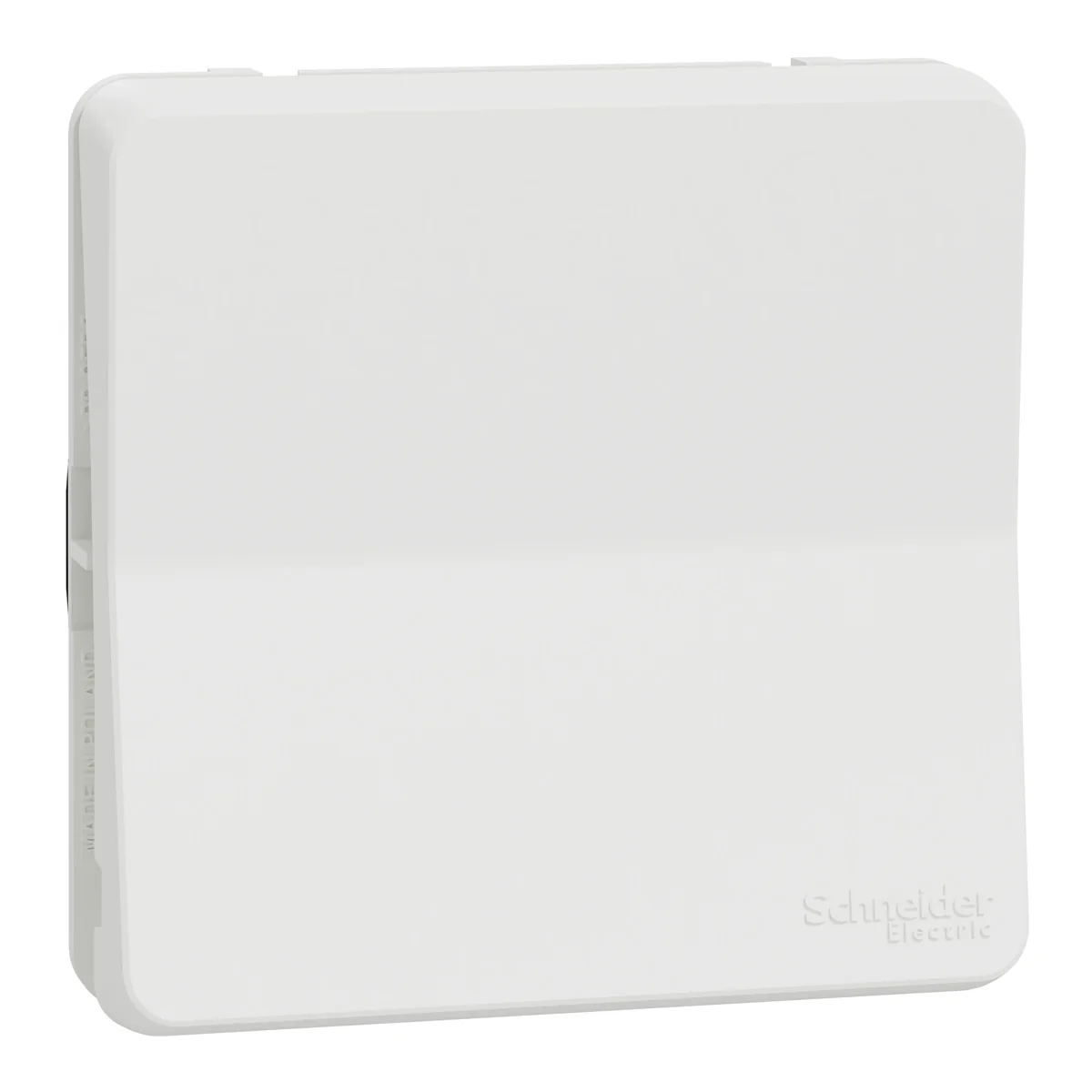

MUREVA STYL IP55 Stair switch mechanism white MUR39723

local index:
MMS057SCHN
Catalog No:
MUR39723
EAN code:
3606480789083
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 40
Number of keys: 1
Color: White
Price:
9,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Mureva Styl series, from Schneider Electric. The product catalog number is MUR39723.



SERIES DESCRIPTION

Waterproof accessories Mureva Style is designed for both surface and flush mounting. It is distinguished by a high degree of protection IP55. The stair switch characterizes the features of this unique series.

Technical data

  • Depth [mm]
    40
  • Color
    White
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    MUREVA STYLE
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Degree of mechanical protection
    IK08
  • Exact material
    ABS SEBS

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    40 mm
  • Built-in depth
    10 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9003
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    71 mm
  • Device depth
    60 mm
  • Min. depth of built-in installation box
    0 mm
