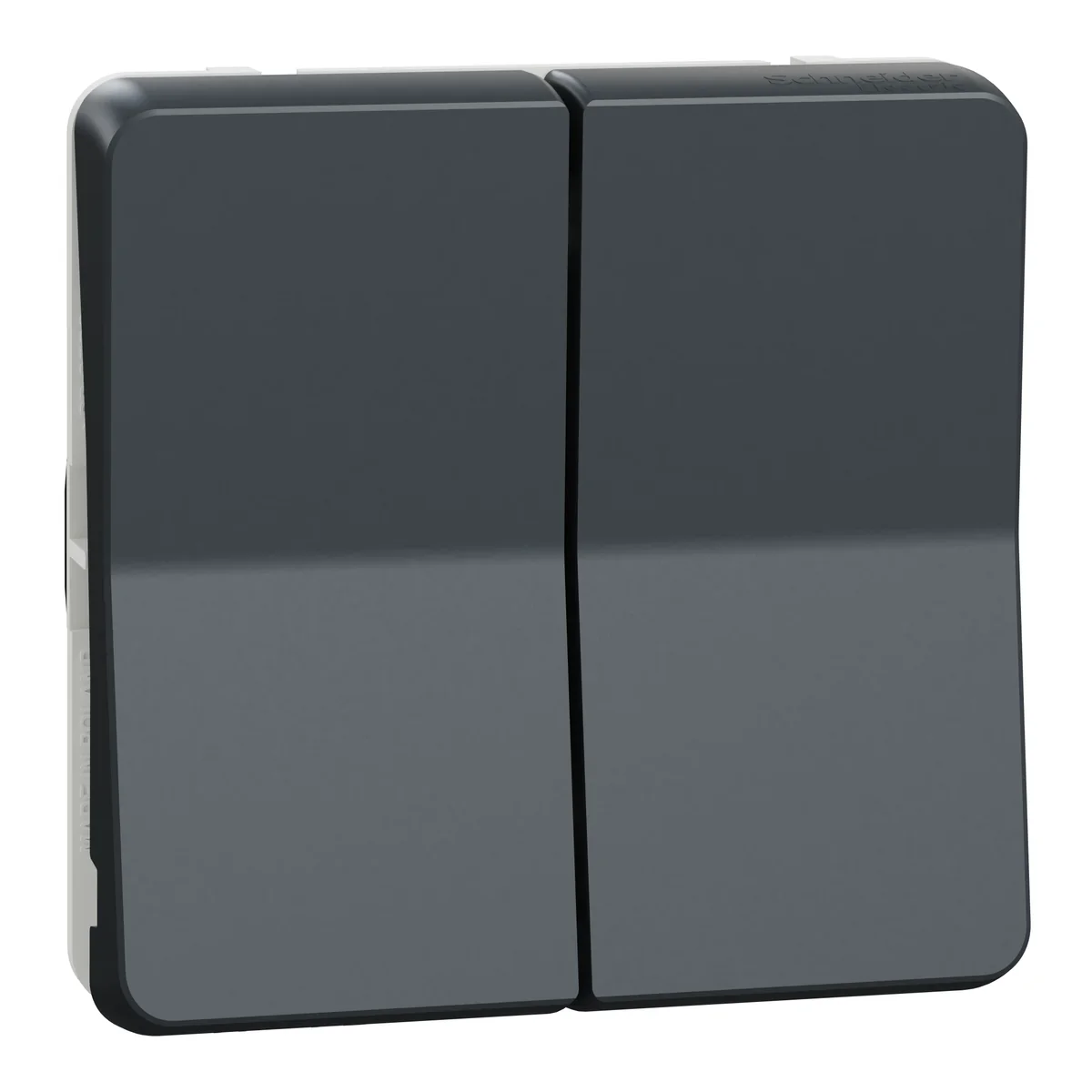

MUREVA STYL IP55 Double pushbutton mechanism anthracite MUR35326

local index:
MMZ095SCHN
Catalog number:
MUR35326
EAN code:
3606480789427
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 40
Number of keys: 2
Color: Graphite
Price:
88,88 zł
gross / pcs.
(including VAT 23%)
Out of stock
Add to inquiry
Print

Product description

Double normally open pushbutton from the  Mureva Style series, from the manufacturer Schneider Electric. The product catalog number is MUR35326.



SERIES DESCRIPTION

Waterproof accessories from the Mureva Style series are designed for both surface and flush mounting. It is distinguished by a high degree of protection IP55. Operating button characterizes the features of this unique series.

Technical data

  • Depth [mm]
    40
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    MUREVA STYLE
  • Width [mm]
    71
  • Version
    Confident
  • Accurate color
    Anthracite
  • Backlight
    NO
  • Exact material
    ABS SEBS
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Wire cross-section [mm²]
    1.5-2.5
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Method of operation
    Push button
  • Number of rockers
    2
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    Symbol "bell"
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Device height
    76 mm
  • Model
    Series push button
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Engage (snap)
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7016
  • Label space/information surface
    Yes
  • With signal lamp
    No
  • Nominal voltage
    250 V
  • Device width
    76 mm
  • Device depth
    60 mm
