MUREVA STYL IP55 Anthracite double stair switch MUR35022

local index:
MNS003SCHN
Catalog No:
MUR35022
EAN code:
3606480789236

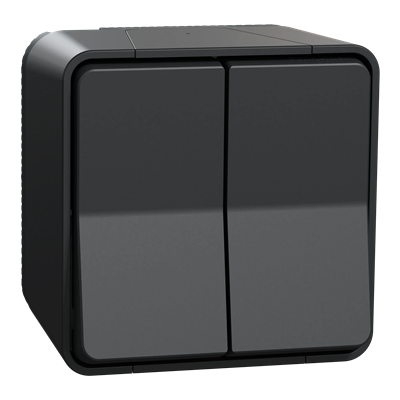

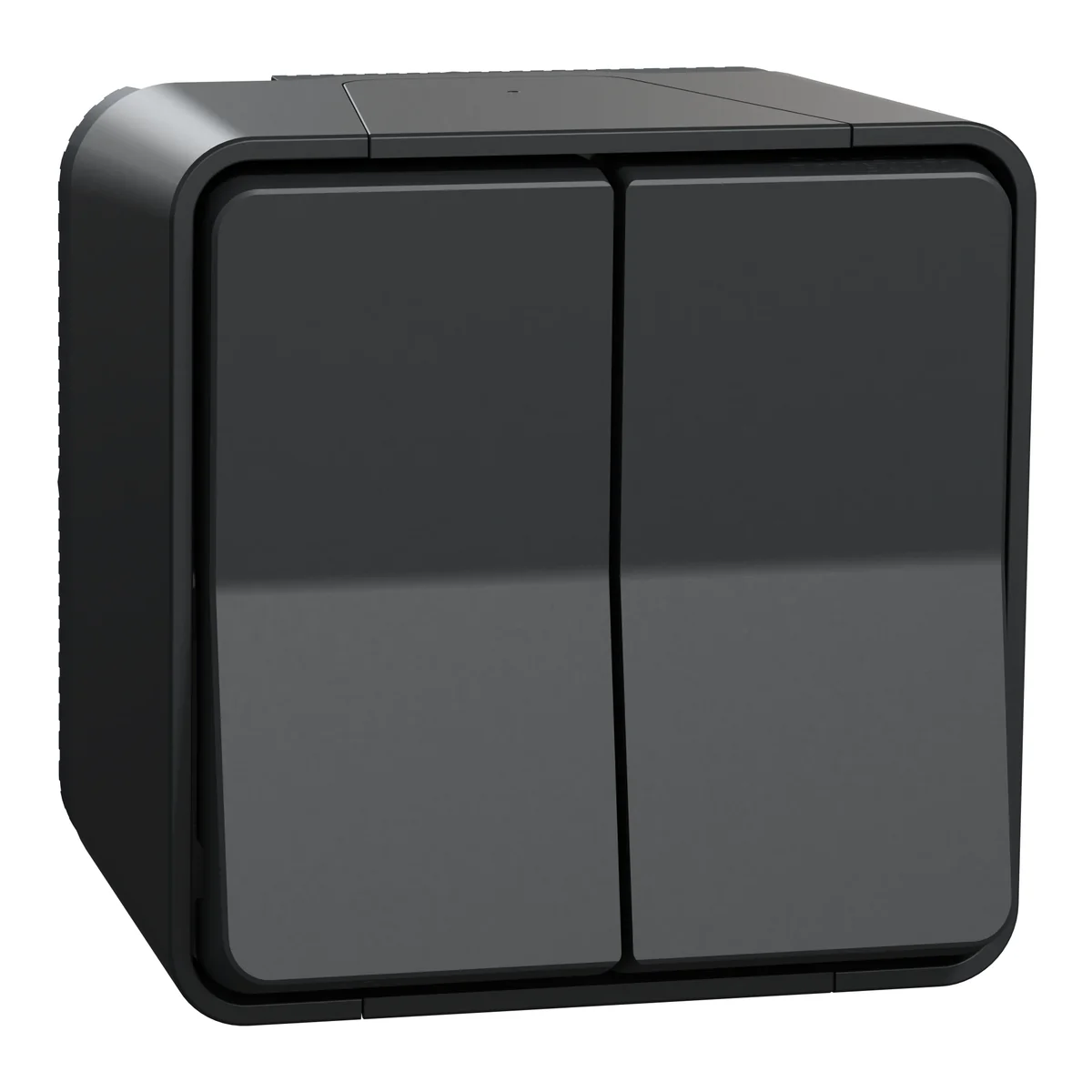

MUREVA STYL IP55 Anthracite double stair switch
MUREVA STYL IP55 Anthracite double stair switch

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 64
Number of keys: 2
Color: Graphite
See full description
Price:
18,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

Double stair switch from the Mureva Style series. The product catalog number is MUR35022.



SERIES DESCRIPTION

Mureva Styl is a series of ergonomic electrical equipment which, thanks to the IP55 protection level and IK08 mechanical strength, is waterproof and resistant to shocks, dirt, dust and solvents. The stair switch characterize the features of this unique series.

Technical data

  • Depth [mm]
    64
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    MUREVA STYLE
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    anthracite
  • Backlight
    NO
  • Exact material
    ABS SEBS
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Degree of mechanical protection
    IK08
  • Wire cross-section [mm²]
    1.5-2.5
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Series switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    64 mm
  • Built-in depth
    10 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    2
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    76 mm
  • Device depth
    60 mm
  • Min. depth of built-in installation box
    0 mm
