el12 Electrical equipment Fasteners Surface-mounted connectors
el12 Electrical equipment Fasteners Cross connectors

MUREVA STYL IP55 Anthracite cross connector MUR35023

local index:
MNK001SCHN
Catalog No:
MUR35023
EAN code:
3606480789205

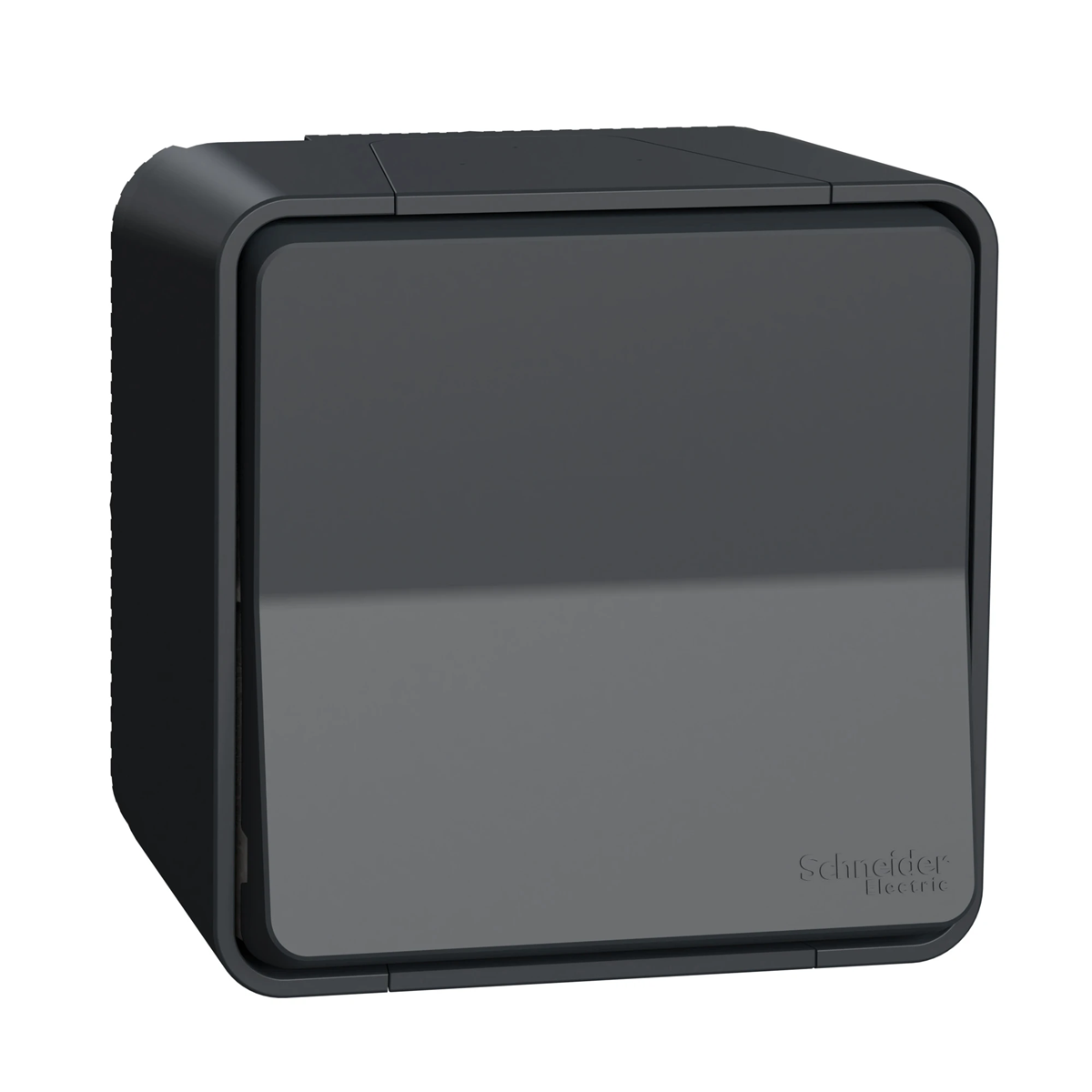

MUREVA STYL IP55 Anthracite cross connector
MUREVA STYL IP55 Anthracite cross connector

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 64
Number of keys: 1
Color: Graphite
See full description
Price:
21,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Surface-mounted cross connector from the Mureva Styl series, from Schneider Electric. The product catalog number is MUR35023.



SERIES DESCRIPTION

Mureva Style is a series of ergonomic electrical equipment, which thanks to the degree of protection IP55 and mechanical strength IK08 is waterproof and resistant to shocks, dirt, dust and solvents.

Technical data

  • Depth [mm]
    64
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    MUREVA STYLE
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    anthracite
  • Backlight
    NO
  • Exact material
    ABS SEBS Brass
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Degree of mechanical protection
    IK08
  • Wire cross-section [mm²]
    1.5-2.5
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    76 mm
  • Device depth
    60 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Surface mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • Illumination
    No
  • Suitable for degree of protection (IP)
    IP55
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    64 mm
  • Built-in depth
    10 mm
