Manufacturer: BERKER
Number of sockets: 2
Wave impedance [Ω]: 75
Shape: Square
Price:
31,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

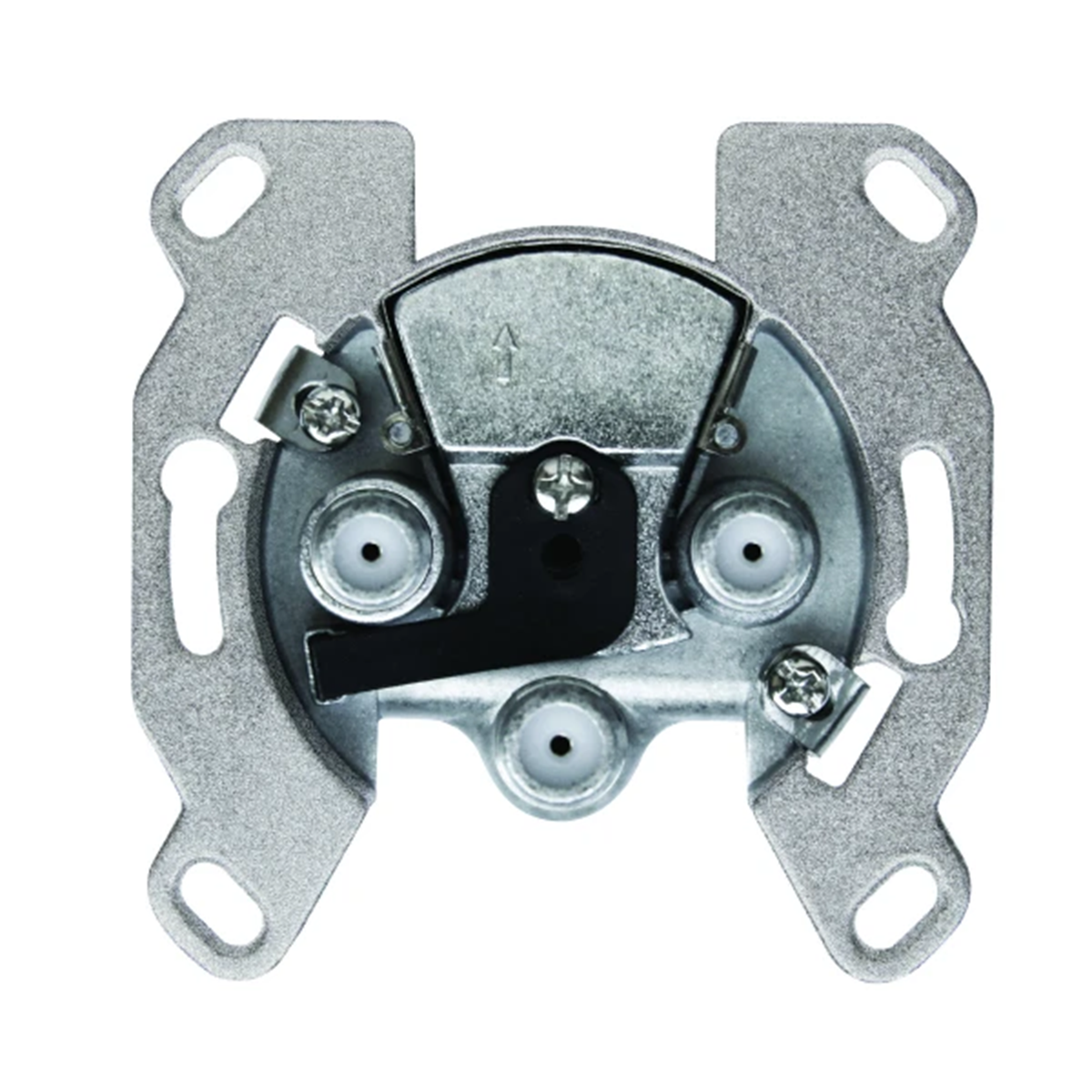

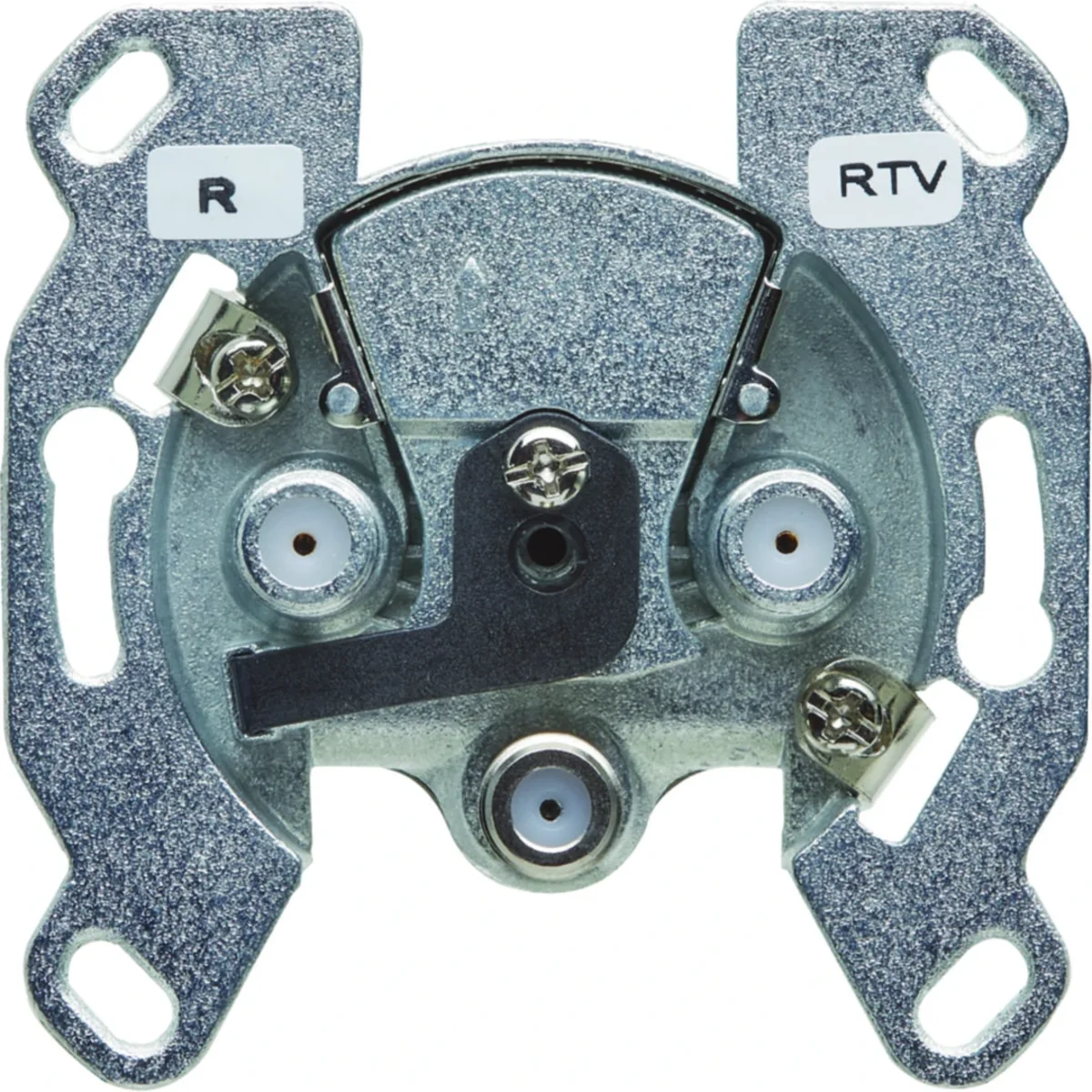

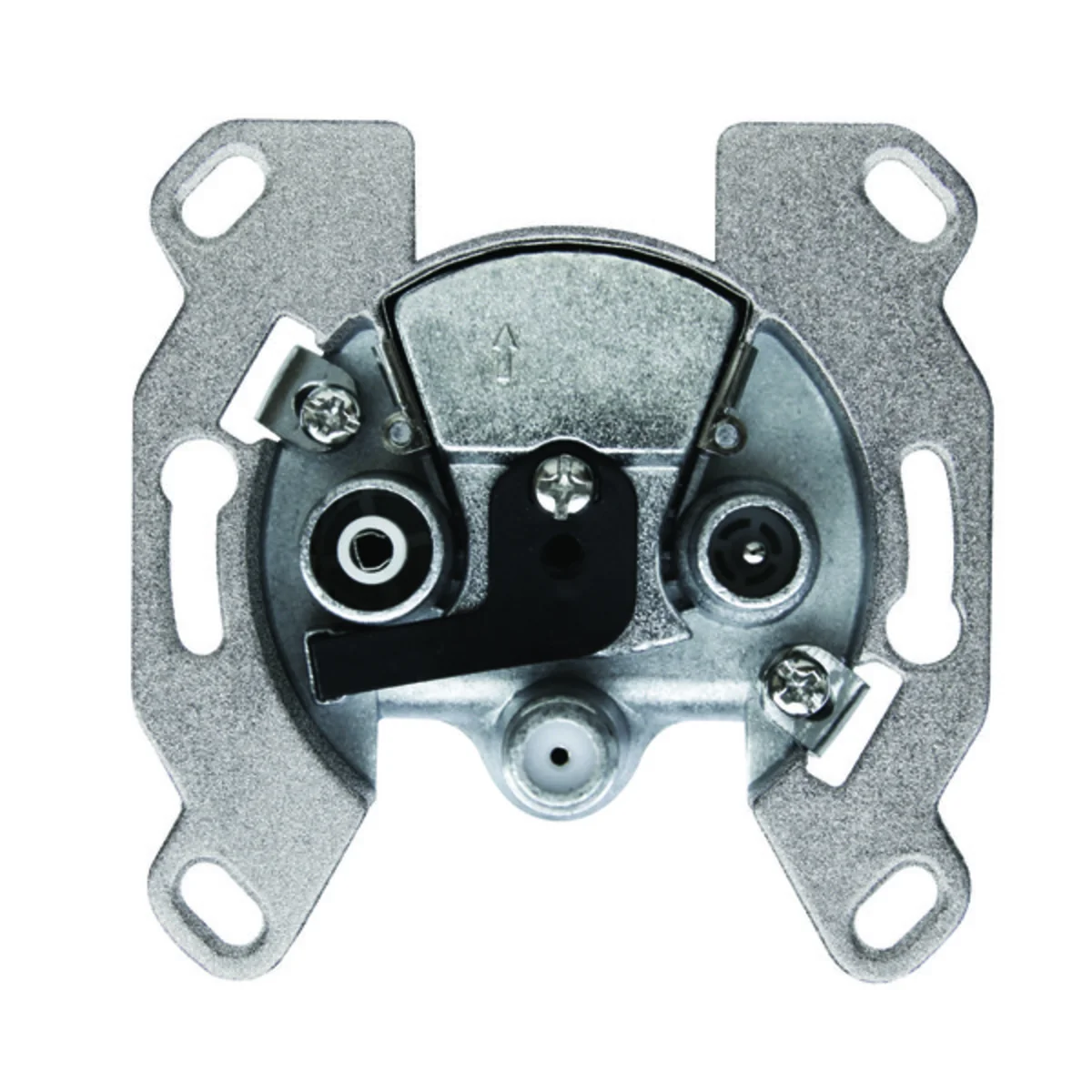

Mechanism of the antenna socket from the one.platform series, from the manufacturer Berker. The product part number is 53455131.



FEATURES

  • 3F DATA multimedia socket mechanism ( UPC).
  • For terrestrial reception.
  • For analog and digital transmission.
  • For order numbers  53 1203 .., 1201 .., 1202 .., 1203 .., 1064 ..
  • For collective cable TV installations using return channel for data transmission (internet, telephony  ;VoIP).
  • Three type F outputs (R, TV, DATA).
  • Dedicated to UPC installations.

Technical data

  • Number of sockets
    2
  • Shape
    Square
  • Type
    Antenna
  • Level of security
    IP20
  • Backlight
    NO
  • Variant
    R type F F-type TV DATE
  • For the frame system
    Yes
  • Wave impedance [Ω]
    75
  • Material
    Metal
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 68 pcs. 1632 pcs.
Weight (kg) 0,095 0,107 1,070 25,680
