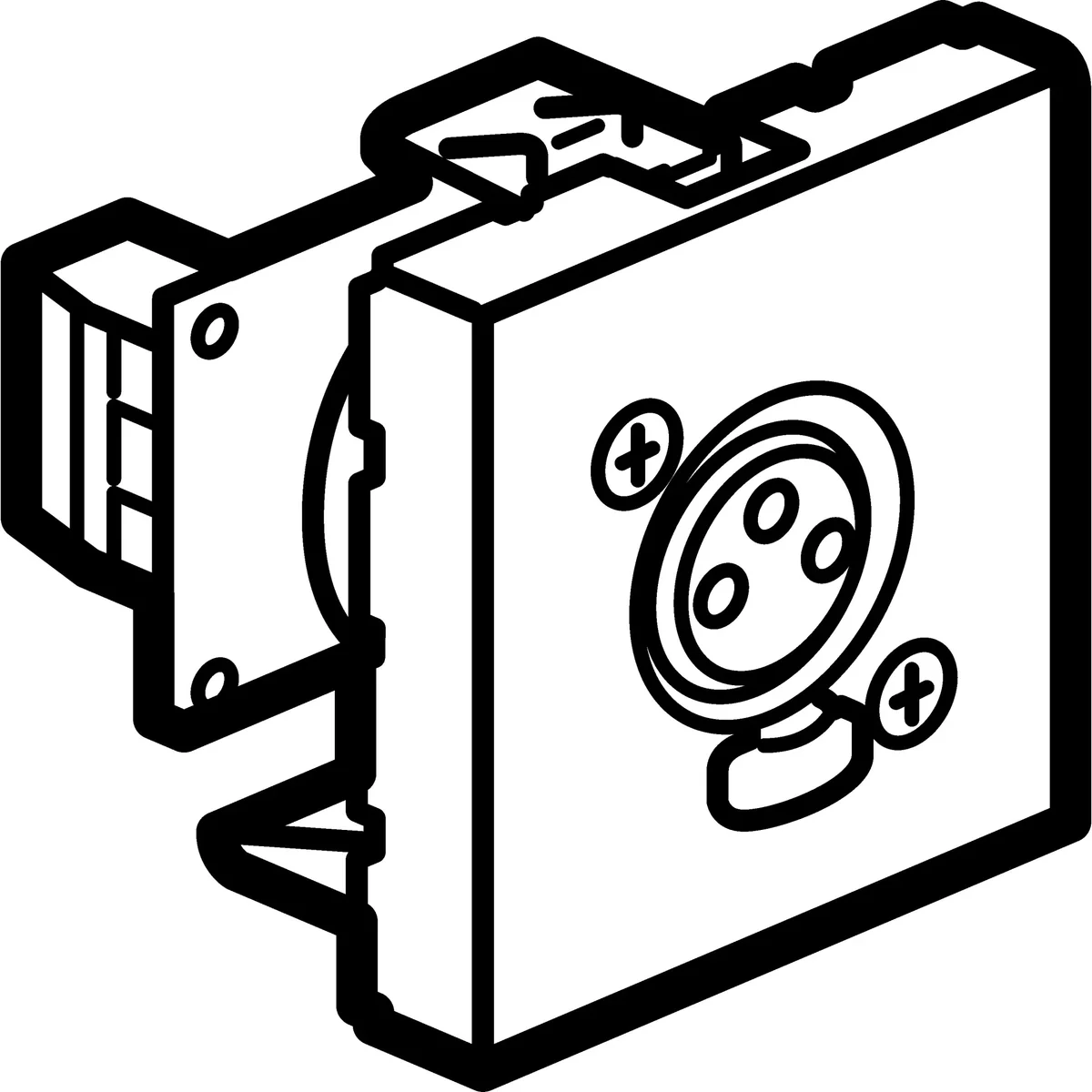

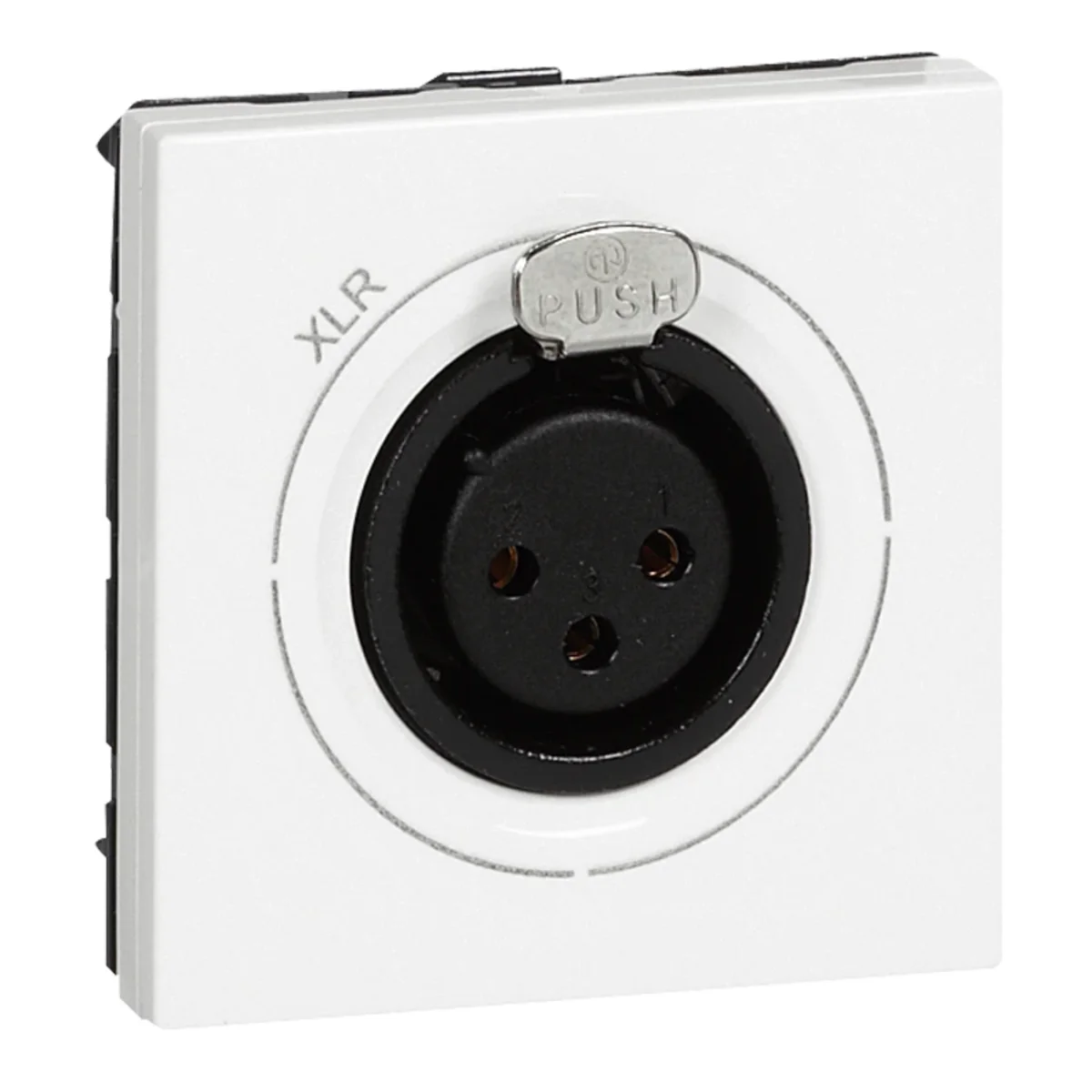

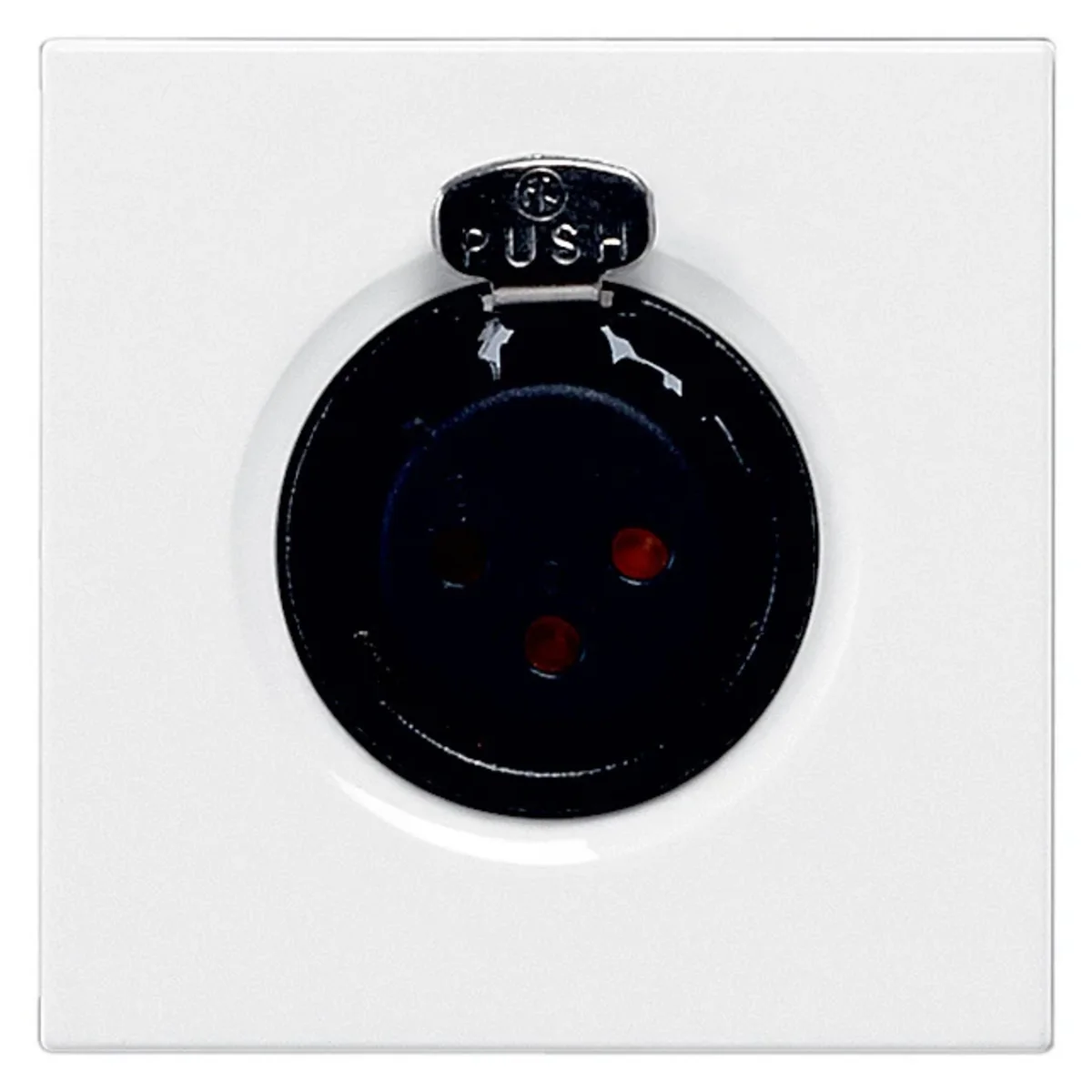

MOSAIC AUDIO SOCKET XLR-3 - 2 MODULES WHITE FEMALE NEUTRIK 078755

local index:
MGG004LEGR
Catalog number:
078755
EAN code:
3245060787554
Manufacturer: LEGRAND
Price:
387,70 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Modular device for domestic switching devices
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Transparent
    No
  • Number of modules (module system)
    2
  • Shielded buses
    No
  • Luster terminal
    No
  • Impact strength
    IK04
  • Device height
    45 mm
  • Utilization
    XLR
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Type of fastening
    Engage (snap)
  • Suitable for number of connectors
    1
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP40
  • Device width
    45 mm
  • Min. depth of built-in installation box
    40 mm

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 1 pcs. 20 pcs. 240 pcs.
Weight (kg) 0,062 1,540 18,480
Volume (m3) 0,001 0,019 0,456
Width (m) 0,094 0,263 1,200
Length (m) 0,072 0,215 0,380
Depth (m) 0,100 0,328 1,000
