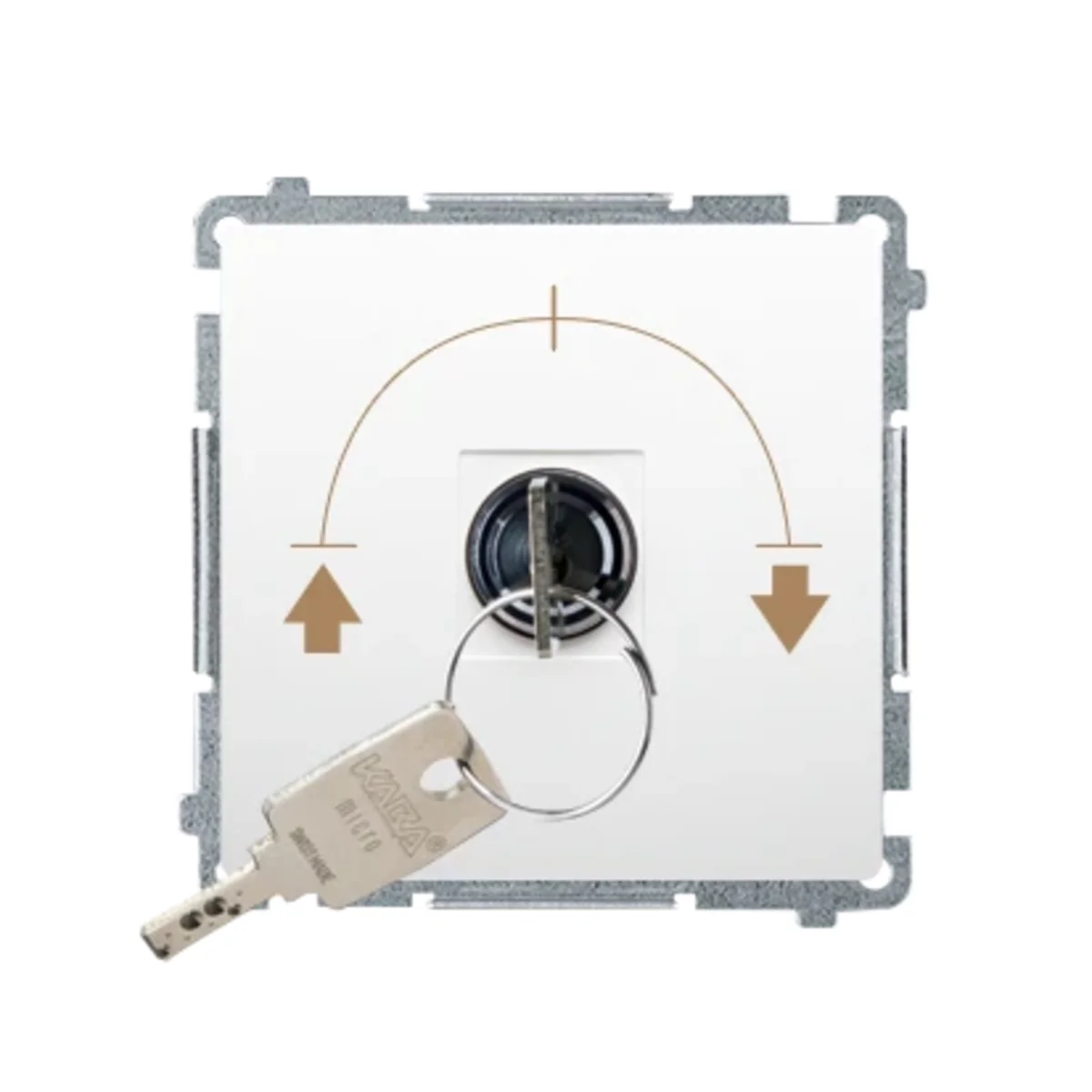

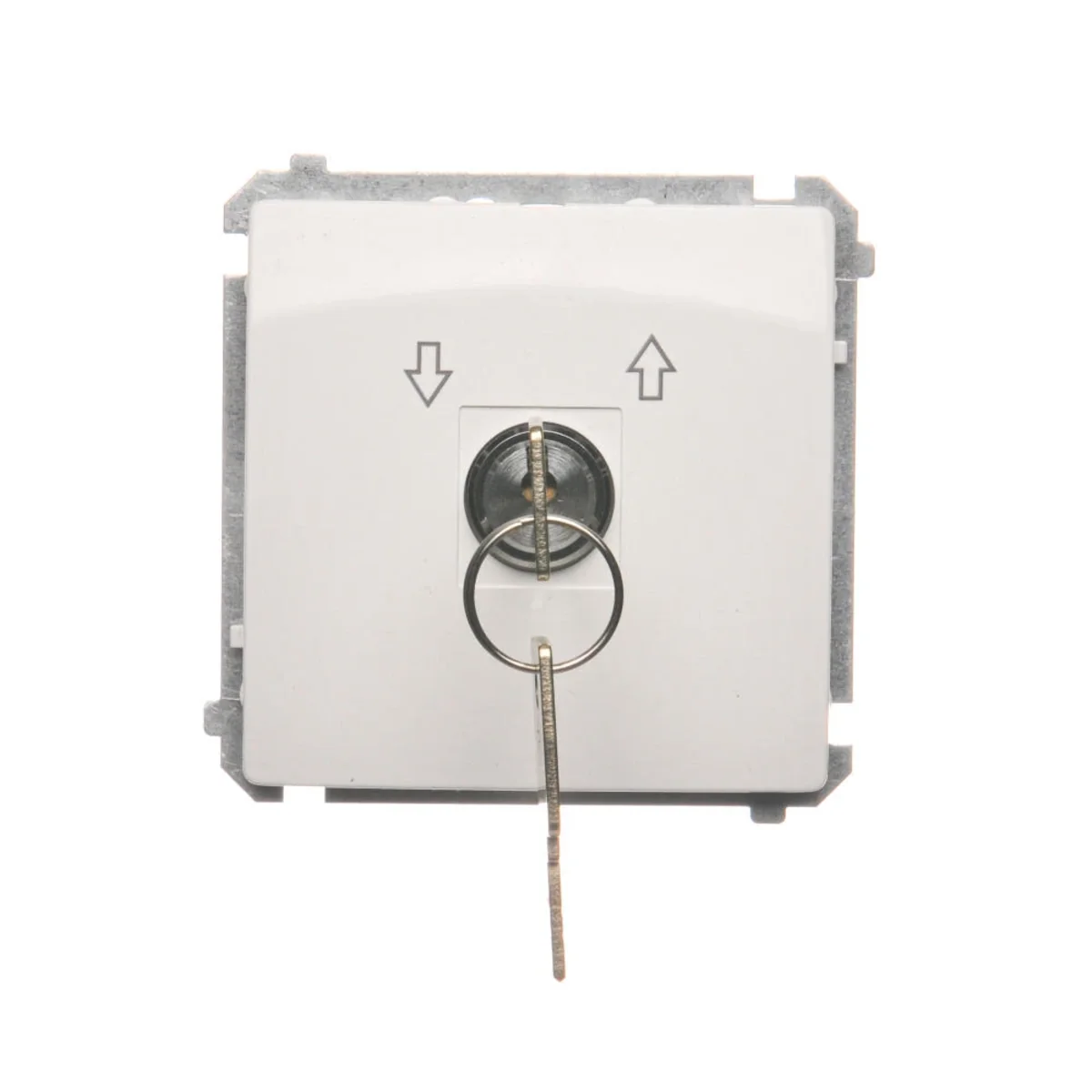

Momentary shutter switch with key, 3-position, "I-0-II" 2 contacts N/O white BMPZK.01/11
local index:
MMO018KONT
Catalog No:
BMPZK.01/11
EAN code:
5902787820510
Price:
98,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Momentary shutter key switch from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is BMPZK.01/11.
FEATURES
- The key can be removed only in 0 position.
- 2 keys are included with the product.
- For soldering.
SERIES DESCRIPTION
Simon Basic is a series of electrical accessories, which is based on classic appearance and functionality. The shutter connector characterizes the features of this unique series.
Technical data
-
Halogen freeYes
-
Number of keyskey
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]75
-
Surface finishShiny
-
Mounting depth [mm]31
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Depth [mm]47
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]5
-
FamilySIMON BASIC
-
Width [mm]75
-
VersionSingle
-
Surface protectionNatural
-
BacklightNO
-
VariantThree-position normally open
-
Exact materialPC
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
-
Method of operationKey
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
Nominal voltage250 V
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,096 | 0,096 | 1,063 |
| Width (m) | 0,075 | 0,085 | 0,190 |
| Length (m) | 0,075 | 0,055 | 0,290 |
| Depth (m) | 0,047 | 0,115 | 0,100 |
