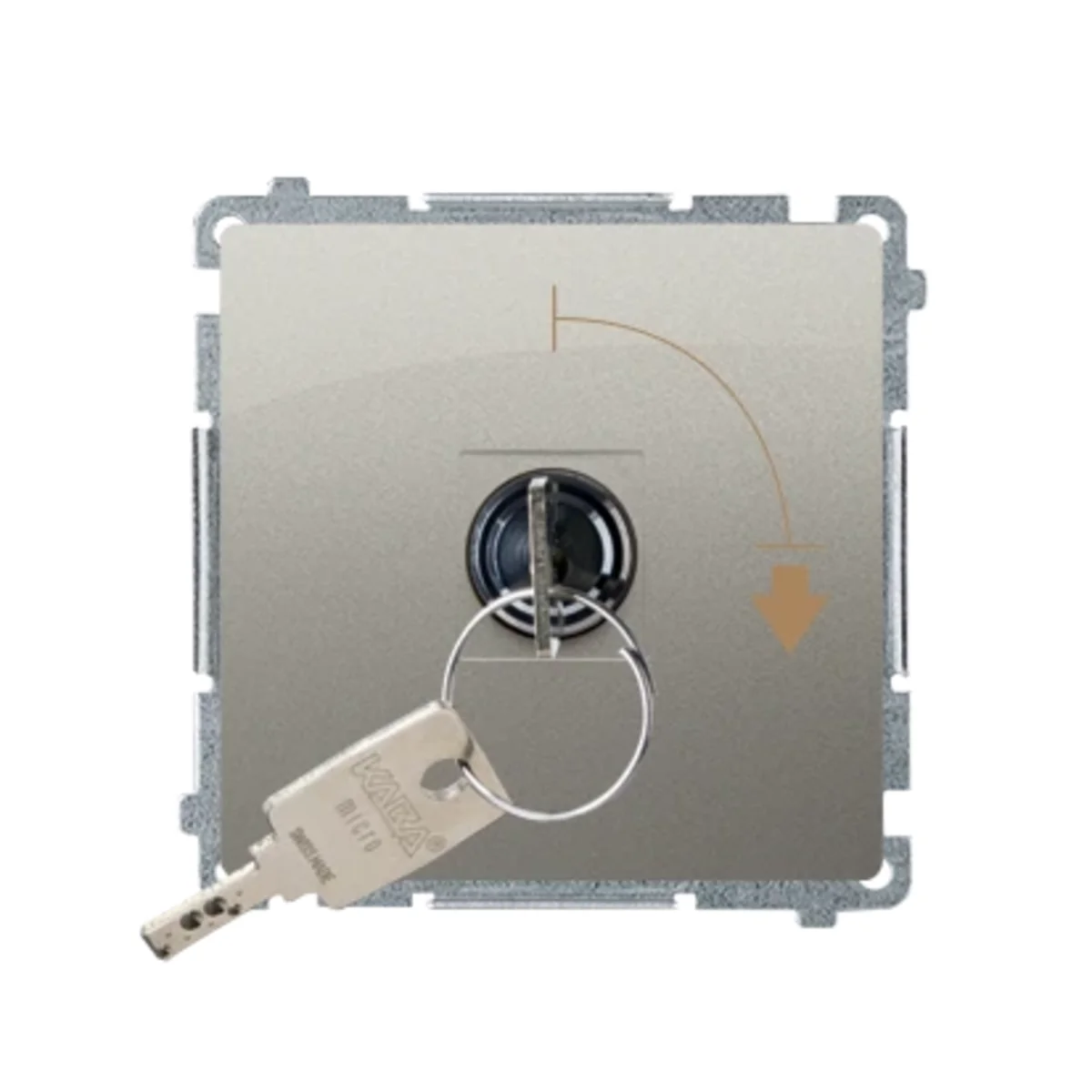

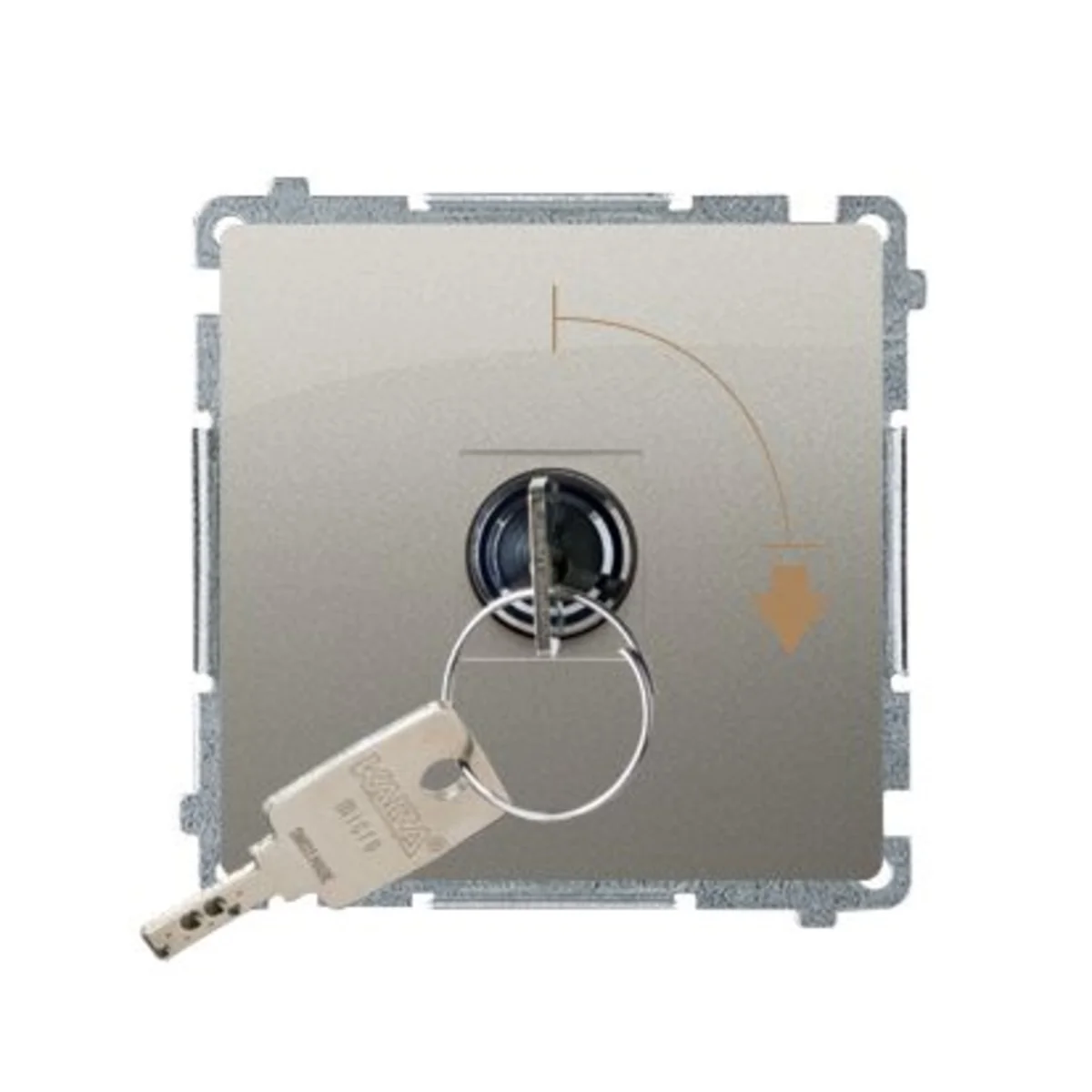

Momentary key switch (push-button) 2-position "0-I" 5A 250V for soldering satin metallized BMP1K.01/29

Indice locale:
MMZ114KONT
Numero di catalogo:
BMP1K.01/29
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Prezzo:
616,35 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Su ordinazione
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Momentary key switch (push button) from the Simon Basic series, from the manufacturer Contact Simon. Product catalog number it's BMP1K.01/29. Satin metallised.



FEATURES

  • 2 position “0-I”.
  • For soldering.
  • The key can only be removed in the 0 position.
  • The product comes with 2 pieces of keysów .



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, whichó ra will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Dati tecnici

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    PC
  • PKWIU
    27.33.11.0
  • Depth [mm]
    47
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • Connection type
    For soldering
