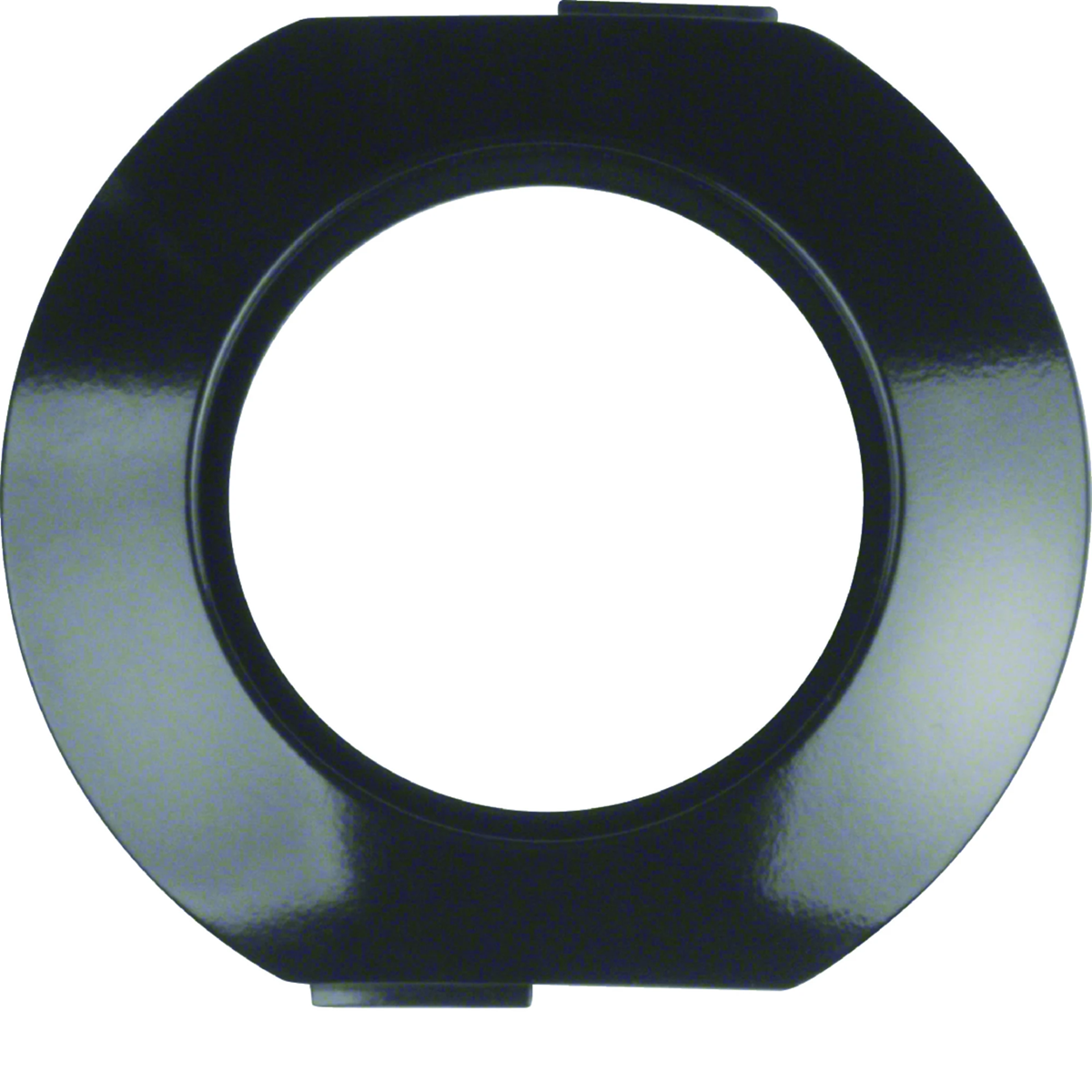

Middle frame black 138151
local index:
MAR419BERK
Catalog No:
138151
EAN code:
4011334249160
Price:
14,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Middle framefrom 1930 series. The product catalog number is 138151.
- For combined mounting, clamp fixing.
- Combinations can only be installed in single multifunctional boxes.
SERIES DESCRIPTION
The 1930 series was created in accordance with the Bauhaus philosophy.
Technical data
-
Depth [mm]9
-
ColorBlack
-
MaterialPlastic
-
Family1930
-
Width [mm]80
-
Surface protectionNatural
-
Mounting directionUniversal
-
Exact materialDuroplastic
-
PKWIU27.12.40.0
-
Number of modules1
-
ShapeRound
-
TypeStandard
-
Level of securityIP20
-
Height [mm]71
-
Surface finishShiny
-
For modular equipmentNot applicable
-
The shape of the matching accessoryRound
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9005
-
With hinged lidNo
-
Impact strengthIK02
-
Width80 mm
-
Depth9 mm
-
Built-in height0 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityDuroplast
-
Surface protectionUntreated
-
ColourBlack
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height71 mm
-
Built-in width0 mm
-
Diameter bore hole (opening)45 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Pakiet | Paleta | Karton | |
| Quantity | 220 pcs. | 7040 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 4,306 | 157,776 | 0,014 | 0,179 |
| Width (m) | 0,300 | 0,800 | 0,074 | 0,098 |
| Length (m) | 0,225 | 1,050 | 0,009 | 0,089 |
| Depth (m) | 0,400 | 1,200 | 0,080 | 0,105 |
