el12 Electrical equipment Fasteners Concealed connectors LUMINA White cross connector
el12 Electrical equipment Fasteners Cross connectors LUMINA White cross connector

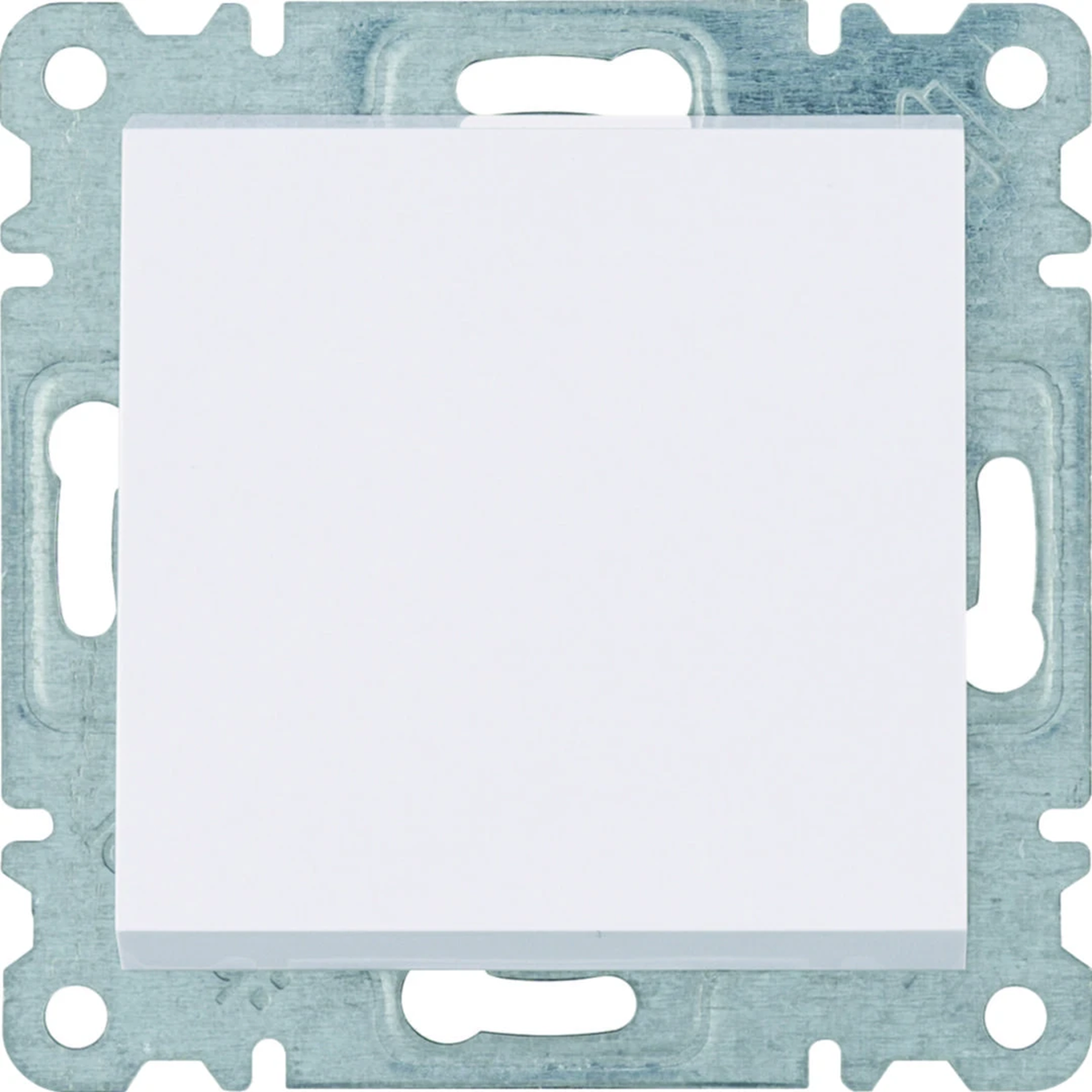

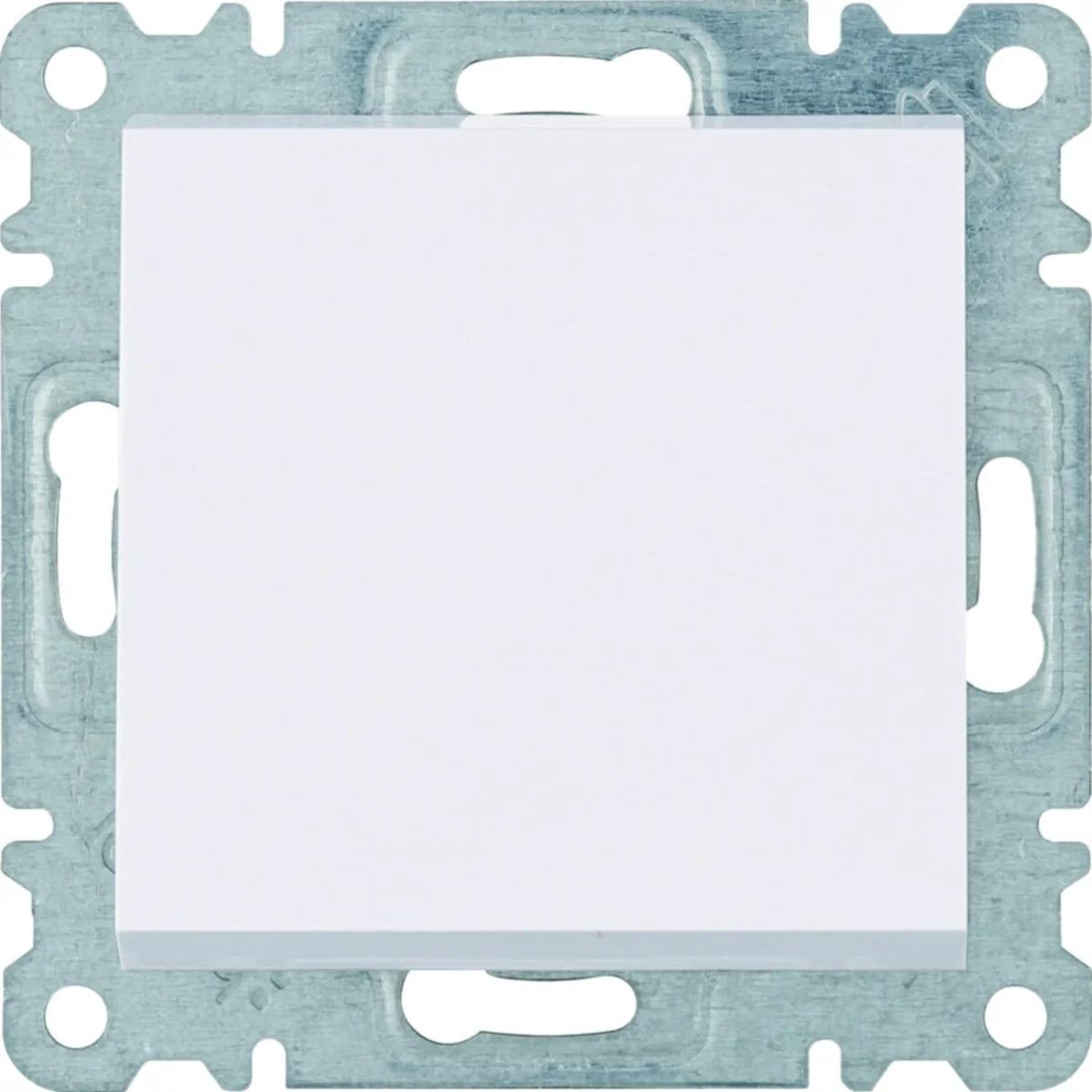

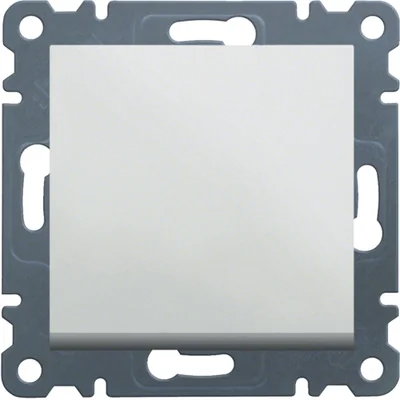

LUMINA White cross connector
LUMINA White cross connector

Click on the photo to enlarge

LUMINA White cross connector
LUMINA White cross connector
HAGER

LUMINA White cross connector WL0030

local index:
MMK003HAGE
Catalog No:
WL0030
EAN code:
8694407000194
Price:
3,44 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 93 pcs.
Delivery:
From 3,45 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Cross connectorfrom the lumina soul series, from Hager. The product catalog number is WL0030.



FEATURES

  • For screw connection.
    • < li>Quick Connect.
Print the product sheet Report an error

Technical data

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    LUMINA SOUL
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • For the frame system
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • Exact material
    Material Metal

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9016
  • Illumination
    Optional
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    71 mm
  • Built-in depth
    26 mm
  • Method of operation
    Rocker/button
  • Push button switch
    no
  • Mounting method
    Flush-mounted
  • With mounting plate
    yes
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    35 mm
