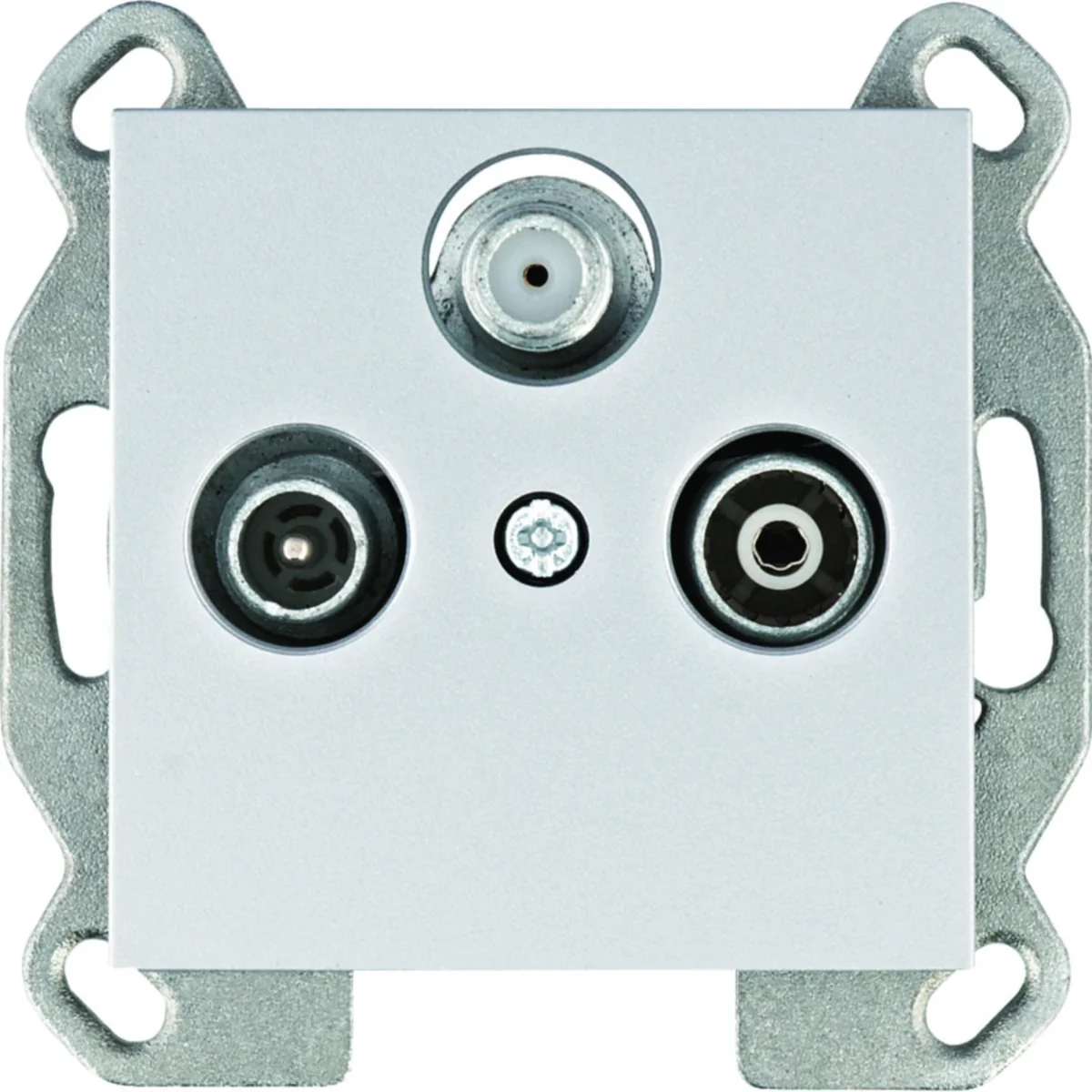

LUMINA Terminal RTV-SAT silver socket WL3112

local index:
MEA023HAGE
Catalog No:
WL3112
EAN code:
8694407003898
Manufacturer: HAGER
Number of sockets: 3
Wave impedance [Ω]: 75
Color: Silver
Price:
18,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT end socket from the lumina soul series, which is a solid foundation for the installation and a proposal for those who value simple solutions. It provides full functionality, and at the same time is a subtle addition to any interior. Product catalog number is WL3112.

  • With expansion lugs, for screw connection.
  • Bandwidth (bandwidth): 5 - 2300 MHz.
  • Broadband technology: 5…2200MHz.

Technical data

  • Number of sockets
    3
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Surface
    Matt
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Version
    through
  • Frequency Range [MHz]
    5-2300
  • Accurate color
    Anodized aluminum
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Fixing
    Expanding claws
  • Overprint
    NO
  • Type
    Antenna
  • Level of security
    IP20
  • Clamp type
    Threaded
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • F-type input
    NO
  • Exact material
    Material Metal

Other technical data

  • Model
    End socket
  • Cover
    Central cover plate
  • Tap loss at 2150 MHz
    2.6 dB
  • Suitable for cable modem
    Yes
  • Frequency
    5 ... 2300 MHz
  • Colour
    Silver
  • Surface protection
    Lacquered
  • Material
    Other
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    2 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Surface finishing
    Matt
  • Material quality
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,101 1,236 12,360 294,800
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,040 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
