LUMINA Socket RJ11/12 + RJ45 silver WL2212

local index:
MEI018HAGE
Catalog No:
WL2212
EAN code:
8694407003775
Manufacturer: HAGER
Category: 5e
Color: Silver
Shape: Square
Price:
22,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

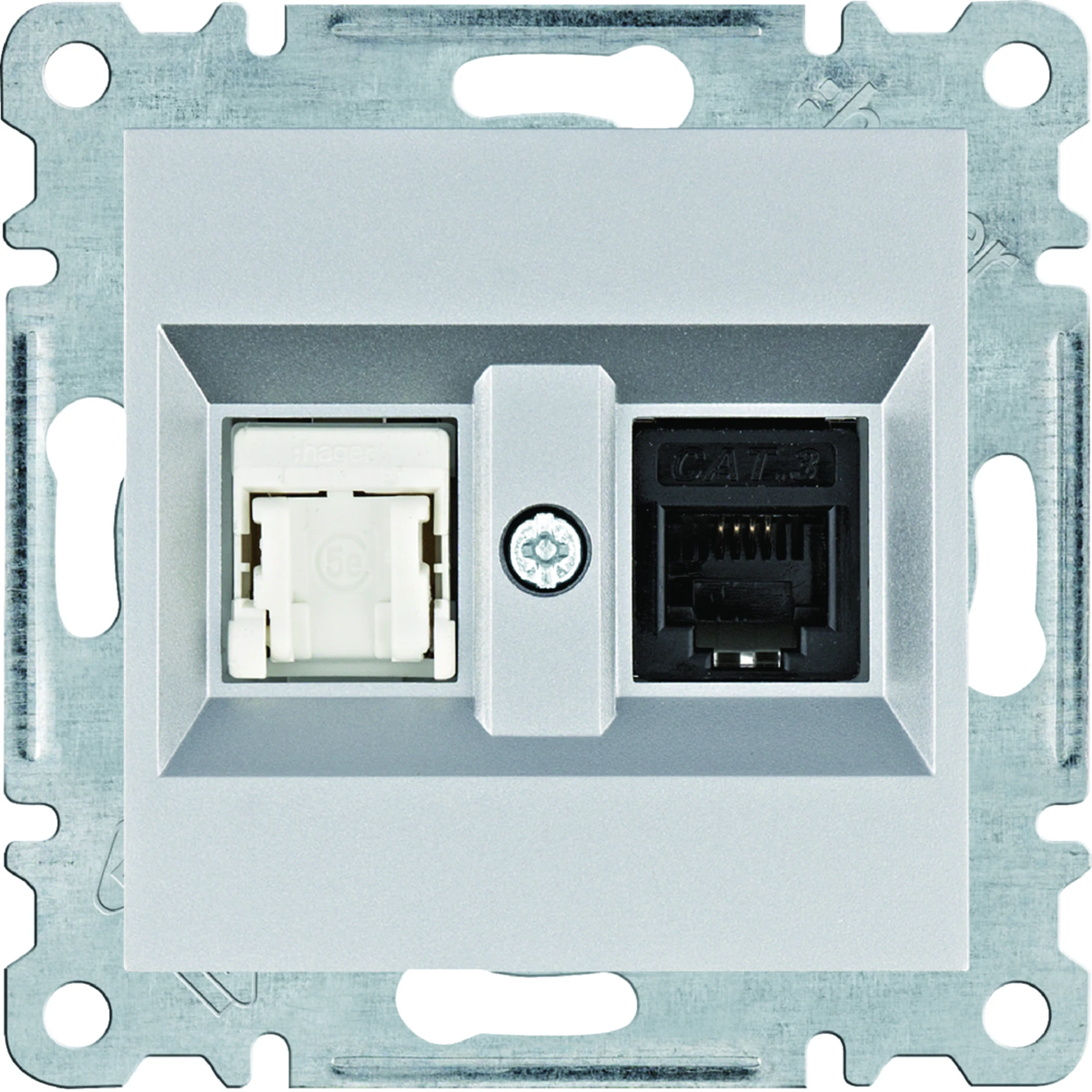

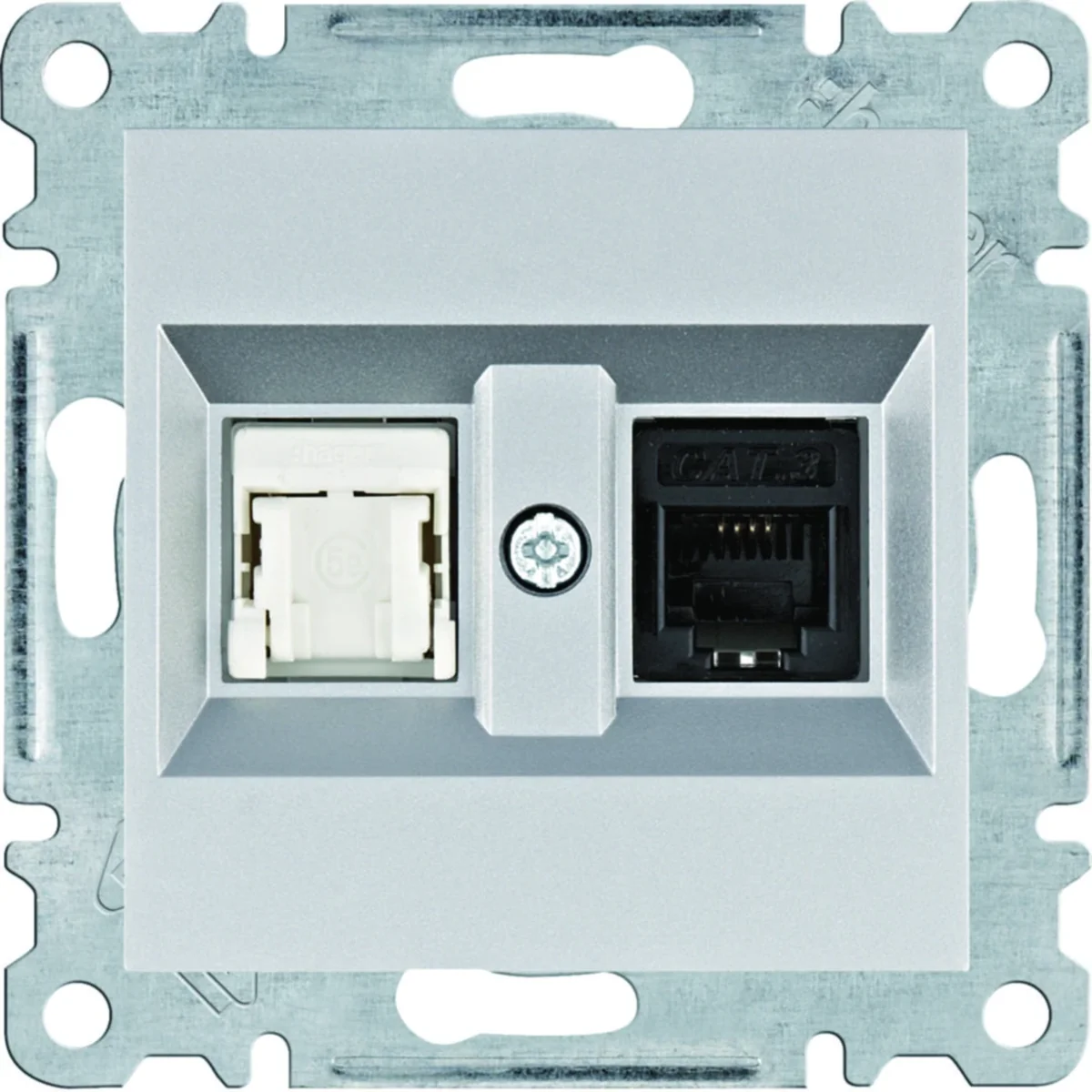

Computer socket RJ45 + telephone RJ11/RJ12, lumina intense series.

  • Assembly: with spreader legs, for screw connection.



SERIES DESCRIPTION

Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

  • Category
    5e
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Surface finish
    matte
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Dust cover
    Yes
  • Exact material
    Material Metal
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    LUMINA INTENSE
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    RJ11 RJ12
  • PKWIU
    27.33.13.0

Other technical data

  • Surface mounting
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    2
  • Colour
    Silver
  • Connection type
    Insulation displacement connector
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    71 mm
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with central cover plate
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    9006
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    Yes
  • Outlet direction
    Straight
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    39 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,063 0,834 8,728 196,566
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,033 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
