HAGER

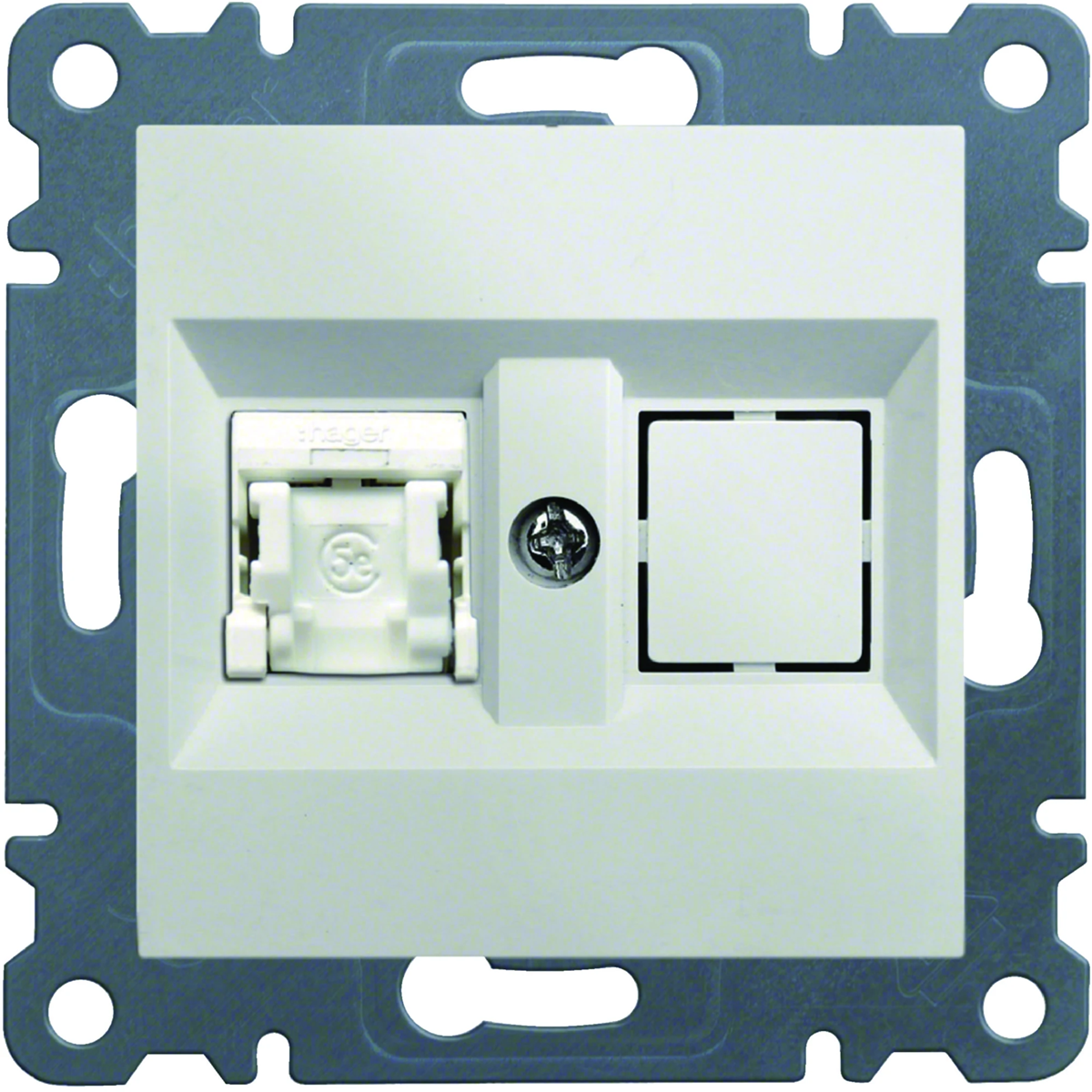

LUMINA Single computer socket RJ45 cat.6 UTP white WL2150

local index:
MEI021HAGE
Catalog No:
WL2150
EAN code:
8694407001146
Price:
14,87 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Computer socket single RJ45 category 6 UTP, from the lumina soul series, which is a solid foundation for installation and a proposal for those who value simple solutions. It provides full functionality, while being a subtle addition to any interior.

  • Frequency bandwidth: max. 250MHz.
  • Ø wire: 0.5…0.65 mm (AWG 24-22).
  • Transition resistance: < 20mΩ.

Technical data

  • Category
    6
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Dust cover
    Yes
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    LUMINA SOUL
  • Width [mm]
    71
  • Version
    UTP
  • Surface finish
    Shiny
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Exact material
    Material Metal

Other technical data

  • Surface mounting
    no
  • Type of fastening
    Screwing
  • With buses/couplings
    yes
  • Category
    6
  • RAL-number
    9016
  • Shielded buses
    no
  • Separate earthing connection
    no
  • Compatible with third-party covers
    yes
  • Outlet direction
    Straight
  • Mechanical coding
    no
  • Device width
    71 mm
  • Device depth
    32 mm
  • Floor box/subfloor mounted
    no
  • Assembly arrangement
    Basic element with central cover plate
  • Suitable for number of connectors
    1
  • Colour
    White
  • Connection type
    Insulation displacement connector
  • Shielded housing
    no
  • With label space
    no
  • Separate strain relief
    no
  • Degree of protection (IP)
    IP20
  • Colour coding
    yes
  • Device height
    71 mm
