LUMINA Single computer socket RJ45 cat.6 UTP silver WL2152
local index:
MEI008HAGE
Catalog No:
WL2152
EAN code:
8694407003690
Price:
16,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

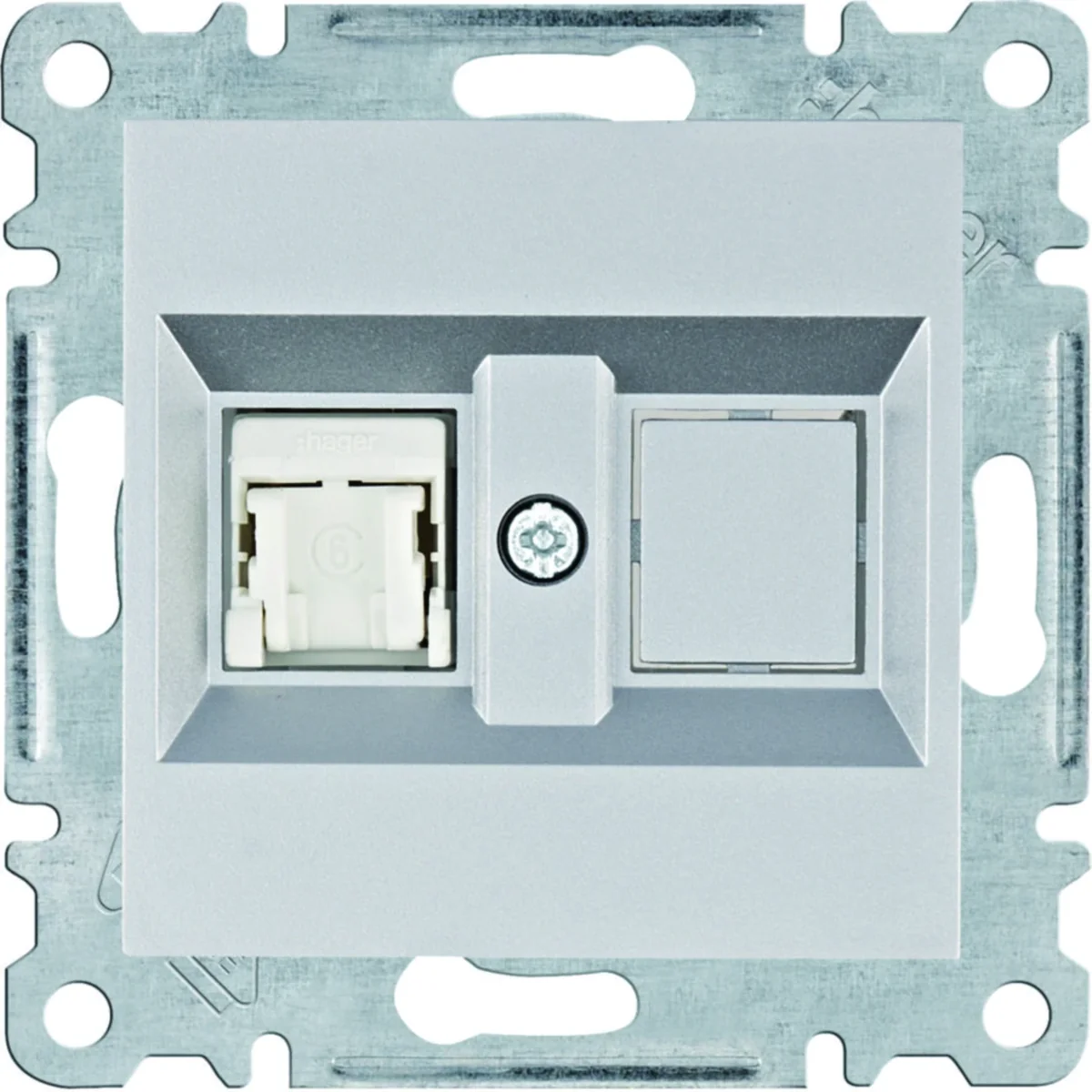

Computer socket single RJ45 category 6 UTP, lumina intense series.
- Bandwidth: max. 250MHz.
- Ø wire: 0.5…0.65 mm (AWG 24-22).
- Transition resistance: < 20 mΩ.
SERIES DESCRIPTION
Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.
Technical data
-
Category6
-
ShapeSquare
-
FixingExpanding claws
-
TypeInternet
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Surface finishmatte
-
Terminal typeThreadless
-
For the frame systemYes
-
Dust coverYes
-
PKWIU27.33.13.0
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
FamilyLUMINA INTENSE
-
Width [mm]71
-
VersionUTP
-
Surface protectionvarnishing
-
Accurate colorAnodized aluminum
-
VariantRJ45 (twisted pair)
-
Number of internet sockets1
-
Exact materialMaterial Metal
Other technical data
-
Surface mountingNo
-
Type of fasteningScrewing
-
With buses/couplingsYes
-
ColourSilver
-
Connection typeInsulation displacement connector
-
Shielded housingNo
-
With label spaceNo
-
Separate strain reliefNo
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height71 mm
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with central cover plate
-
Category6
-
RAL-number9006
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversYes
-
Outlet directionStraight
-
Mechanical codingNo
-
Device width71 mm
-
Device depth32 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,059 | 0,745 | 8,025 | 185,500 |
| Width (m) | 0,071 | 0,190 | 0,400 | 0,800 |
| Length (m) | 0,033 | 0,095 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,215 | 0,470 | 1,200 |
