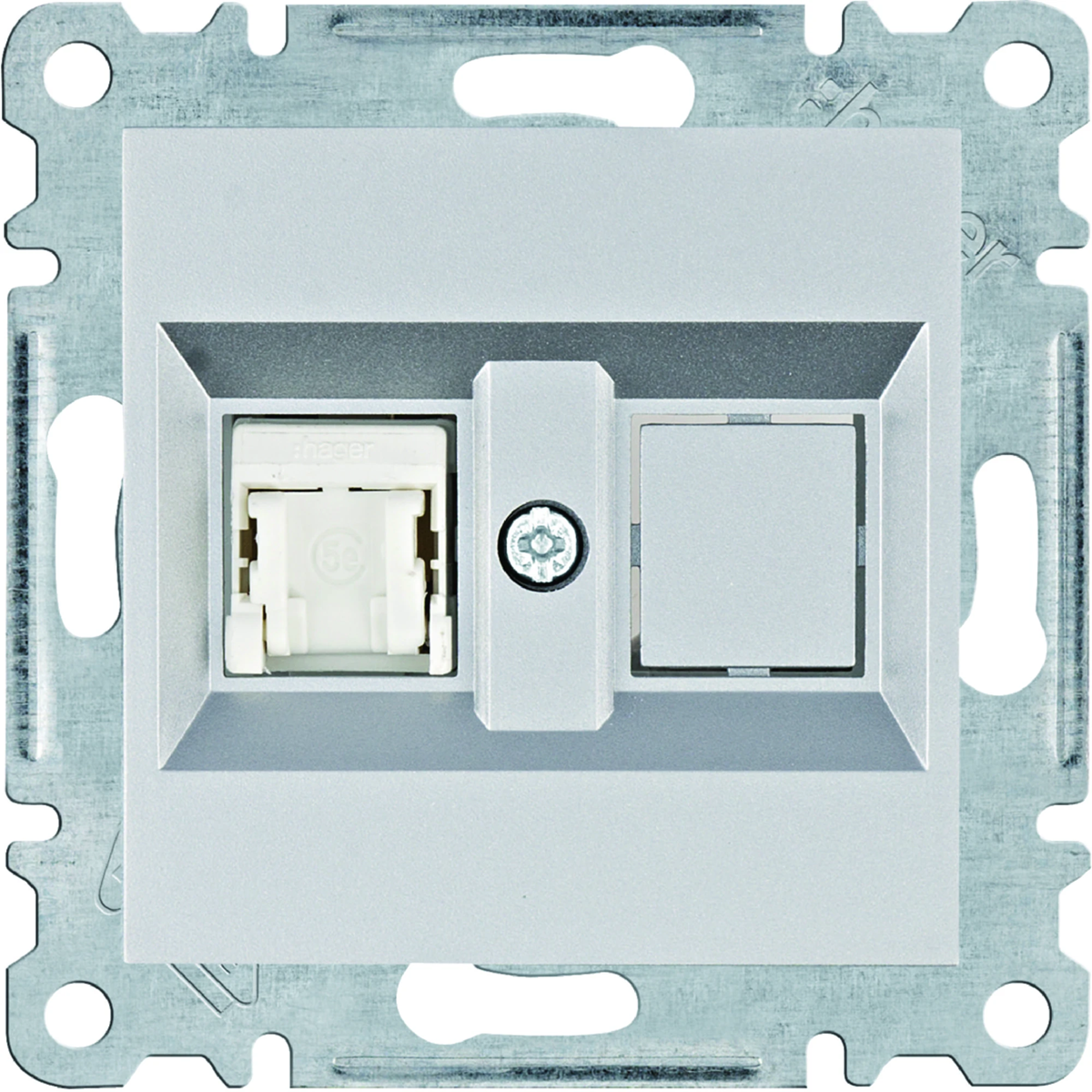

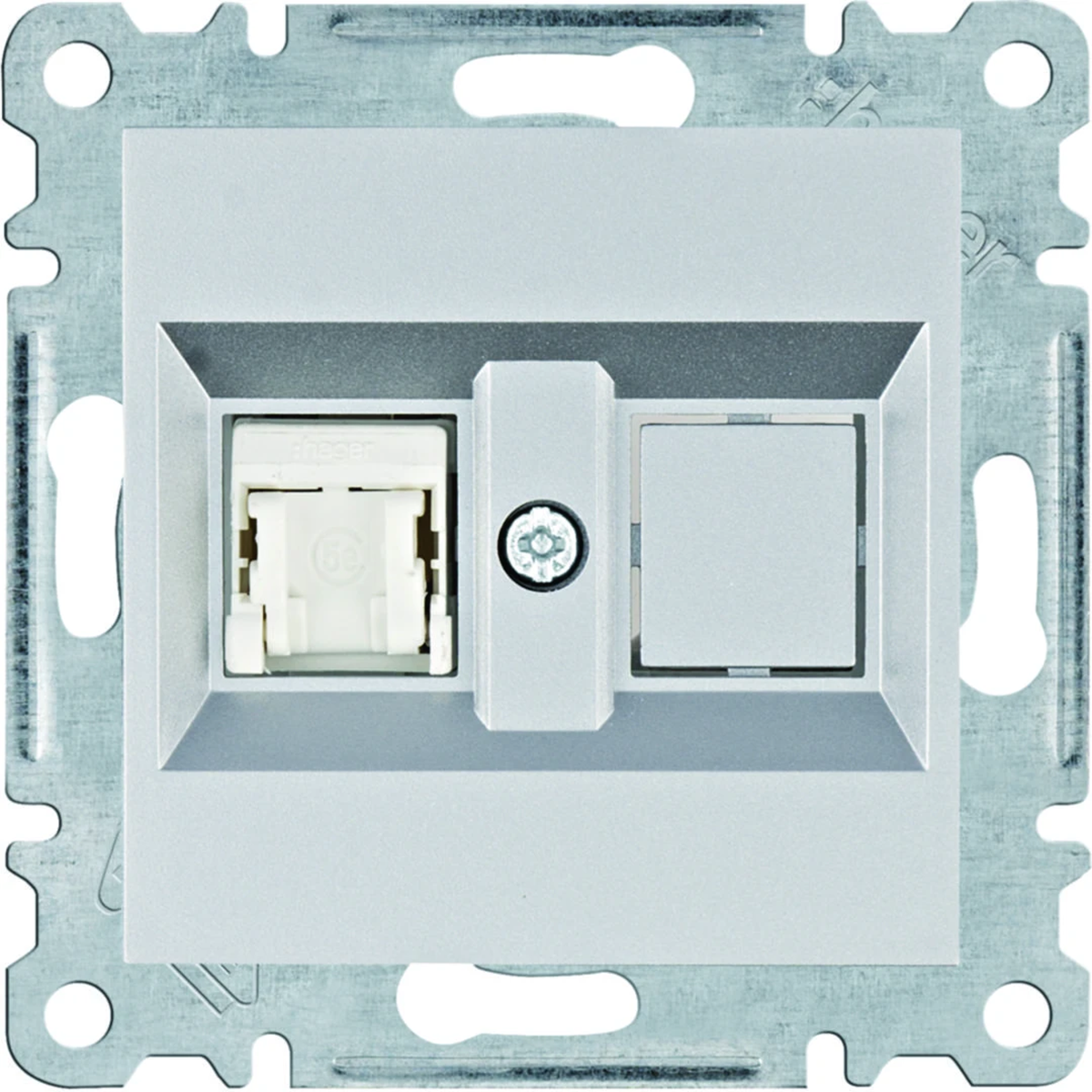

LUMINA Single computer socket RJ45 cat.5e UTP silver WL2112

local index:
MEI025HAGE
Catalog No:
WL2112
EAN code:
8694407003614
Manufacturer: HAGER
Category: 5e
Color: Silver
Shape: Square
Price:
10,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 11 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internet computer socket from the lumina intense series, from the manufacturer Hager. The product part number is WL2112.



FEATURES

  • Frequency bandwidth: max. 100 MHz.
  • Transition resistance: < 20 mΩ.
  • With spreaders, for screw connection.
  • With IDC terminals.
  • Ø wire: 0.5…0.65 mm (AWG 24-22).

Technical data

  • Category
    5e
  • Shape
    Square
  • Fixing
    Expanding claws
  • Surface
    Matt
  • Family
    LUMINA INTENSE
  • Connector type
    RJ46
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • For the frame system
    Yes
  • Dust cover
    Yes
  • Exact material
    Material Metal
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Type
    Internet
  • Type
    Recessed Surface-mounted
  • Version
    UTP
  • Surface finish
    matte
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0

Other technical data

  • Surface mounting
    No
  • Type of fastening
    Screwing
  • Type of connector
    RJ45 8(8)
  • Category
    5E
  • RAL-number
    9006
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    Yes
  • Outlet direction
    Straight
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    39 mm
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with central cover plate
  • With buses/couplings
    Yes
  • Colour
    Silver
  • Connection type
    Insulation displacement connector
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    71 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,056 0,751 7,900 180,000
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,033 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
