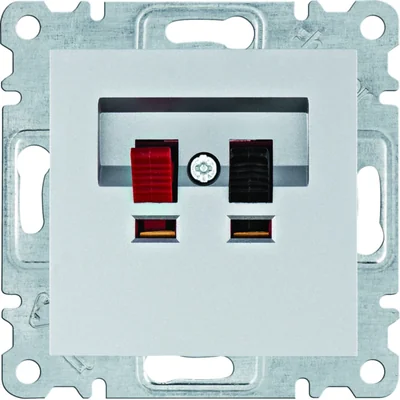

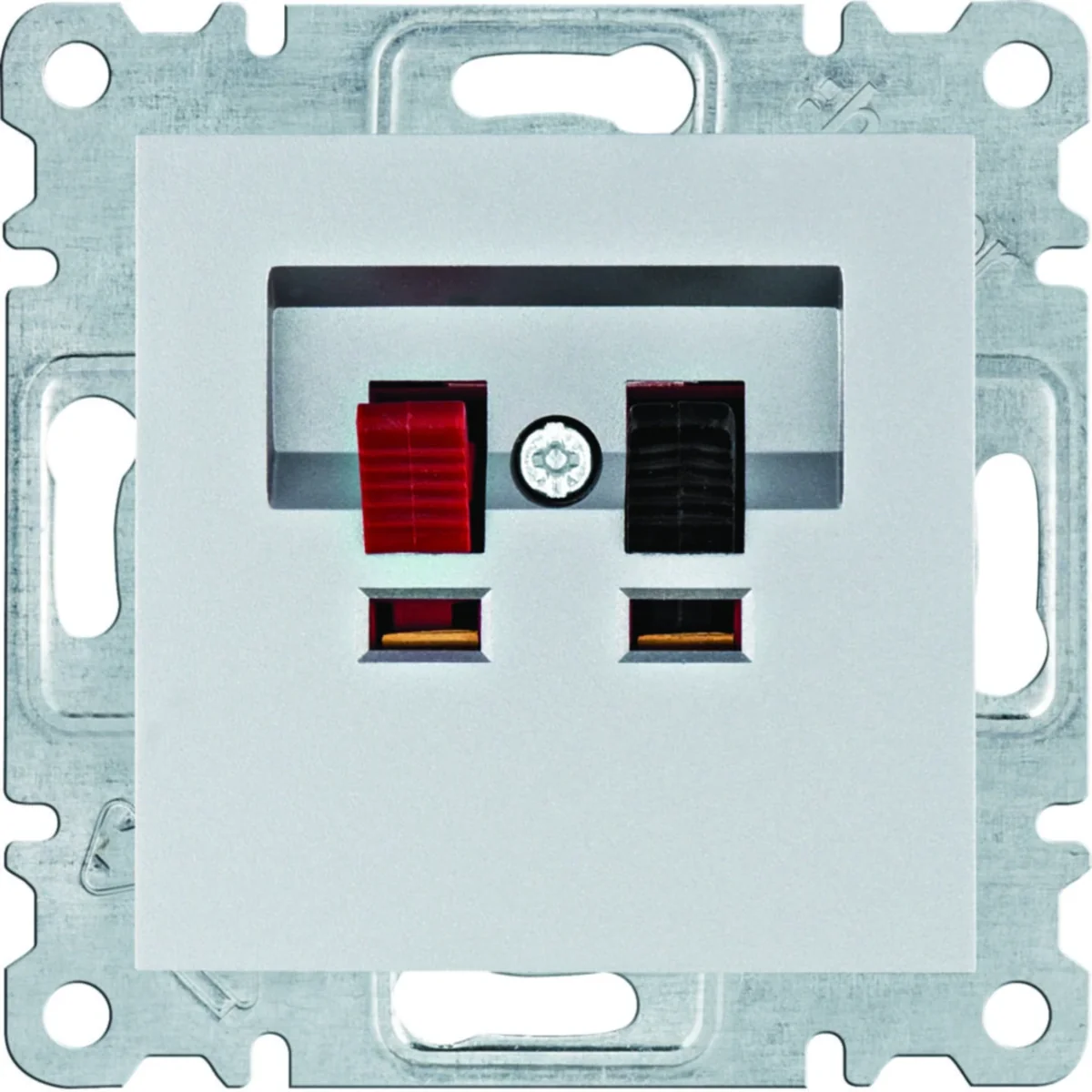

LUMINA Silver speaker terminal WL3312

local index:
MEG003HAGE
Catalog No:
WL3312
EAN code:
8694407004017
Manufacturer: HAGER
Number of sockets: 1
Color: Silver
Shape: Square
Price:
8,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Speaker socket from the lumina series, from the manufacturer Hager. The product catalog number is WL3312.



FEATURES

  • Single.
  • Color aluminum anodized.< /li>
  • Ingress protection IP20.
  • With expansion lugs, for screw connection.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    speaker
  • Level of security
    IP20
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • Variant
    Pin-type plugs
  • Exact material
    Material Metal
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Transparent
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Type of fastening
    Mounting with claw and screw
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    32 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2880 pcs.
Weight (kg) 0,055 0,720 7,580 204,920
Width (m) 0,071 0,190 0,475 0,800
Length (m) 0,040 0,095 0,235 1,050
Depth (m) 0,071 0,215 0,390 1,200
