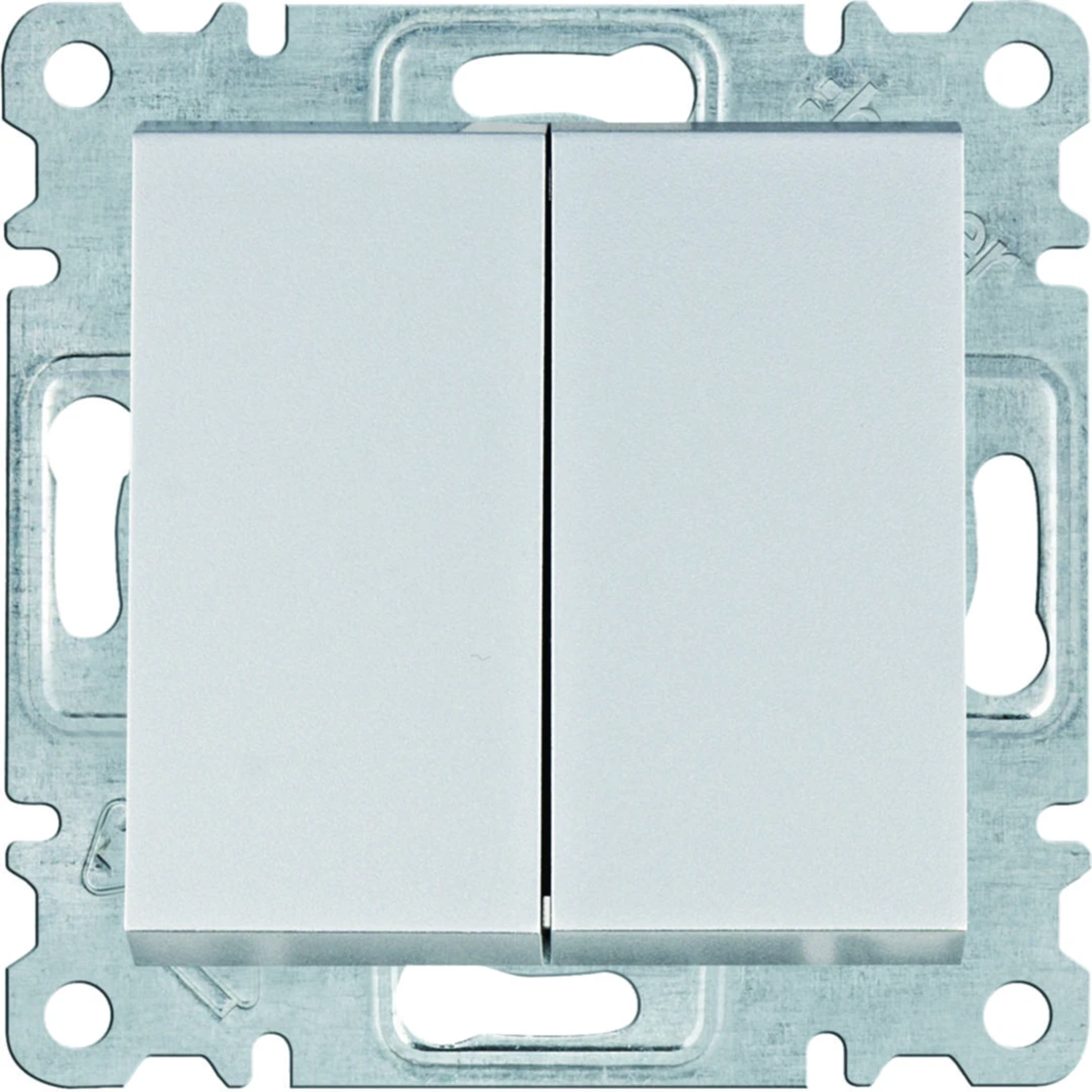

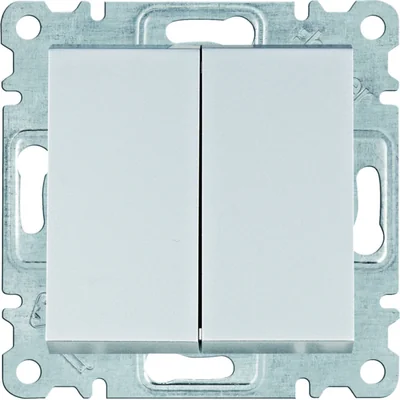

LUMINA Silver double stair switch WL0052

Lokaler Index:
MMS001HAGE
Katalognummer:
WL0052
EAN-Code:
8694407003096
Hersteller: HAGER
Depth [mm]: 42
Number of keys: 2
Color: Silver
Preis:
8,77 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 10 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Double stair switchfrom the lumina intense series, from Hager. The product catalog number is WL0052.

  • With expansion lugs, for screw connection.

Technische Daten

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    LUMINA INTENSE
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Recessed Surface-mounted
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • Mounting depth [mm]
    26
  • PKWIU
    27.33.11.0

Weitere technische Daten

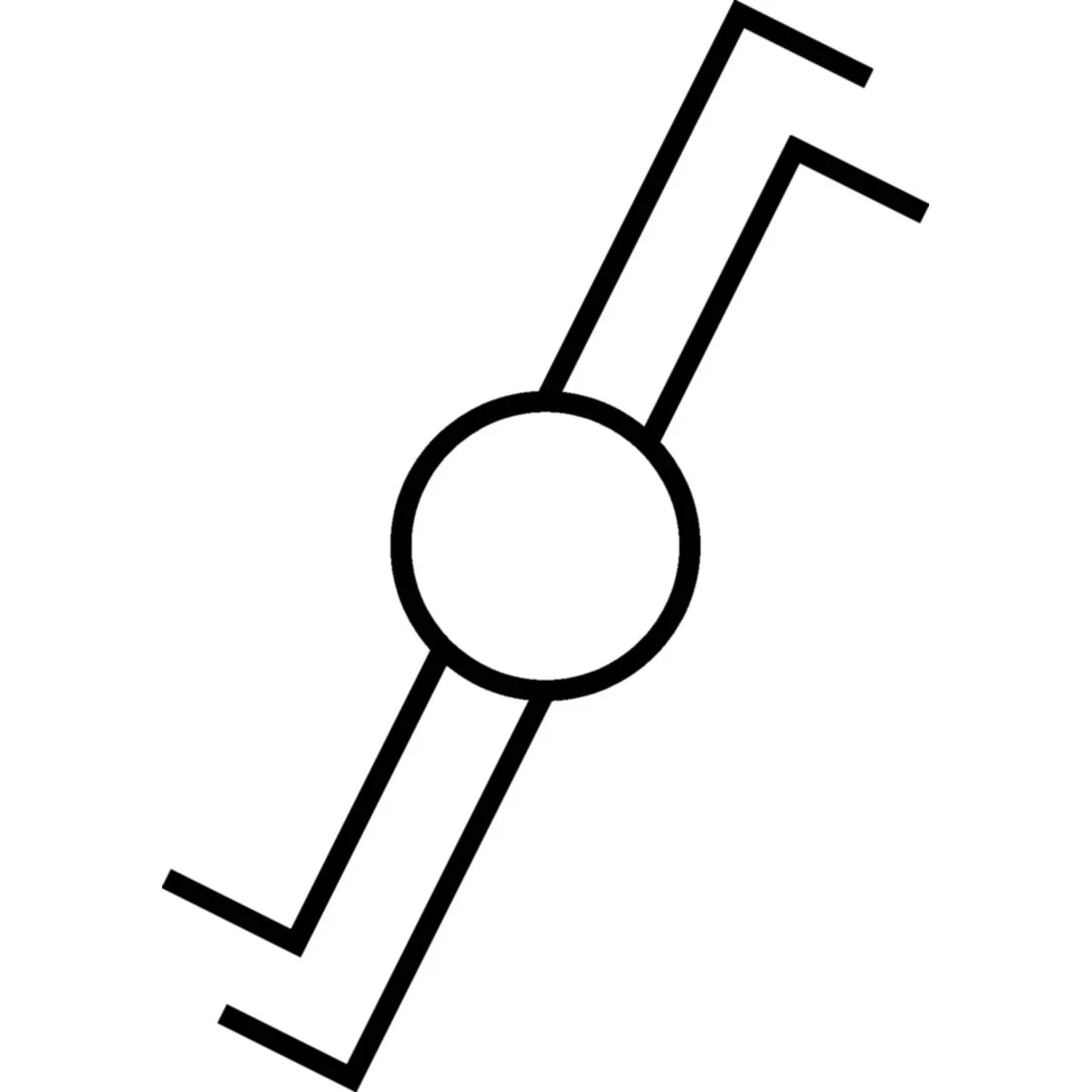

  • Wiring system
    Alternating-/alternating switch
  • Assembly arrangement
    Basic element
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Illumination
    Optional
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    26 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    35 mm

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 1 stk. 12 stk. 120 stk. 2400 stk.
Gewicht (kg) 0,079 1,020 10,765 240,300
Breite (m) 0,071 0,185 0,390 0,800
Länge (m) 0,044 0,095 0,235 1,090
Tiefe (m) 0,071 0,220 0,475 1,200
