HAGER

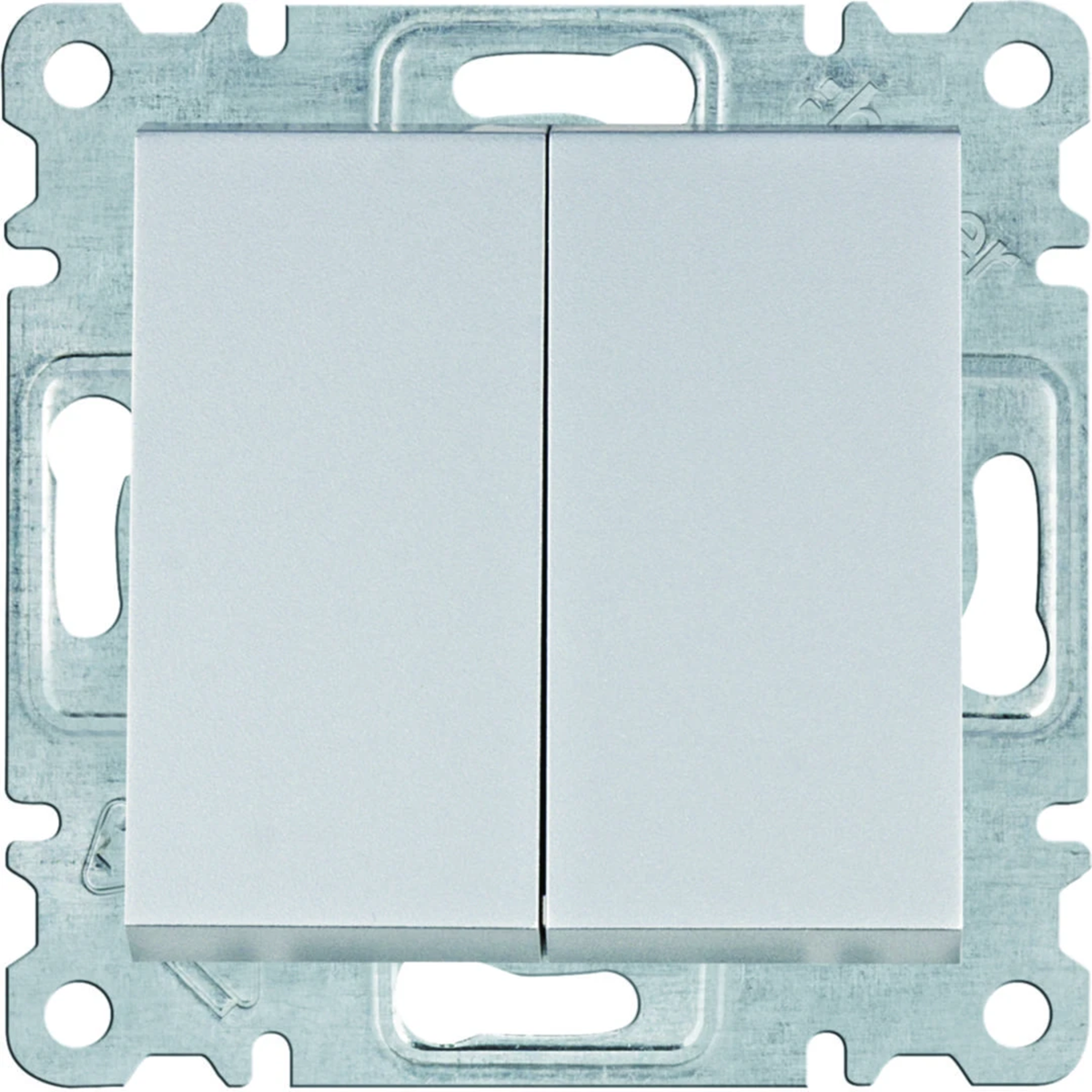

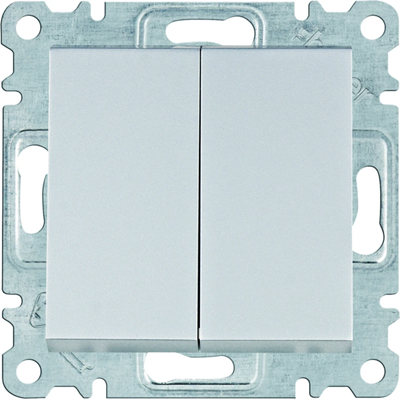

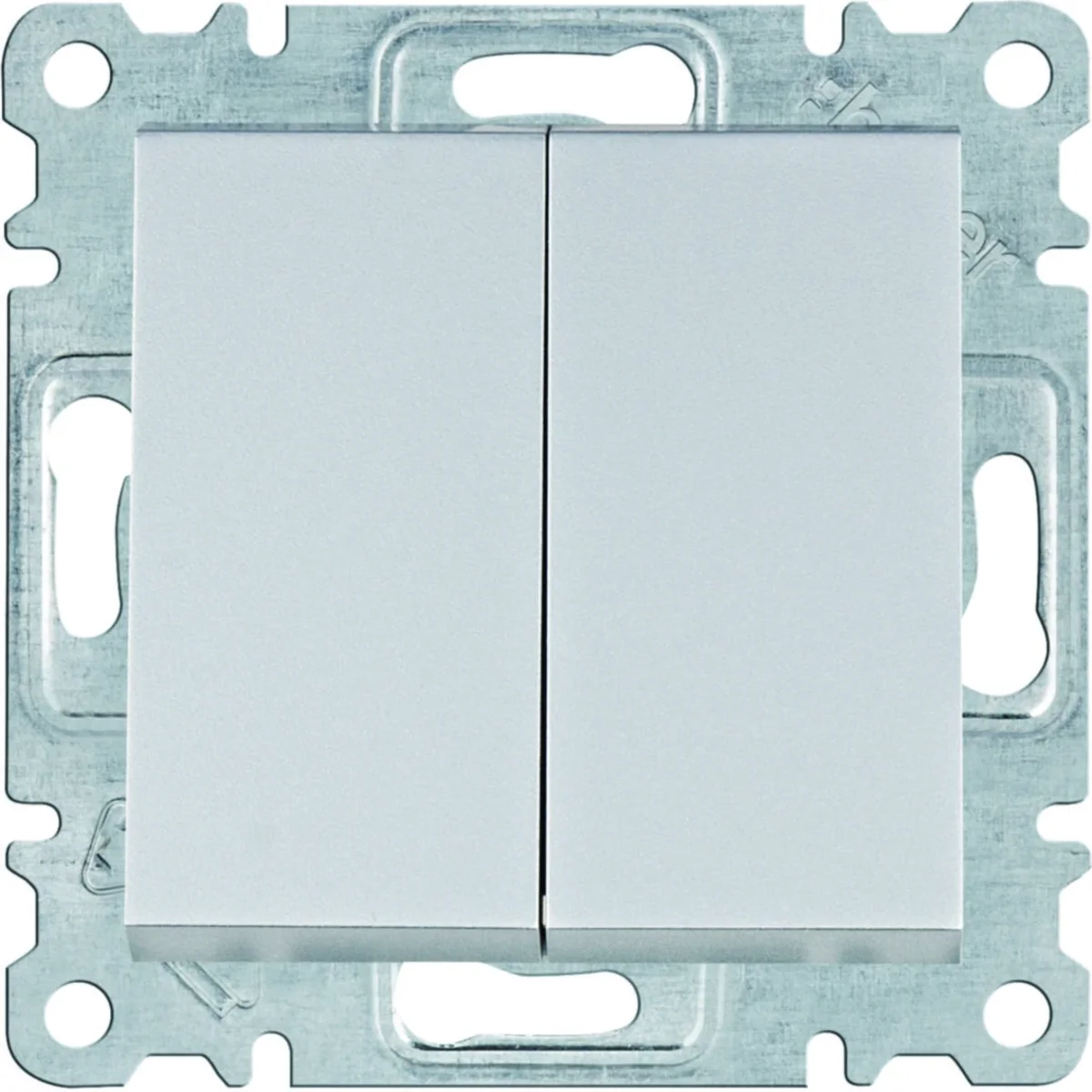

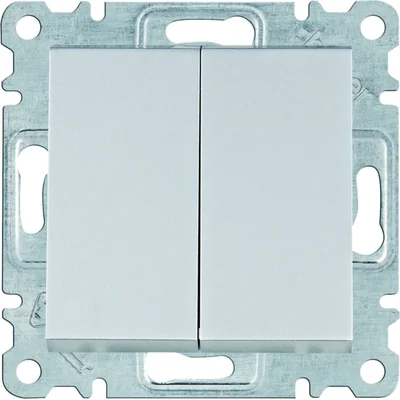

LUMINA Serial/candlestick silver connector WL0042

local index:
MMT005HAGE
Catalog No:
WL0042
EAN code:
8694407003072
Price:
4,42 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 94 pcs.
Delivery:
From 3,49 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Modern designs of multi-apartment buildings, office space in the standard segment and offices require the use of economic solutions that are very beneficial for the investor.

The quality of materials and the way they are made must meet the technological requirements, ensure a high aesthetic and functional standard.

The new series of lumina fittings offers investor-friendly, economical solutions dedicated to development construction. With the increase in the number of electrical receivers in our homes, the demand for the required power supply points increases. The ideal solution is a double modular power socket for multiple frames. Thanks to the compact design, it is possible to connect two power receivers to the socket at the same time, and to mount the socket in a combination of multiple frames. An ideal economic solution with a high aesthetic and functional standard.

Modern, aesthetic design

  • Timeless universal design of the series with a wide range of recipients in mind.< /li>

High-quality switch mechanisms with self-clamps

  • The mechanism of the lumina series switch provides switching capacity up to 10AX. As standard, the connectors are equipped with screwless terminals, ensuring quick and easy assembly.

Durable and solid mounting frame

  • The mounting frame is made of made of steel sheet guarantees secure assembly and is not damaged on uneven surfaces.

Sure and fast

  • Modular construction of the lumina series in system of multiple frames ensures quick and easy installation of accessories - a professional solution for electrical installers.

Universal 2-fold sockets for multiple frames

  • Economic solution for residential construction.

Additional security

  • Each element of the lumina series is packed in an individual package, thanks to which products are secured during transport and during storage at the construction site.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Fixing
    Screw
  • Connection
    Quick Connect
  • Rated current [A]
    10
  • Level of security
    IP20
  • Height [mm]
    71
  • Number of keys
    2
  • Material
    Plastic Metal
  • Rated voltage [V]
    230
  • Surface
    Gloss
  • Family
    LUMINA
  • Width [mm]
    71
  • Mounting depth [mm]
    26

Other technical data

  • Wiring system
    Series switch
  • Assembly arrangement
    Basic element
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Illumination
    Optional
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    71 mm
  • Built-in depth
    26 mm
  • Method of operation
    Rocker/button
  • Push button switch
    no
  • Mounting method
    Flush-mounted
  • With mounting plate
    yes
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    35 mm
