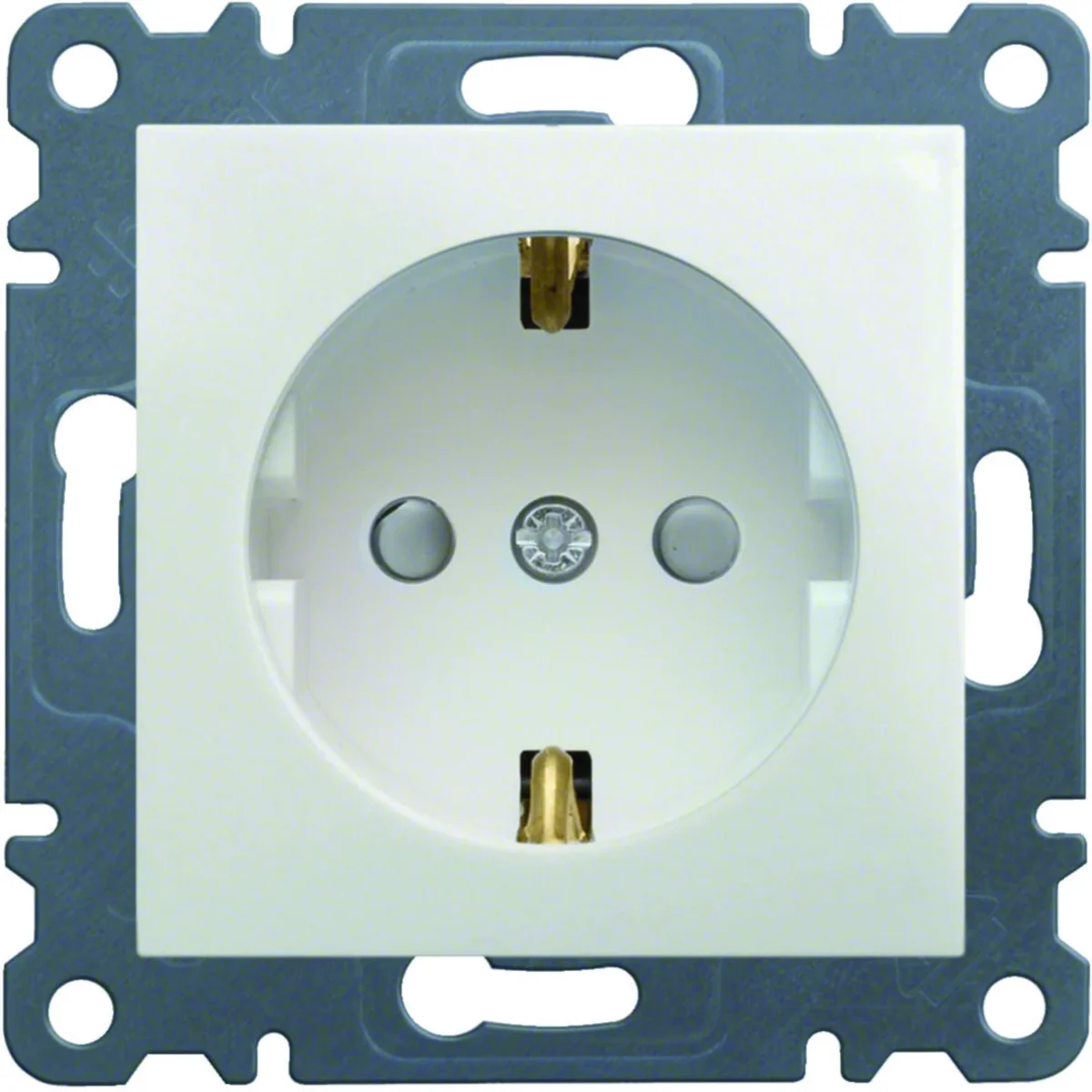

LUMINA SCHUKO socket with a white contact shutter WL1060
local index:
MEE011HAGE
Catalog No:
WL1060
EAN code:
8694407001009
Price:
3,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SCHUKO socket from the Lumina soul series, which is a solid foundation for the installation and a proposal for those who value simple solutions. It provides full functionality, and at the same time is a subtle addition to any interior.
- Screw terminals for sockets: for wire: min. 2x1.5mm²; max. 2x2.5 mm².
- Compliance with the PN-IEC 60884-1:2006 standard.
Technical data
-
Number of sockets1
-
ShapeSquare
-
FixingExpansion clamps screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Groundschuko
-
Surface finishShiny
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyLUMINA SOUL
-
TypeFlush-mounted
-
Degree of mechanical protectionIK02
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialMaterial Metal
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9016
-
LockableNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth44 mm
-
Protective contactYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK02
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,070 | 0,916 | 9,550 | 213,000 |
| Width (m) | 0,071 | 0,215 | 0,475 | 1,200 |
| Length (m) | 0,044 | 0,090 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,185 | 0,390 | 0,800 |
