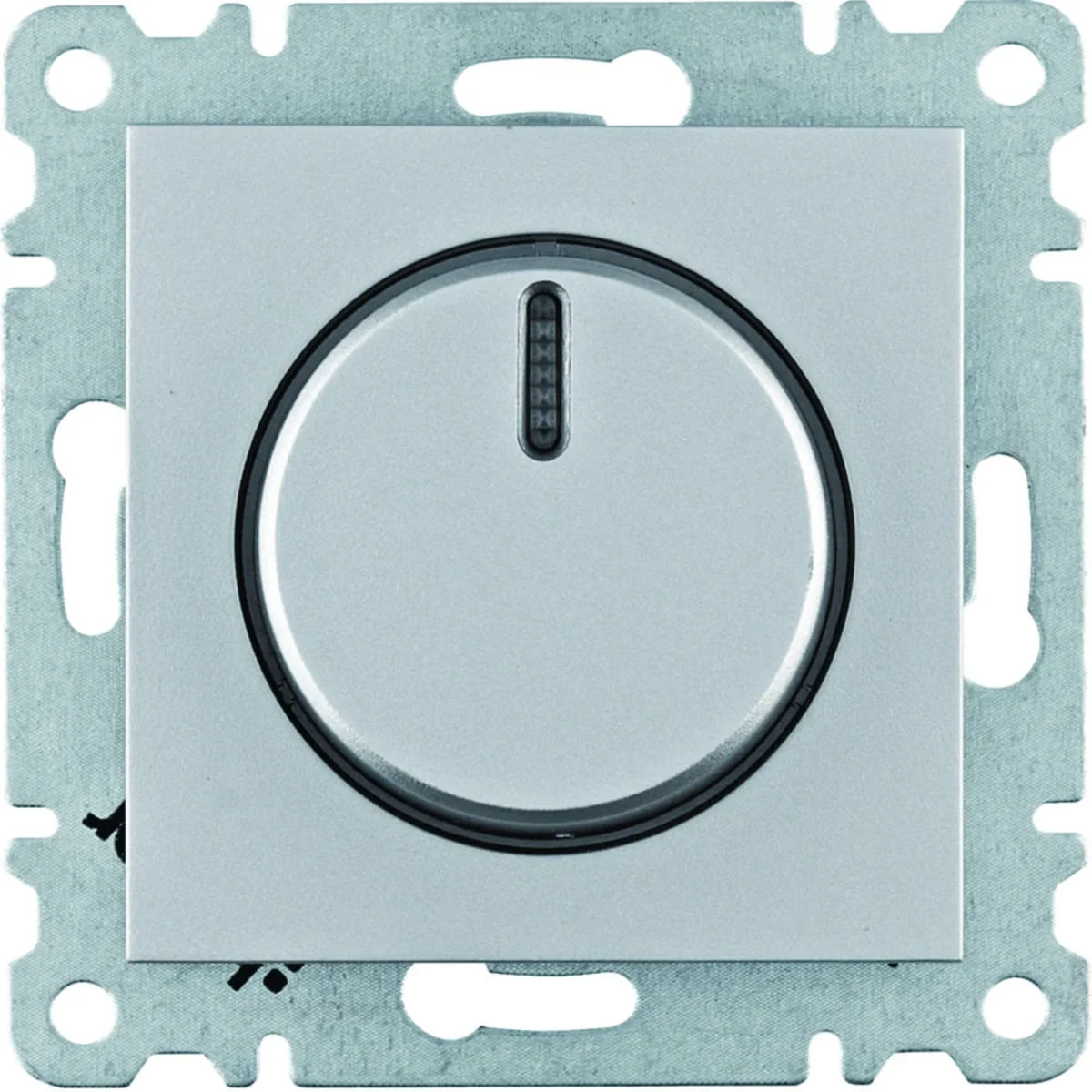

LUMINA Rotary dimmer 60-600W silver WL4012
local index:
MMC002HAGE
Catalog No:
WL4012
EAN code:
8694407004031
Price:
38,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Rotary dimmer from the series lumina intense, from the manufacturer Hager. The product catalog number is WL4012 .
- 230 V bulbs: 60…600 W.
- 230 V bulbs and halogen lamps: 60… 600 W.
- Mounting: self-clamps / screw terminals.
- Type of load: Resistive load.
Technical data
-
Halogen freeYes
-
Number of keysKnob
-
ShapeSquare
-
Rated voltage [V]230
-
FamilyLUMINA INTENSE
-
TypeRecessed Surface-mounted
-
Height [mm]71
-
Surface finishmatte
-
BacklightNO
-
VariantRotary
-
PKWIU27.33.11.0
-
Depth [mm]51
-
ColorSilver
-
MaterialPlastic
-
Typedimmers
-
Width [mm]71
-
VersionFor incandescent lighting For halogen lighting
-
Surface protectionvarnishing
-
Accurate colorAnodized aluminum
-
load power [W]60-600
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Mounting methodFlush-mounted
-
Halogen freeYes
-
ColourSilver
-
TransparentNo
-
Impact strengthIK02
-
Connection typeScrewed terminal
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
-
Type of loadResistive load
-
MaterialPlastic
-
Surface finishingMatt
-
RAL-number (similar)9006
-
Suitable for degree of protection (IP)IP20
-
Frequency50 ... 50 Hz
-
Device width71 mm
-
Device depth51 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 1200 pcs. |
| Weight (kg) | 0,118 | 1,440 | 14,400 | 169,000 |
| Width (m) | 0,071 | 0,270 | 0,520 | 0,800 |
| Length (m) | 0,049 | 0,093 | 0,285 | 1,000 |
| Depth (m) | 0,071 | 0,222 | 0,460 | 1,200 |
