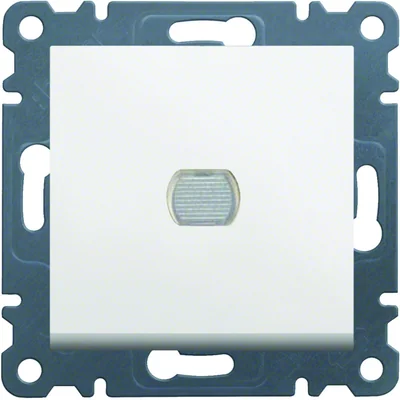

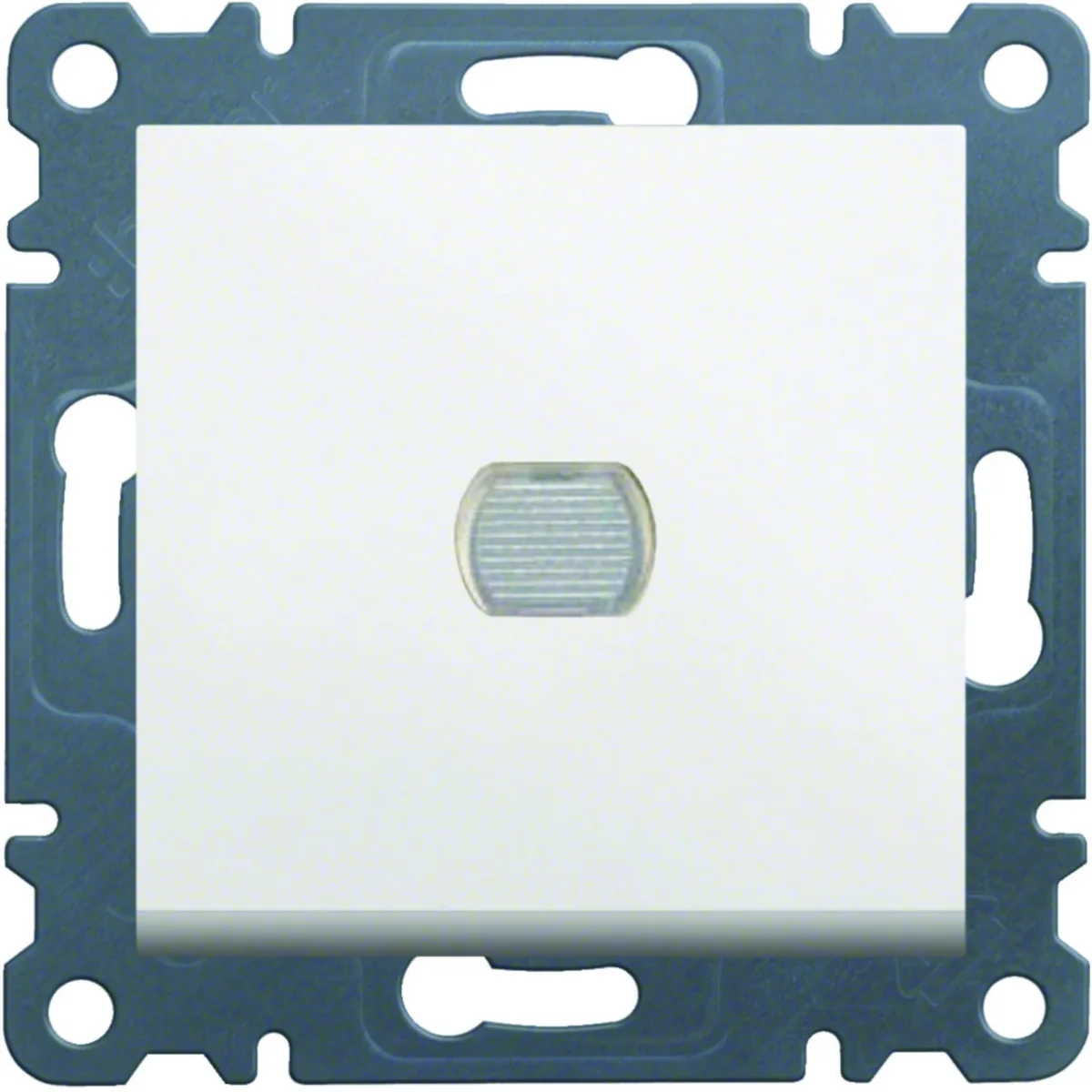

LUMINA Push button dimmer 60-300W white WL4030

local index:
MMC004HAGE
Catalog No:
WL4030
EAN code:
8694407000439
Manufacturer: HAGER
Halogen free: Yes
Number of keys: 1
Color: White
Price:
36,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push dimmer from the series lumina soul, from the manufacturer Hager. The product catalog number is WL4030 .

  • 230 V bulbs: 60…300 W.
  • 230 V bulbs and halogen lamps: 60… 300 W.
  • Mounting: with clamps, for screw connection.
  • Type of load: resistive load.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    LUMINA SOUL
  • Version
    For incandescent lighting For halogen lighting
  • Backlight
    NO
  • Variant
    Button
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    dimmers
  • Type
    Recessed Surface-mounted
  • Surface finish
    Shiny
  • load power [W]
    60-300
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Type of load
    Resistive load
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9016
  • Suitable for degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Number of modules (module system)
    0
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Material
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Impact strength
    IK02
  • Device width
    71 mm
  • Device depth
    32 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 1200 pcs.
Weight (kg) 0,105 1,284 12,840 170,400
Width (m) 0,071 0,270 0,520 1,200
Length (m) 0,042 0,093 0,285 0,980
Depth (m) 0,071 0,222 0,460 0,800
