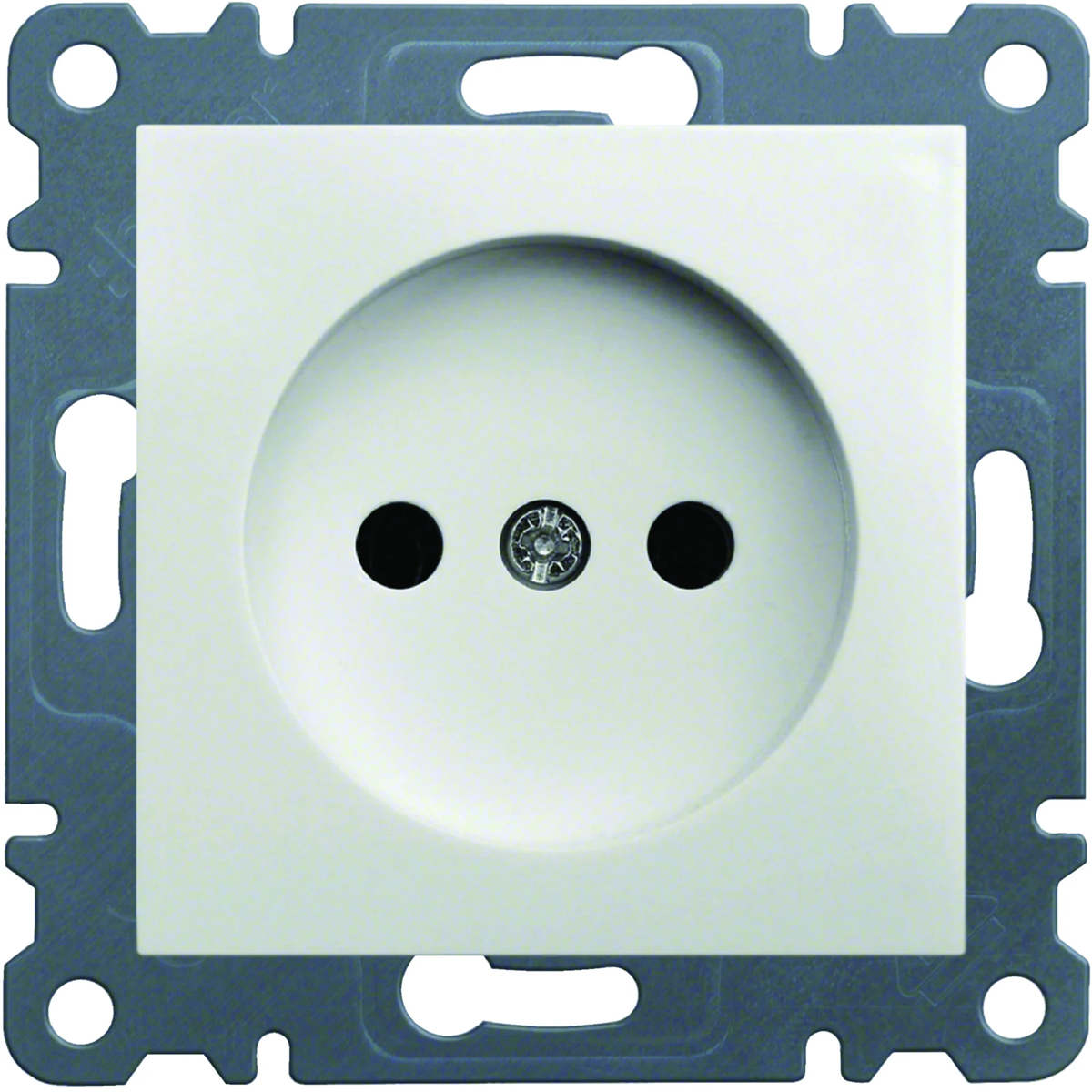

LUMINA Power socket without grounding 16A/250VAC white WL1010

local index:
MEE001HAGE
Catalog No:
WL1010
EAN code:
8694407000453
Manufacturer: HAGER
Number of sockets: 1
Color: White
Shape: Square
Price:
2,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power socket without grounding, from the Lumina soul series, which is a solid foundation for the installation and a proposal for those who value simple solutions. It provides full functionality, and at the same time is a subtle addition to any interior.

  • Screw terminals for sockets: for wire: min. 2x1.5mm²; max. 2x2.5 mm².
  • Compliance with the PN-IEC 60884-1:2006 standard.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expansion clamps screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Lack
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA SOUL
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK02
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal

Other technical data

  • Model
    Other
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9016
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    35 mm
  • Protective contact
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK02
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,057 0,745 8,020 183,400
Width (m) 0,071 0,190 0,390 0,800
Length (m) 0,033 0,095 0,235 1,050
Depth (m) 0,071 0,215 0,490 1,200
