LUMINA Power socket without grounding 16A/250VAC silver WL1012

local index:

MEE002HAGE

Catalog No:

WL1012

EAN code:

8694407003331

LUMINA Power socket without grounding 16A/250VAC silver

LUMINA Power socket without grounding 16A/250VAC silver

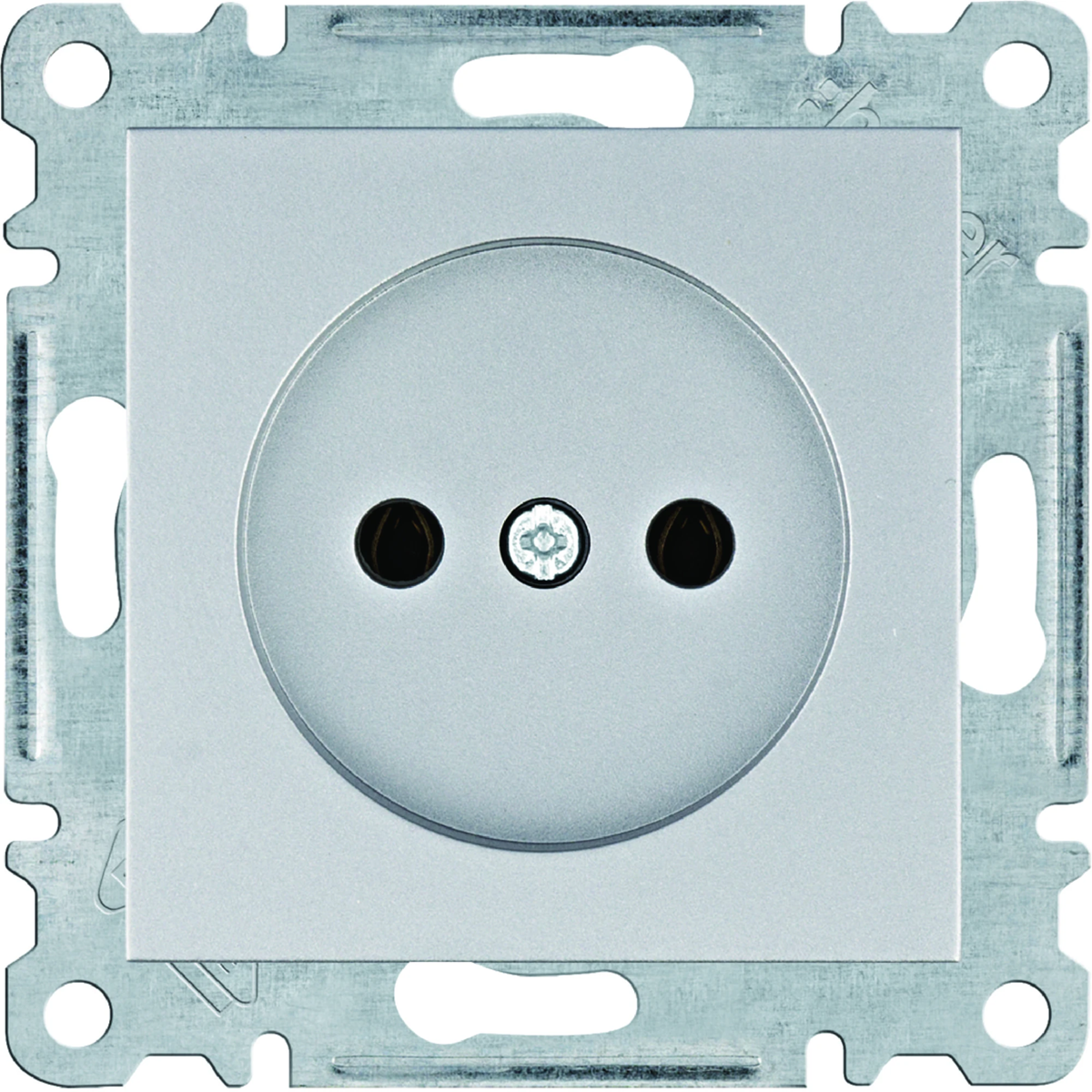

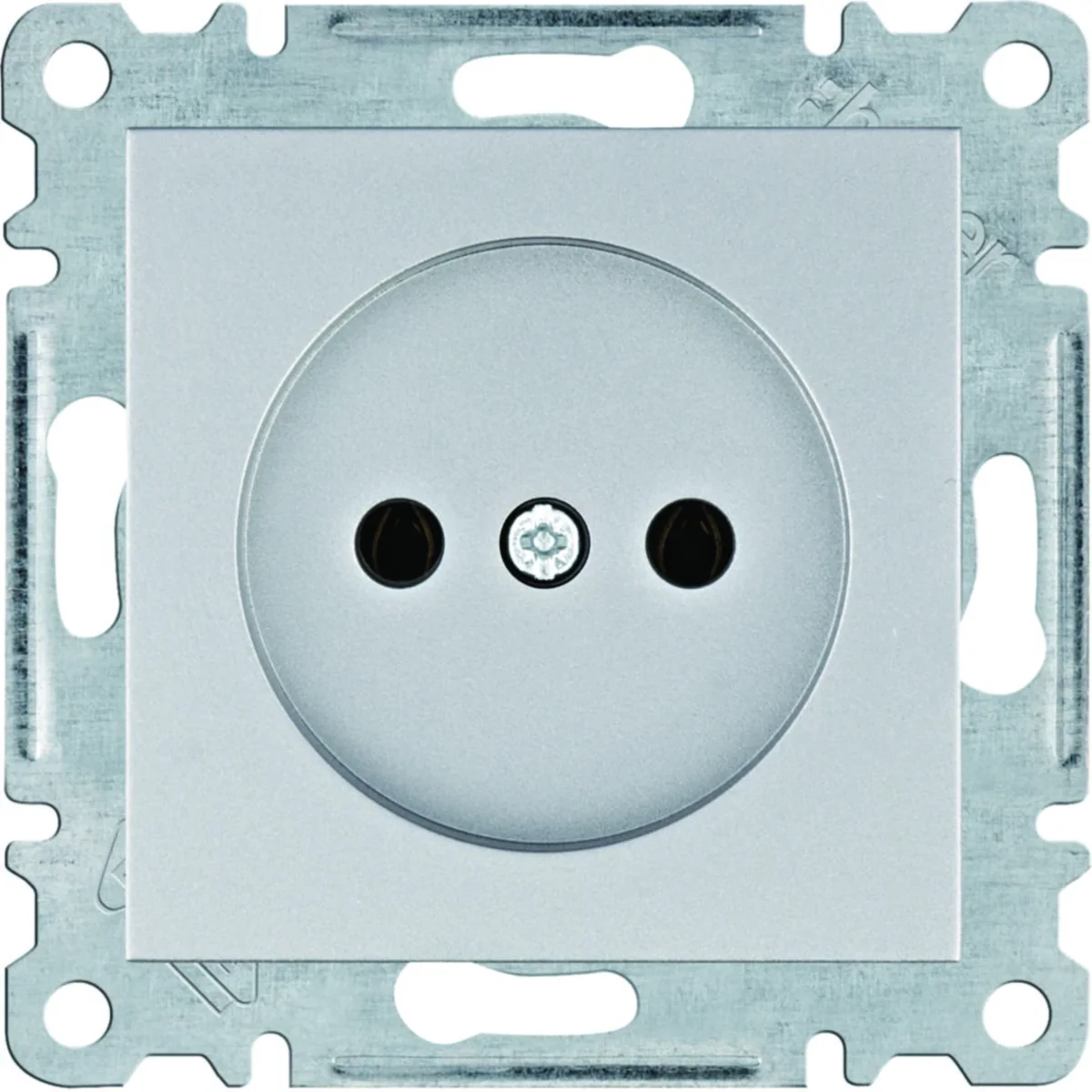

Click on the photo to enlarge

Manufacturer: HAGER

Number of sockets: 1

Color: Silver

Shape: Square

See full description

Price:

3,64 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Bulk packaging

Product description

Power socket without grounding, Lumina intense series.

Screw terminals for sockets: for wire: min. 2x1.5mm²; max. 2x2.5 mm².
Compliance with the PN-IEC 60884-1:2006 standard.

SERIES DESCRIPTION

Three classic colors that ;re open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

Number of sockets

1
Shape

Square
Fixing

Expansion clamps screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Ground

Lack
Degree of mechanical protection

IK02
Accurate color

Anodized aluminum
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
PKWIU

27.33.13.0

Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

LUMINA INTENSE
Type

Flush-mounted
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Standard

European
On the DATA key

NO
Exact material

Material Metal

Other technical data

Model

Other
Number of active contacts (round)

2
With signal lamp

No
Number of modules (module system)

0
Number of phases

1
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

9006
Lockable

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Other
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

32 mm

Protective contact

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

No
Colour

Silver
Transparent

No
Eject-mechanism

No
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Matt
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK02
Device height

71 mm
Min. depth of built-in installation box

35 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	120 pcs.	2400 pcs.
Weight (kg)	0,057	0,761	8,000	182,000
Width (m)	0,071	0,215	0,475	1,200
Length (m)	0,033	0,090	0,235	1,090
Depth (m)	0,071	0,185	0,390	0,800
