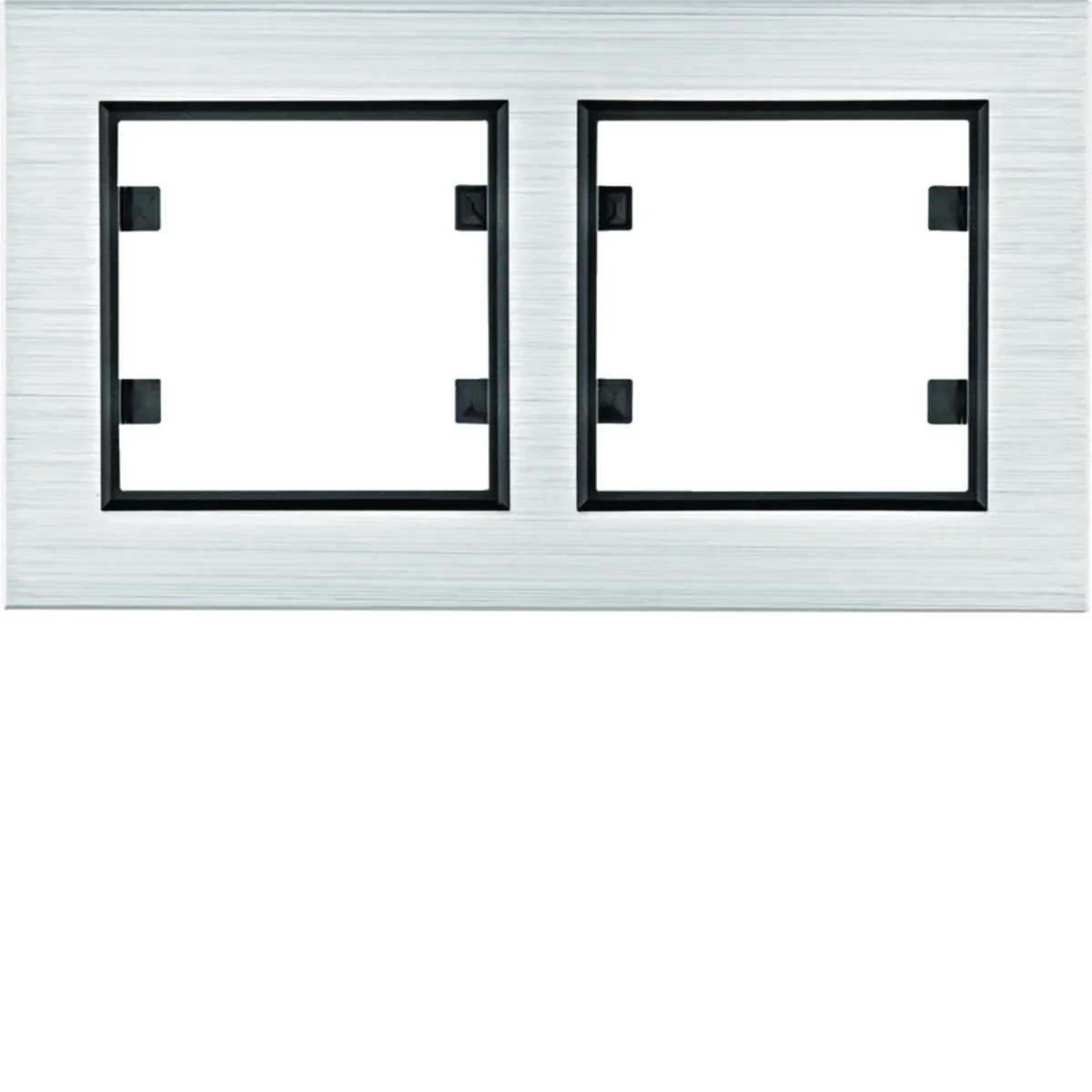

LUMINA PASSION 2-fold horizontal aluminum silver frame WL9222

local index:
MAR114HAGE
Catalog No:
WL9222
EAN code:
8694407002310
Manufacturer: HAGER
Depth [mm]: 10.4
Number of modules: 2
Color: Silver
Price:
28,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double frame from the lumina passion series. The product catalog number is WL9222.



SERIES DESCRIPTION

For the production of frames from the series lumina passion < /strong>precious materials were used - such an element will add uniqueness to any interior.

Technical data

  • Depth [mm]
    10.4
  • Color
    Silver
  • Material
    Metal
  • Family
    LUMINA PASSION
  • Width [mm]
    162.5
  • Surface protection
    Brushing
  • Accurate color
    Silver aluminum
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    2
  • Shape
    Rectangular
  • Type
    Standard + Intermediate
  • Level of security
    IP20
  • Height [mm]
    91.5
  • Surface finish
    matte
  • Mounting direction
    Horizontal
  • Exact material
    Aluminum
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    2
  • Number of units horizontal
    2
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    2
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    162.5 mm
  • Depth
    10.4 mm
  • Built-in height
    54.8 mm
  • Mounting direction
    Horizontal
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Brushed
  • Colour
    Silver
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    91.5 mm
  • Built-in width
    54.8 mm
  • Diameter bore hole (opening)
    0 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 2592 pcs.
Weight (kg) 0,105 0,120 1,500 347,000
Width (m) 0,162 0,095 0,180 0,800
Length (m) 0,010 0,015 0,100 1,050
Depth (m) 0,091 0,165 0,190 1,200
