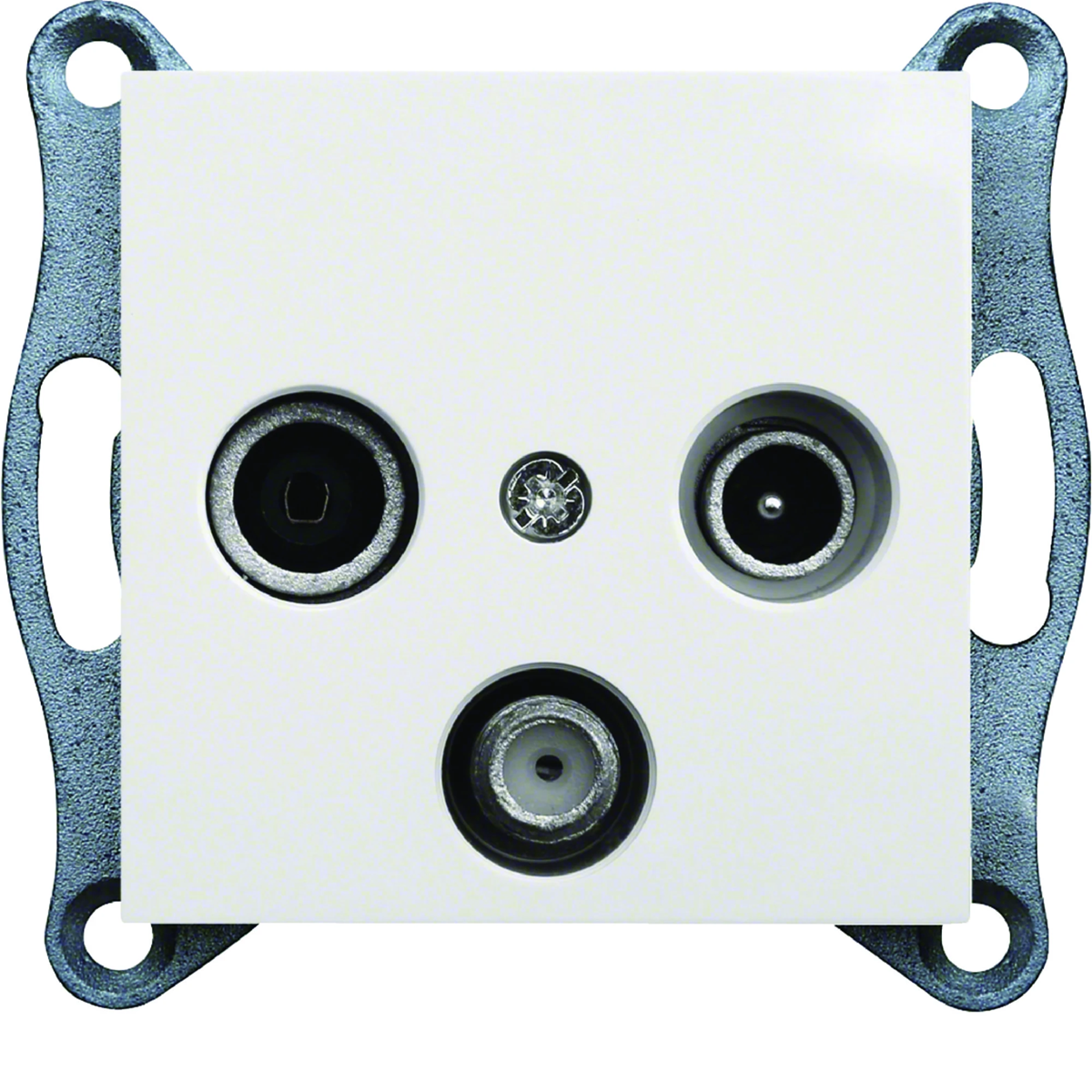

LUMINA Pass-through RTV-SAT socket, white WL3120

local index:
MEA006HAGE
Catalog No:
WL3120
EAN code:
8694407000750
Manufacturer: HAGER
Number of sockets: 3
Wave impedance [Ω]: 75
Color: White
Price:
17,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT socketa through socket from the Lumina soul series, which is a solid foundation for the installation and a proposal for those who value simple solutions. It provides full functionality, and at the same time is a subtle addition to any interior.

  • for analog and digital transmission
  • for terrestrial SAT reception
  • with spreader legs , for screw connection
  • with carrier ring

Technical data

  • Number of sockets
    3
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Frequency Range [MHz]
    5-2400
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Fixing
    Expanding claws
  • Overprint
    NO
  • Family
    LUMINA SOUL
  • Attenuation [dB]
    Connection R at 87.5-108 MHz: 12
  • Version
    through
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Material Metal

Other technical data

  • Model
    Loop-through socket
  • Cover
    Central cover plate
  • Tap loss at 2150 MHz
    8 dB
  • Suitable for cable modem
    Yes
  • Frequency
    5 ... 2400 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Other
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    10 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9016
  • Surface finishing
    Glossy
  • Material quality
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,106 1,296 12,960 300,000
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,040 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
