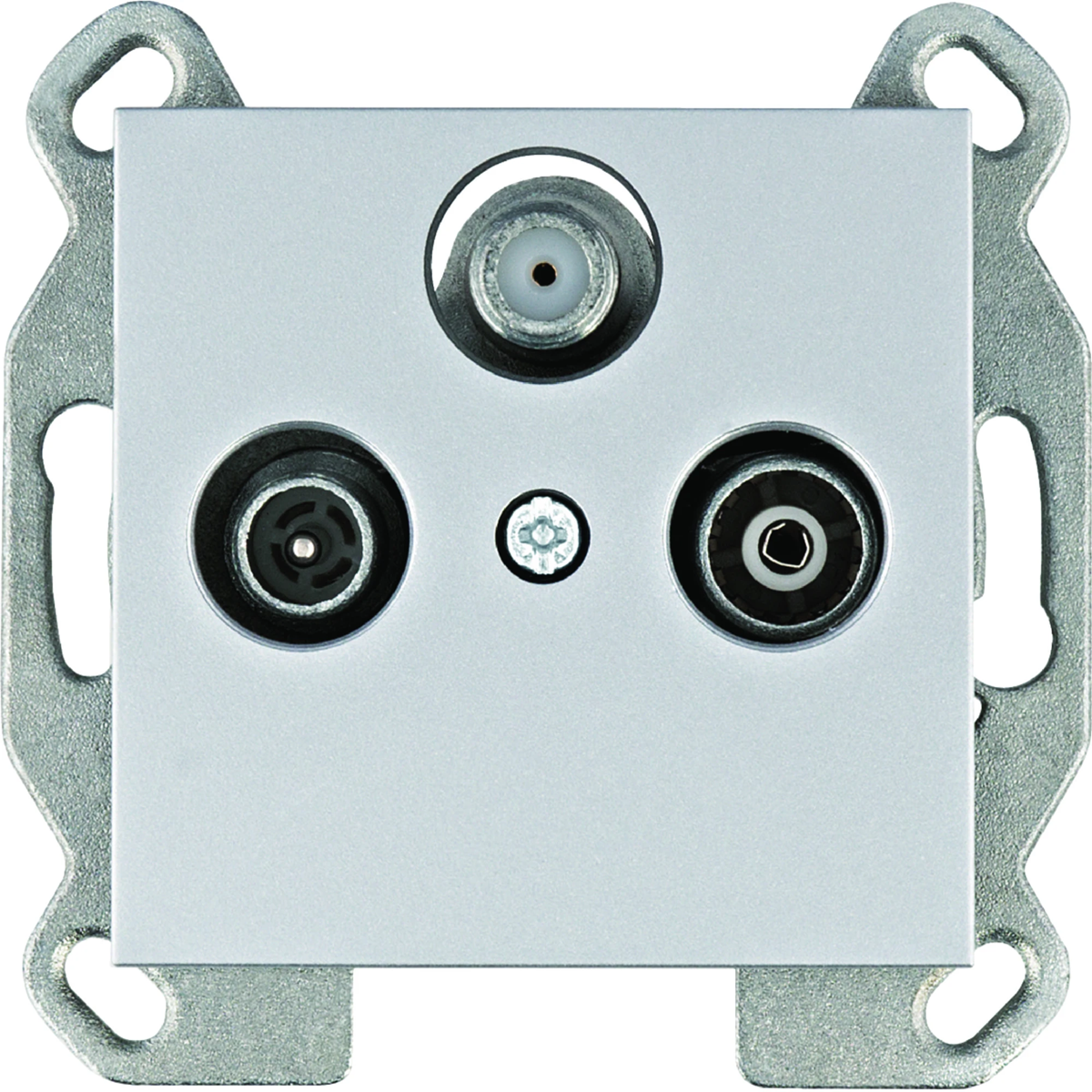

LUMINA Pass-through RTV-SAT socket silver WL3122

local index:
MEA008HAGE
Catalog No:
WL3122
EAN code:
8694407003911
Manufacturer: HAGER
Number of sockets: 3
Wave impedance [Ω]: 75
Color: Silver
Price:
18,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT socket pass-through socket, series Lumina intense.

  • for analog and digital transmission
  • < li>for terrestrial SAT signal reception
  • with clamps, for screw connection
  • with carrier ring



SERIES DESCRIPTION

Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

  • Number of sockets
    3
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Version
    through
  • Frequency Range [MHz]
    5-2400
  • Accurate color
    Anodized aluminum
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Material Metal
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Fixing
    Expanding claws
  • Overprint
    NO
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Loop-through socket
  • Cover
    Central cover plate
  • Tap loss at 2150 MHz
    8 dB
  • Suitable for cable modem
    Yes
  • Frequency
    5 ... 2400 MHz
  • Colour
    Silver
  • Surface protection
    Lacquered
  • Material
    Other
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    10 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Surface finishing
    Matt
  • Material quality
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,106 1,296 12,960 300,000
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,040 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
