LUMINA Pass-through RTV-SAT socket black WL3123

Name: LUMINA Pass-through RTV-SAT socket black
Brand: HAGER
SKU: MEA009HAGE
Price: 89.08 PLN
Availability: BackOrder

local index:

MEA009HAGE

Catalog number:

WL3123

EAN code:

8694407003928

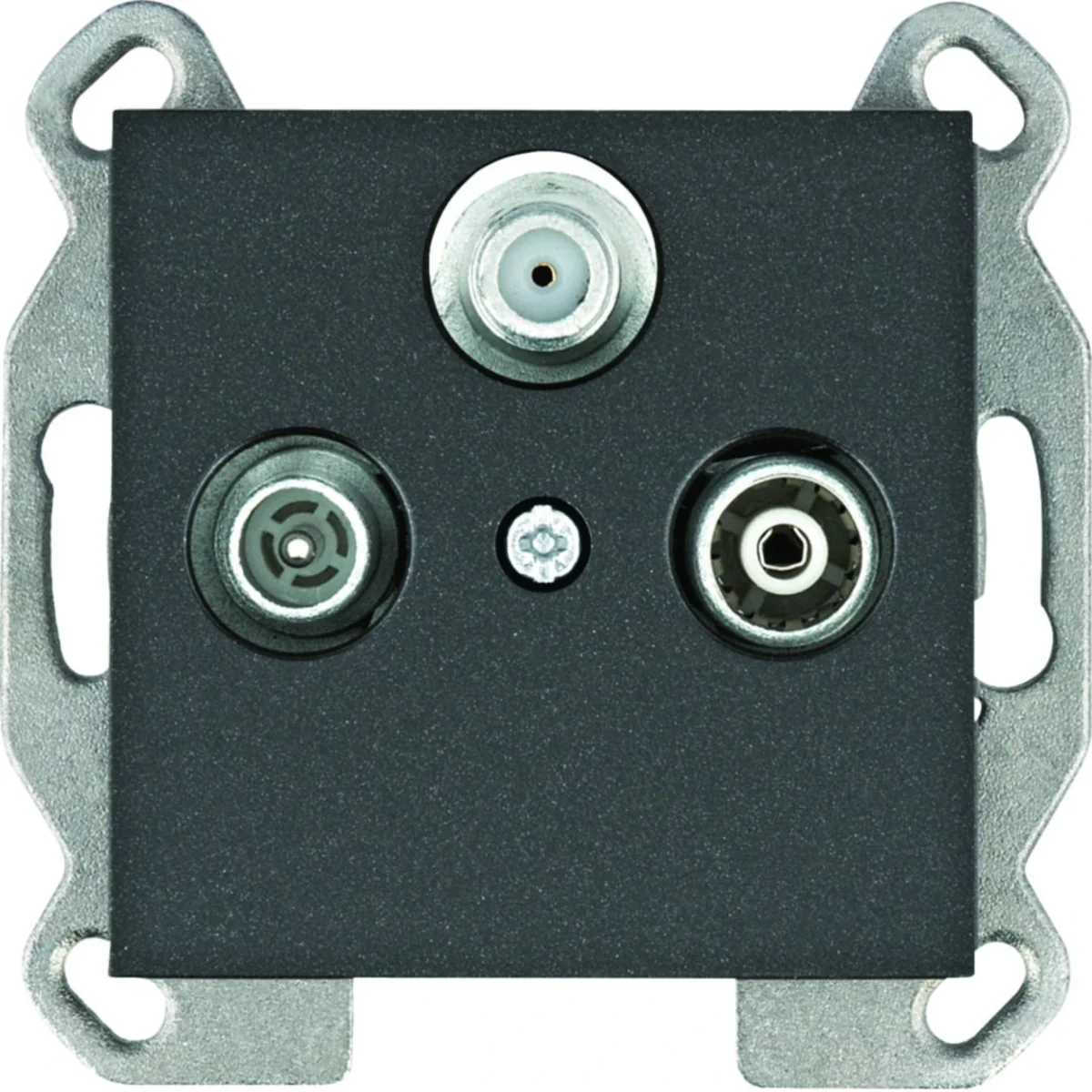

LUMINA Pass-through RTV-SAT socket black

Click on the photo to enlarge

Manufacturer: HAGER

Number of sockets: 3

Wave impedance [Ω]: 75

Color: Black

See full description

Price:

89,08 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

RTV-SAT socket pass-through socket, series Lumina intense.

for analog and digital transmission
with clamps, for screw connection
with carrier ring

SERIES DESCRIPTION

Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

Number of sockets

3
Color

Black
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Version

through
Frequency Range [MHz]

5-2400
Backlight

NO
Variant

R TV sat
For the frame system

Yes
PKWIU

27.33.13.0

Wave impedance [Ω]

75
Shape

Square
Fixing

Expanding claws
Overprint

NO
Family

LUMINA INTENSE
Type

Flush-mounted
Surface protection

varnishing
Surface finish

matte
Terminal type

Threaded
F-type input

NO
Exact material

Material Metal

Other technical data

Model

Loop-through socket
DAB+

No
Number of modules (module system)

3
Tap loss at 2150 MHz

8 dB
Suitable for cable modem

Yes
Through loss at 2150 MHz

6 dB
Suitable for remote power supply

Yes
SAT frequency band

5 ... 2400 MHz
Type of fastening

Mounting with claw and screw
RAL-number (similar)

9004
Surface finishing

Matt
Material quality

Other
Anti-bacterial treatment

No
Device width

71 mm
Device depth

40 mm

Type of socket outlet

SAT
Mounting method

Flush-mounted
Tap loss at 860 MHz

10 dB
Number of outlets

3
Through loss at 860 MHz

4 dB
TV frequency band

5 ... 2400 MHz
Radio frequency band

88 ... 108 MHz
Shielding efficiency class

Class A
Colour

Black
Surface protection

Lacquered
Material

Other
Halogen free

Yes
Degree of protection (IP)

IP20
Device height

71 mm
Min. depth of built-in installation box

24 mm

Manufacturer details

Manufacturer

HAGER Polska Sp. z o. o.
Address

43-100 Tychy Fabryczna 10 Polska
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	12 pcs.	120 pcs.	2400 pcs.
Weight (kg)	1,296	12,960	300,000
Width (m)	0,210	0,470	1,200
Length (m)	0,090	0,230	1,090
Depth (m)	0,180	0,390	0,800
