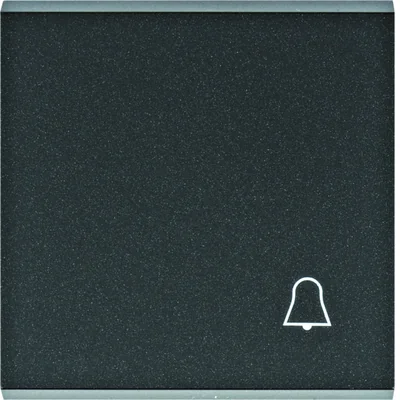

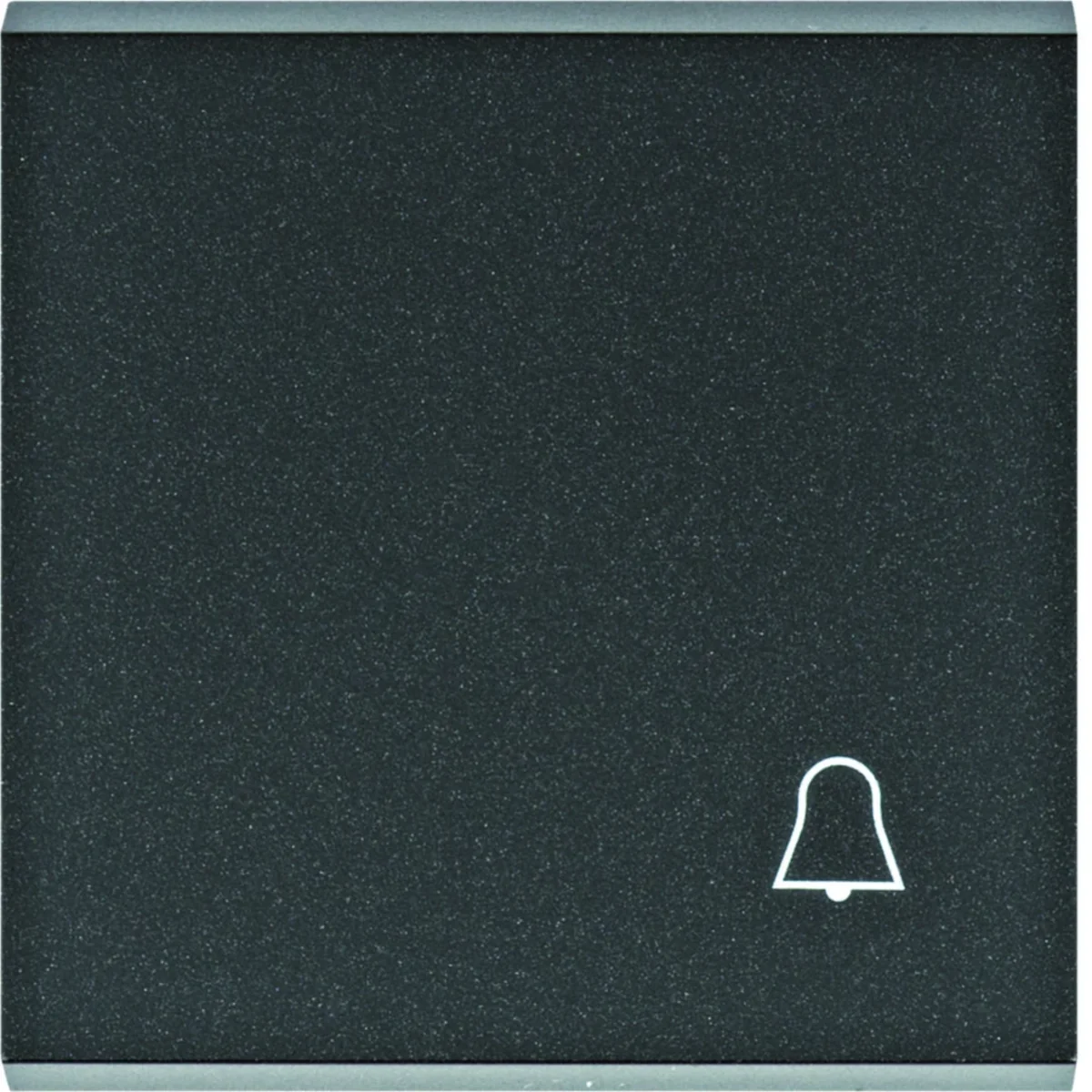

LUMINA Key with "Bell" black symbol WL6013

local index:
MAK004HAGE
Catalog No:
WL6013
EAN code:
8694407004109
Manufacturer: HAGER
Depth [mm]: 18
Color: Black
Material: Plastic
Price:
1,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modern designs of multi-apartment buildings, office space in the standard segment and offices require the use of economic solutions that are very beneficial for the investor.

The quality of materials and the way they are made must meet the technological requirements, ensure a high aesthetic and functional standard.

The new series of lumina fittings offers investor-friendly, economical solutions dedicated to development construction. With the increase in the number of electrical receivers in our homes, the demand for the required power supply points increases. The ideal solution is a double modular power socket for multiple frames. Thanks to the compact design, it is possible to connect two power receivers to the socket at the same time, and to mount the socket in a combination of multiple frames. An ideal economic solution with a high aesthetic and functional standard.

Modern, aesthetic design

  • Timeless universal design of the series with a wide range of recipients in mind.< /li>

High-quality switch mechanisms with self-clamps

  • The mechanism of the lumina series switch provides switching capacity up to 10AX. As standard, the connectors are equipped with screwless terminals, ensuring quick and easy assembly.

Durable and solid mounting frame

  • The mounting frame is made of made of steel sheet guarantees secure assembly and is not damaged on uneven surfaces.

Sure and fast

  • Modular construction of the lumina series in system of multiple frames ensures quick and easy installation of accessories - a professional solution for electrical installers.

Universal 2-fold sockets for multiple frames

  • Economic solution for residential construction.

Additional security

  • Each element of the lumina series is packed in an individual package, thanks to which products are secured during transport and during storage at the construction site.

Technical data

  • Depth [mm]
    18
  • Material
    Plastic
  • Family
    LUMINA
  • Height [mm]
    55
  • Color
    Black
  • Surface
    Matt
  • Width [mm]
    55
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    One-part rocker
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Black
  • With exchangeable lens/symbol
    No
  • Imprint/indication
    Symbol "bell"
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 18 pcs. 180 pcs. 7200 pcs.
Weight (kg) 0,009 0,217 2,560 127,400
Width (m) 0,054 0,095 0,400 0,800
Length (m) 0,018 0,070 0,235 1,150
Depth (m) 0,055 0,230 0,470 1,200
