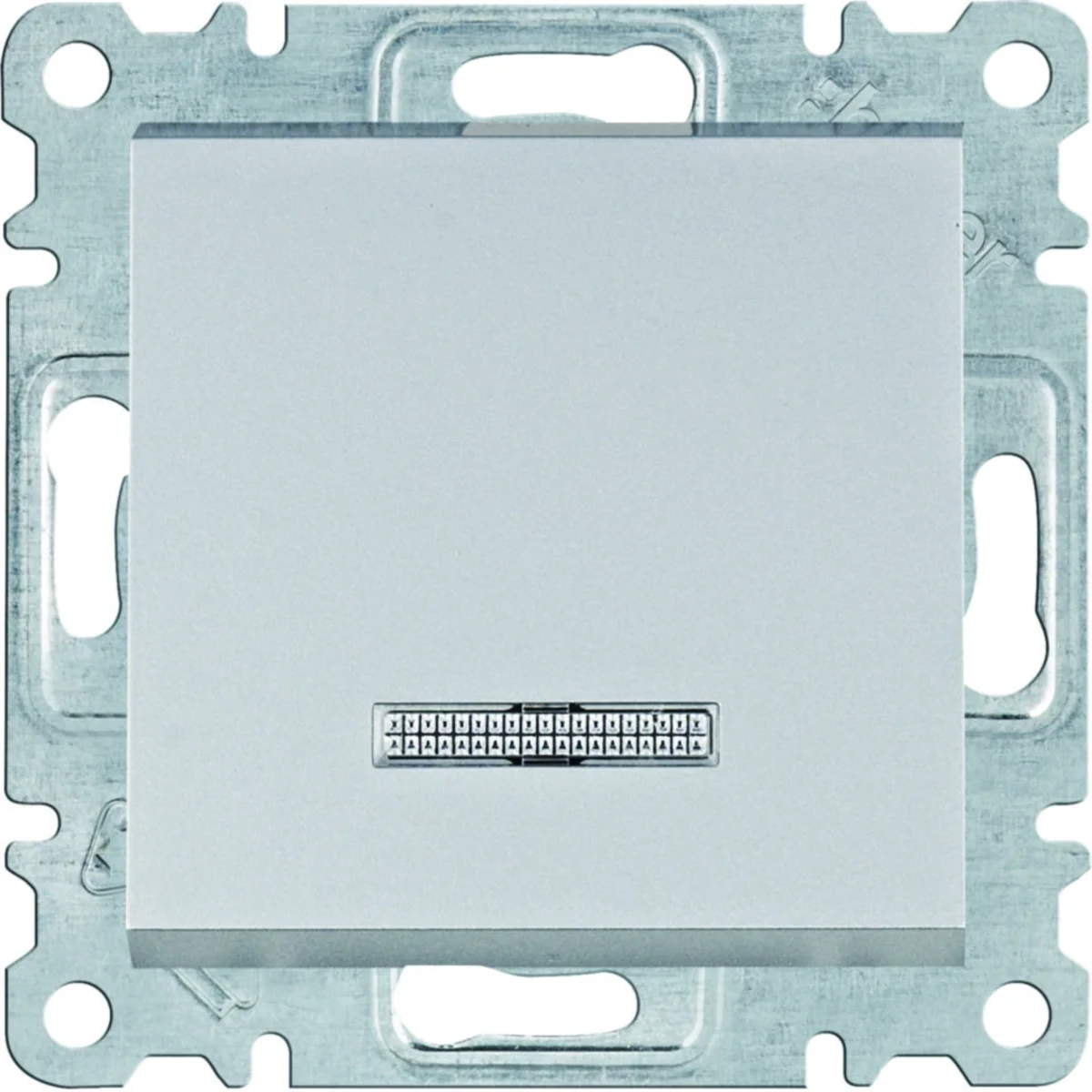

LUMINA Illuminated control switch 1-pole silver WL0212
local index:
MMP003HAGE
Catalog No:
WL0212
EAN code:
8694407003171
Price:
7,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control switch single-pole, series lumina intense. Standard accessories used to turn on/off lighting.
- < li>Self-clamping connectors: for wire: min. 2x1mm²; max. 2x2.5 mm²
- Compliance with the PN-IEC 60884-1:2006 standard.
SERIES DESCRIPTION
Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyLUMINA INTENSE
-
Width [mm]71
-
Height [mm]71
-
Surface finishmatte
-
BacklightYes
-
For the frame systemYes
-
Exact materialMaterial Metal
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeSingle
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorAnodized aluminum
-
Terminal typeThreadless
-
Protrusion depth [mm]26
-
Backlight colorOrange
Other technical data
-
Wiring systemOther
-
Assembly arrangementBasic element
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
IlluminationOptional
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box35 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityOther
-
Surface protectionUntreated
-
ColourSilver
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth26 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,057 | 0,708 | 7,080 | 182,334 |
| Width (m) | 0,071 | 0,215 | 0,475 | 1,200 |
| Length (m) | 0,041 | 0,090 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,185 | 0,390 | 0,800 |
