LUMINA Grounded power socket with contact shutters 16 A/250 VAC silver WL1042

Índice local:
MEE007HAGE
Número de catálogo:
WL1042
Código EAN:
8694407003379

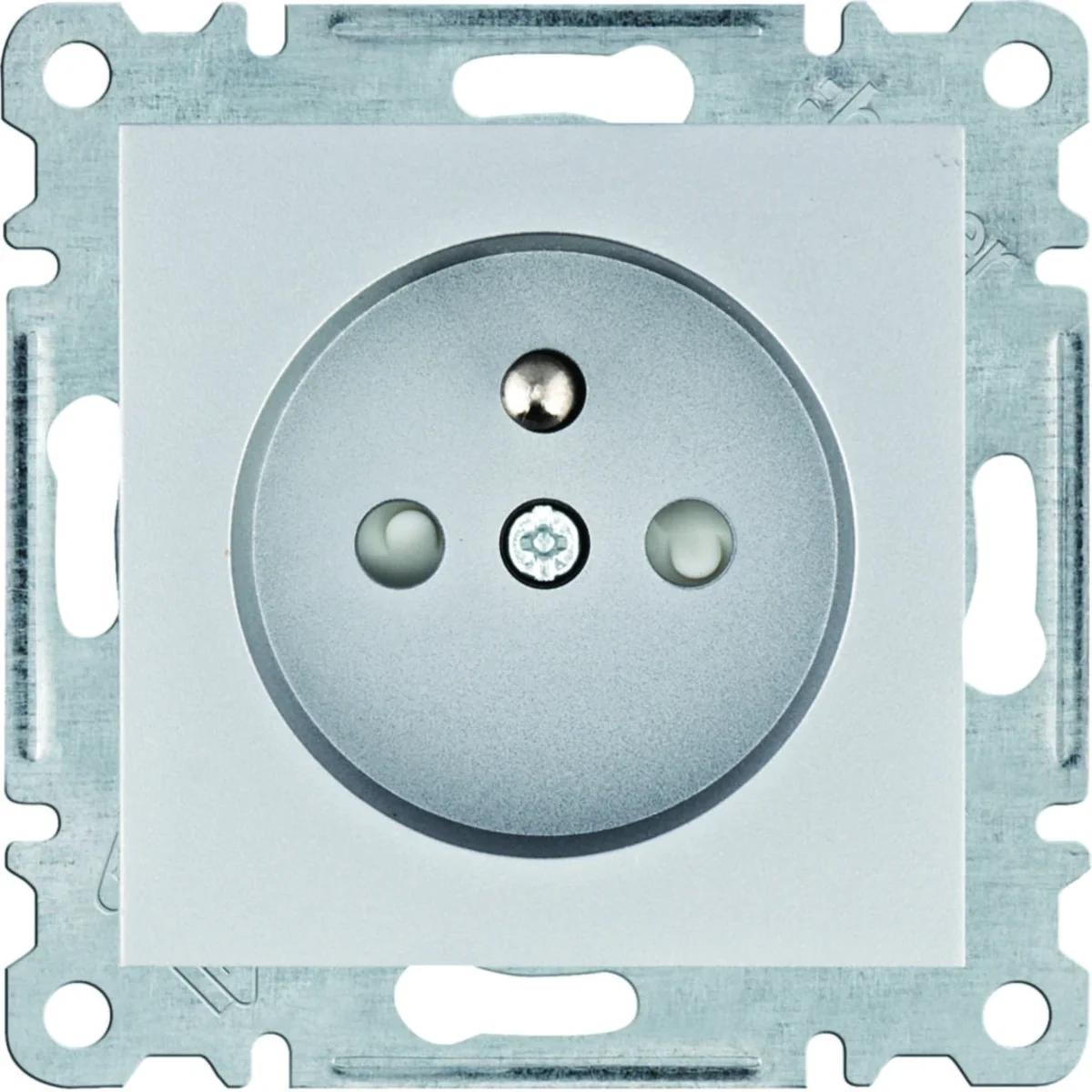

LUMINA Grounded power socket with contact shutters 16 A/250 VAC silver
LUMINA Grounded power socket with contact shutters 16 A/250 VAC silver

Haga clic en la foto para ampliar

Fabricante: HAGER
Number of sockets: 1
Color: Silver
Shape: Square
Ver descripción completa
Precio:
20,81 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Power socket with grounding, Lumina intense series.

  • Screw terminals for sockets: for wire: min. 2x1.5mm²; max. 2x2.5 mm².
  • Compliance with the PN-IEC 60884-1:2006 standard.

SERIES DESCRIPTION

Three classic colors that ;re open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Datos técnicos

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expansion clamps screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Degree of mechanical protection
    IK02
  • Accurate color
    Anodized aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal

Otros datos técnicos

  • Model
    Earthing pin
  • Protective contact
    Earthing clips
  • Number of active contacts (flat)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Silver
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    No
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Device width
    71 mm
  • Device depth
    44 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • Number of ports USB-A
    0
  • Max. current rating of USB power supply
    0 A
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • Number of loop throughs
    0
  • Colour of switch operator
    Silver
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP21
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Compliant with UK Building Regulations Part M
    No

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 12 uds. 120 uds. 2400 uds.
Peso (kg) 0,864 8,640 197,800
Ancho (m) 0,210 0,470 0,800
Longitud (m) 0,090 0,230 1,090
Profundidad (m) 0,180 0,390 1,200
