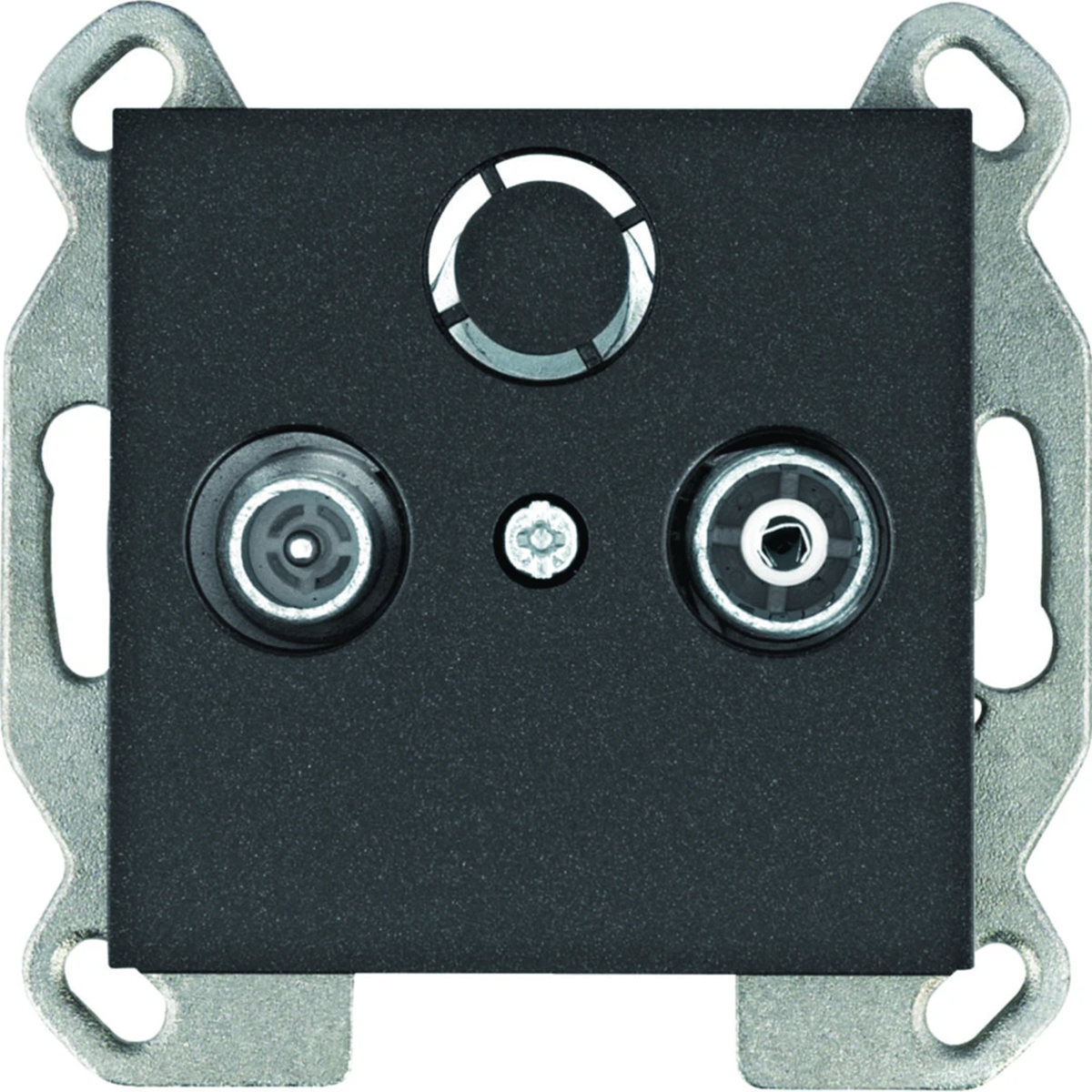

LUMINA End TV socket black WL3013

Name: LUMINA End TV socket black
Brand: HAGER
SKU: MEA021HAGE
Price: 15.17 PLN
Availability: InStock

local index:

MEA021HAGE

Catalog No:

WL3013

EAN code:

8694407003867

Click on the photo to enlarge

Manufacturer: HAGER

Number of sockets: 2

Wave impedance [Ω]: 75

Color: Black

See full description

Price:

15,17 €

gross / pcs.

(including VAT 23%)

Accessible 5 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Antenna RTV end socket, lumina intense series. The product catalog number is WL3013.

SERIES DESCRIPTION

Three classic colors that open up new arrangement possibilities . White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

Number of sockets

2
Color

Black
Material

Plastic
Installation

Flush-mounted
Surface

Matt
Family

LUMINA INTENSE
Attenuation [dB]

Connection (RF) at 87.5-108 MHz: 1.5
Clamp type

Threaded
Surface protection

varnishing
Surface finish

matte
Variant

R TV
For the frame system

Yes
PKWIU

27.33.13.0

Wave impedance [Ω]

75
Shape

Square
Fixing

Expanding claws
Overprint

NO
Type

Antenna
Level of security

IP20
Type

Flush-mounted
Version

Final
Frequency Range [MHz]

5-862
Backlight

NO
F-type input

NO
Exact material

Material Metal

Other technical data

Model

End socket
DAB+

No
Number of modules (module system)

2
Tap loss at 860 MHz

2 dB
Suitable for cable modem

Yes
Suitable for remote power supply

Yes
SAT frequency band

5 ... 862 MHz
Type of fastening

Mounting with claw and screw
RAL-number (similar)

9004
Surface finishing

Matt
Material quality

Other
Anti-bacterial treatment

No
Device width

71 mm
Device depth

40 mm

Type of socket outlet

Other
Mounting method

Flush-mounted
Cover

Central cover plate
Number of outlets

2
TV frequency band

5 ... 862 MHz
Radio frequency band

5 ... 862 MHz
Shielding efficiency class

Class A
Colour

Black
Surface protection

Lacquered
Material

Other
Halogen free

Yes
Degree of protection (IP)

IP20
Device height

71 mm
Min. depth of built-in installation box

24 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10 Polska
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	12 pcs.	120 pcs.	2400 pcs.	12 pcs.	120 pcs.	2400 pcs.
Weight (kg)	1,170	11,760	235,200	1,170	11,760	235,200
Width (m)	0,210	0,470	1,200	0,210	0,470	1,200
Length (m)	0,090	0,230	1,090	0,090	0,230	1,090
Depth (m)	0,180	0,390	0,800	0,180	0,390	0,800
