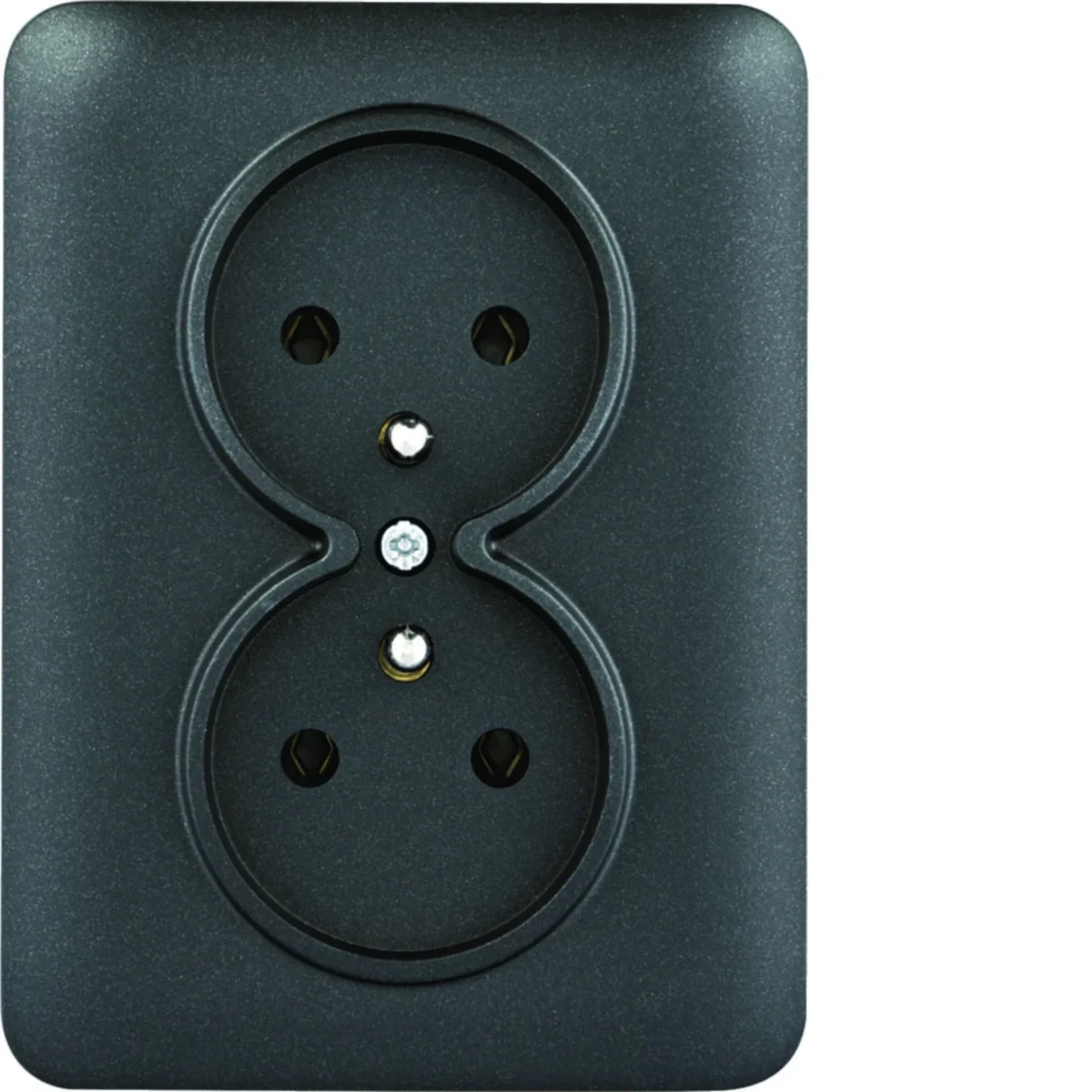

LUMINA Double power socket with earthing complete 16A/250VAC black WL1223
local index:
MEE015HAGE
Catalog No:
WL1223
EAN code:
8694407003508
Price:
5,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double socket with earthing from the Lumina intense series.
SERIES DESCRIPTION
Three classic colors that open up new possibilities arrangement. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.
Technical data
-
Number of sockets2
-
ShapeRectangular
-
FixingExpansion clamps screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Degree of mechanical protectionIK02
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialMaterial Metal
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyLUMINA INTENSE
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemNO
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9004
-
LockableNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width81 mm
-
Device depth48 mm
-
Protective contactYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourBlack
-
TransparentNo
-
Eject-mechanismNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK02
-
Device height109 mm
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 1200 pcs. |
| Weight (kg) | 0,093 | 1,179 | 12,480 | 146,800 |
| Width (m) | 0,108 | 0,295 | 0,505 | 1,200 |
| Length (m) | 0,049 | 0,092 | 0,315 | 1,070 |
| Depth (m) | 0,080 | 0,200 | 0,420 | 0,800 |
