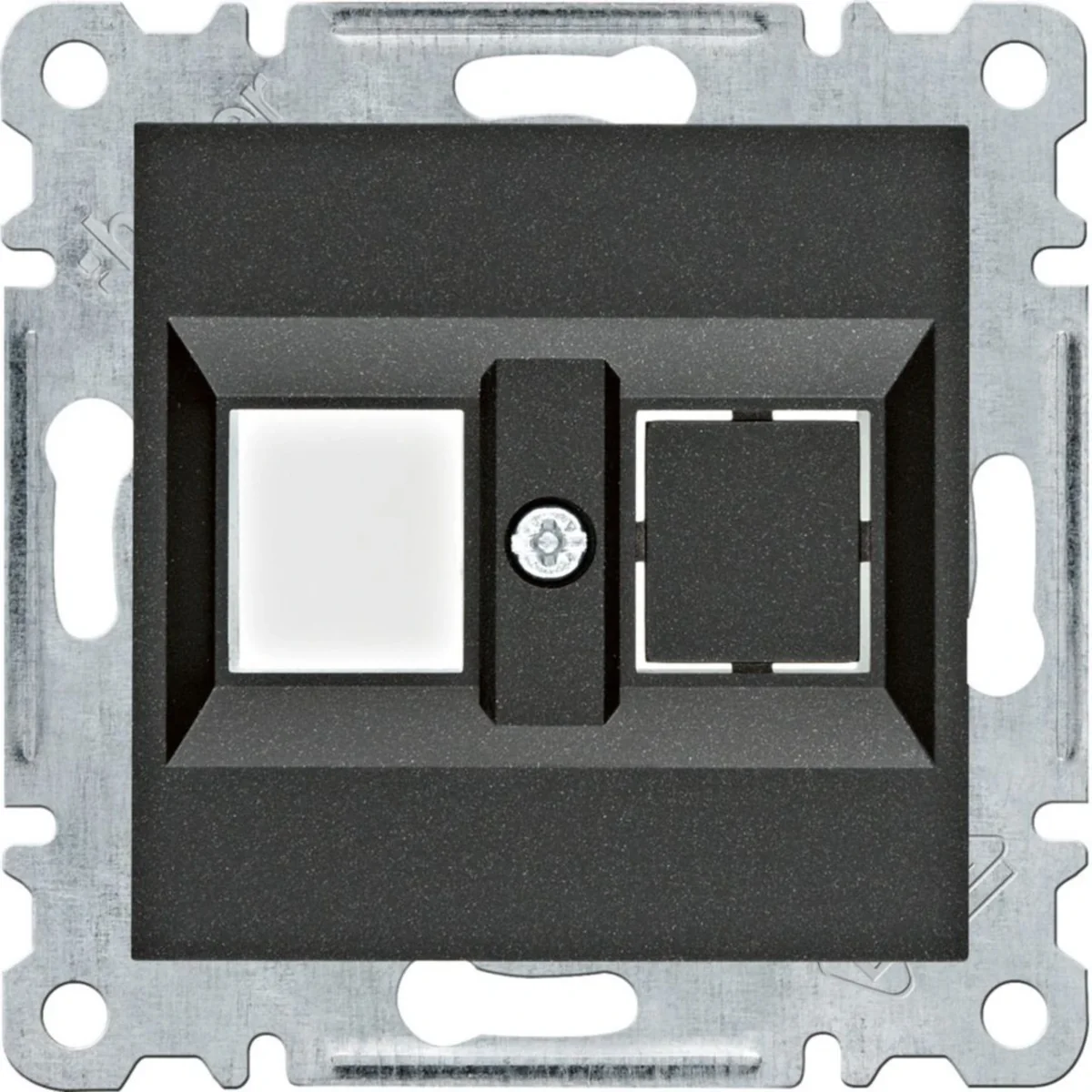

LUMINA Double Keystone Jack black WL2323

local index:
MAP003HAGE
Catalog No:
WL2323
EAN code:
8694407003805
Manufacturer: HAGER
Color: Silver
Shape: Square
Material: Plastic | Metal
Price:
3,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Keystone RJ45 double board from the lumina intense series. Product part number is WL2323.

  • With carrier plate.

Technical data

  • Color
    Silver
  • Material
    Plastic Metal
  • Family
    LUMINA INTENSE
  • Surface finish
    matte
  • PKWIU
    27.33.13.0
  • Shape
    Square
  • Type
    To the internet socket
  • Surface protection
    varnishing
  • For modular equipment
    Not applicable

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Black
  • Type of fastening
    Mounting with claw and screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Utilization
    Modular Jack
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    No
  • Number of modules (module system)
    2
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    34 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,045 0,610 6,650 156,000
Width (m) 0,071 0,190 0,390 0,800
Length (m) 0,033 0,095 0,230 1,070
Depth (m) 0,071 0,215 0,470 1,200
