LUMINA Double earthed power socket with contact shutter 16A/250VAC white WL1340

local index:
MEE025HAGE
Catalog No:
WL1340
EAN code:
8694407002716
LUMINA Double earthed power socket with contact shutter 16A/250VAC white
LUMINA Double earthed power socket with contact shutter 16A/250VAC white

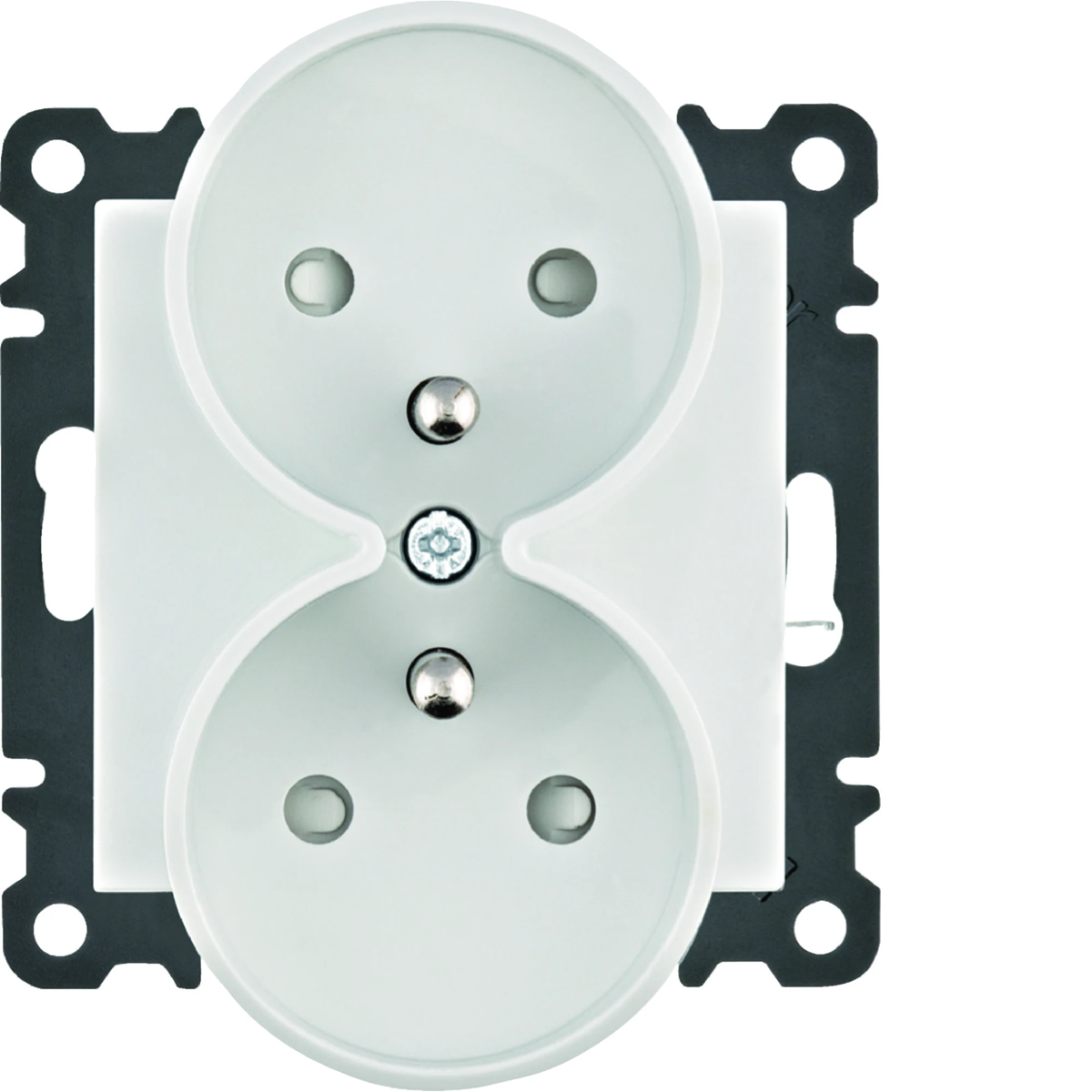

Click on the photo to enlarge

Manufacturer: HAGER
Number of sockets: 2
Color: White
Shape: Rectangular
See full description
Price:
14,05 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 434 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electrical socket from the lumina series, from the manufacturer Hager. The product part number is WL1340.



FEATURES

  • Double .
  • 2-pole grounded; ground pin.
  • Extended contact protection.
  • Baseless module.
  • Screw terminals.
  • Color white.
  • Rated current 16A.
    • < li>Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.
  • With expansion lugs, for screw connection.

Technical data

  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK02
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Earthing pin
  • Protective contact
    Round
  • Number of active contacts (flat)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of units
    0
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9016
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    No
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Device width
    71 mm
  • Device depth
    56 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • Number of ports USB-A
    0
  • Max. current rating of USB power supply
    0 A
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Number of loop throughs
    0
  • Colour of switch operator
    White
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP21
  • Device height
    86 mm
  • Min. depth of built-in installation box
    35 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Compliant with UK Building Regulations Part M
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 12 pcs. 120 pcs. 1200 pcs.
Weight (kg) 0,870 8,760 87,600
Width (m) 0,290 0,500 1,200
Length (m) 0,090 0,310 1,070
Depth (m) 0,200 0,420 0,800
