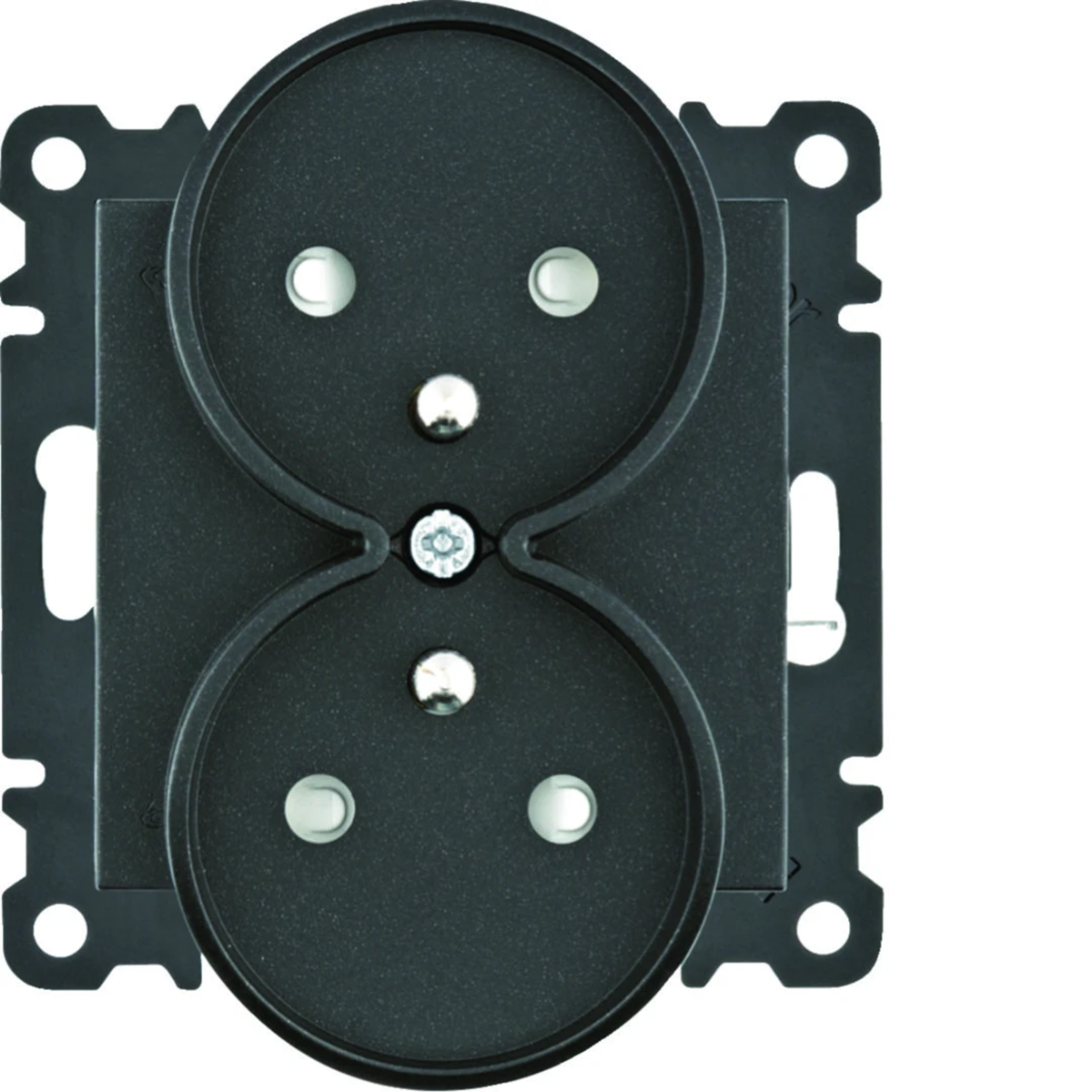

LUMINA Double earthed power socket with contact shutter 16A/250VAC black WL1343

local index:
MEE027HAGE
Catalog No:
WL1343
EAN code:
8694407002730
Manufacturer: HAGER
Number of sockets: 2
Color: Black
Shape: Rectangular
Price:
5,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 262 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket from the lumina series, from the manufacturer Hager. The product part number is WL1343.



FEATURES

  • Double .
  • 2-pole grounded; ground pin.
  • Extended contact protection.
  • Baseless module.
  • Screw terminals.
  • Color black.
  • Rated current 16A.
  • < li>Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.
  • With expansion lugs, for screw connection.

Technical data

  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Black
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Degree of mechanical protection
    IK02
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9004
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    56 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK02
  • Device height
    86 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 1200 pcs.
Weight (kg) 0,073 1,051 11,260 134,600
Width (m) 0,071 0,295 0,505 1,200
Length (m) 0,041 0,092 0,315 1,070
Depth (m) 0,071 0,200 0,420 0,800
