LUMINA Double earthed power socket complete 16A/250VAC silver WL1222

local index:
MEE014HAGE
Catalog No:
WL1222
EAN code:
8694407003492
Manufacturer: HAGER
Number of sockets: 2
Color: Silver
Shape: Rectangular
Price:
5,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

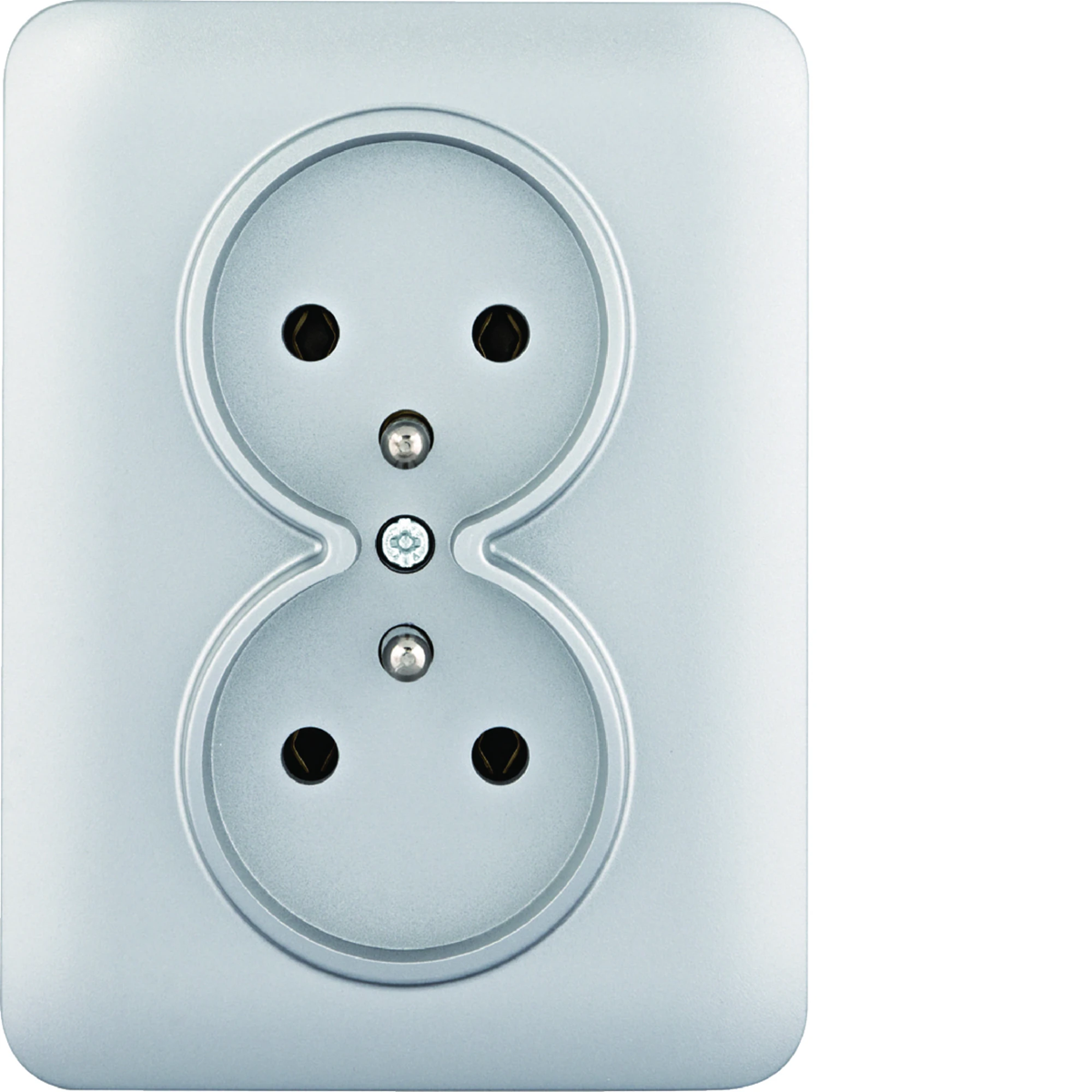

Double socket with earthing from the Lumina intense series.

SERIES DESCRIPTION

Three classic colors that open up new possibilities arrangement. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    Expansion clamps screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Degree of mechanical protection
    IK02
  • Accurate color
    Anodized aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    81 mm
  • Device depth
    48 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Silver
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK02
  • Device height
    109 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 1200 pcs.
Weight (kg) 0,093 1,179 12,480 146,800
Width (m) 0,108 0,295 0,505 1,200
Length (m) 0,049 0,092 0,315 1,070
Depth (m) 0,080 0,200 0,420 0,800
