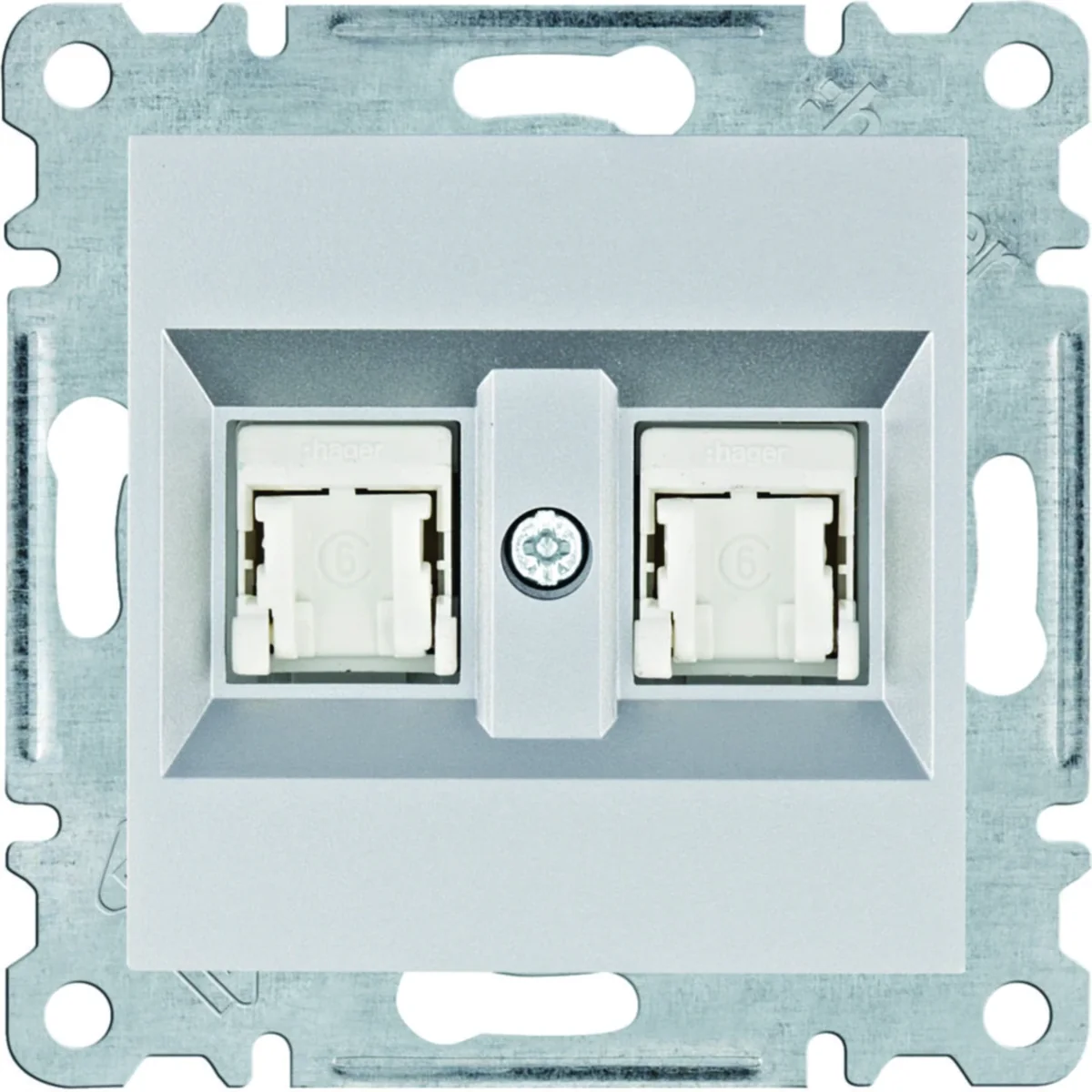

LUMINA Double computer socket RJ45 cat.6 UTP silver WL2162

local index:
MEI011HAGE
Catalog No:
WL2162
EAN code:
8694407003713
Manufacturer: HAGER
Category: 6
Color: Silver
Shape: Square
Price:
24,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Computer socketdouble RJ45 category 6 UTP,lumina intense series.

  • Bandwidth: max . 100MHz.
  • Ø cable: 0.5…0.65 mm (AWG 24-22).



SERIES DESCRIPTION

Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.

Technical data

  • Category
    6
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Surface finish
    matte
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Dust cover
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    LUMINA INTENSE
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    Material Metal

Other technical data

  • Surface mounting
    No
  • Type of fastening
    Screwing
  • With buses/couplings
    Yes
  • Colour
    Silver
  • Connection type
    Insulation displacement connector
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    71 mm
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with central cover plate
  • Category
    6
  • RAL-number
    9006
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    Yes
  • Outlet direction
    Straight
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    32 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,069 0,911 9,500 212,000
Width (m) 0,071 0,215 0,475 1,200
Length (m) 0,033 0,090 0,235 1,090
Depth (m) 0,071 0,185 0,390 0,800
