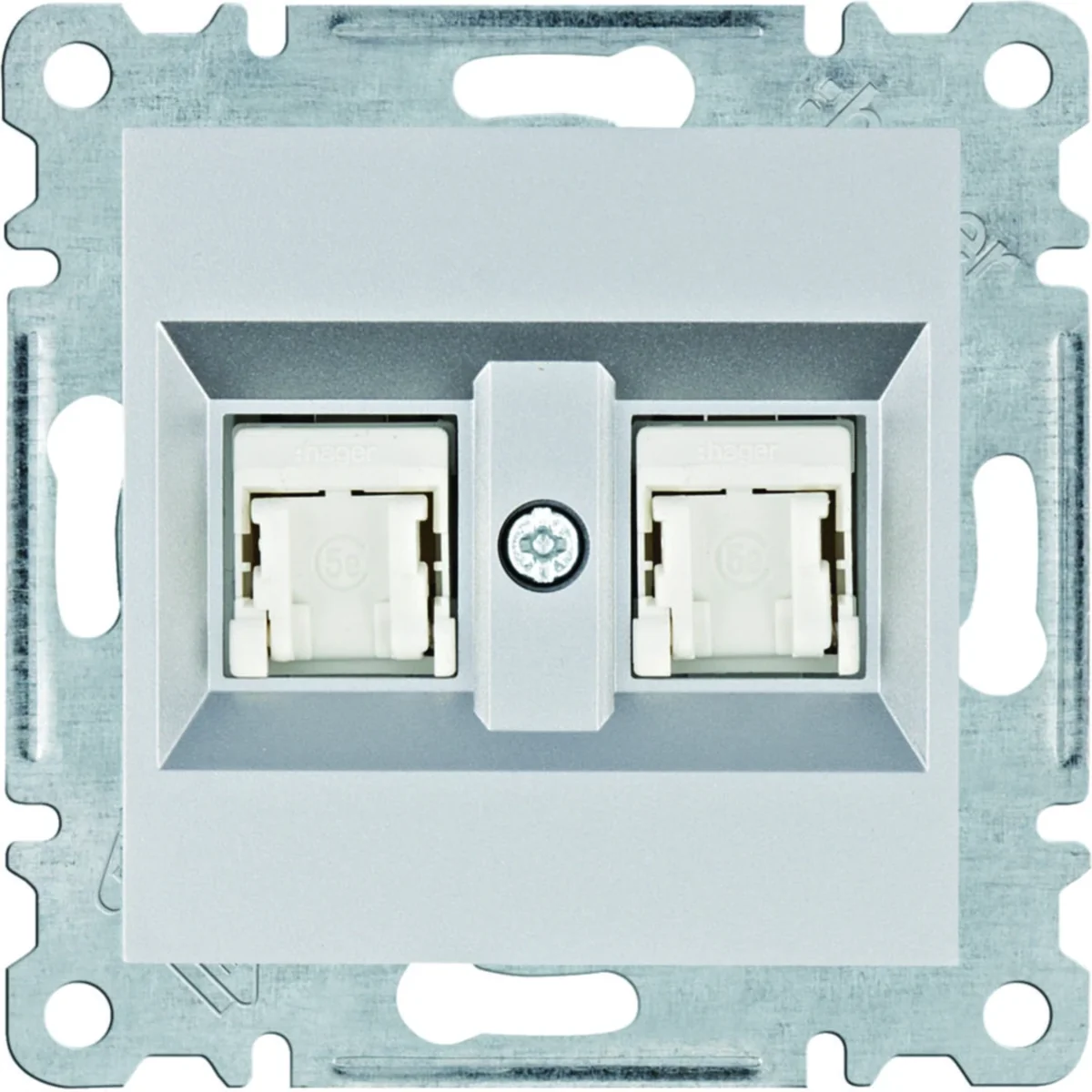

LUMINA Double computer socket RJ45 cat.5e UTP silver WL2122
local index:
MEI028HAGE
Catalog No:
WL2122
EAN code:
8694407003638
Price:
18,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Internet computer socket from the lumina intense series, from the manufacturer Hager. The product part number is WL2122.
FEATURES
- Double. < li>Frequency bandwidth: max. 100 MHz.
- Transition resistance: < 20 mΩ.
- With spreaders, for screw connection.
- With IDC terminals.
- Ø wire: 0.5…0.65 mm (AWG 24-22).
Technical data
-
Category5e
-
ShapeSquare
-
FixingExpanding claws
-
SurfaceMatt
-
FamilyLUMINA INTENSE
-
Connector typeRJ49
-
Surface protectionvarnishing
-
Accurate colorAnodized aluminum
-
For the frame systemYes
-
Dust coverYes
-
PKWIU27.33.13.0
-
ColorSilver
-
MaterialPlastic
-
InstallationRecessed Surface-mounted
-
TypeInternet
-
TypeRecessed Surface-mounted
-
VersionUTP
-
Surface finishmatte
-
VariantRJ45 (twisted pair)
-
Number of internet sockets2
-
Exact materialMaterial Metal
Other technical data
-
Surface mountingNo
-
Type of fasteningScrewing
-
Type of connectorRJ45 8(8)
-
Category5E
-
RAL-number9006
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversYes
-
Outlet directionStraight
-
Mechanical codingNo
-
Device width71 mm
-
Device depth39 mm
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with central cover plate
-
With buses/couplingsYes
-
ColourSilver
-
Connection typeInsulation displacement connector
-
Shielded housingNo
-
With label spaceNo
-
Separate strain reliefNo
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height71 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,066 | 0,878 | 9,170 | 205,400 |
| Width (m) | 0,071 | 0,215 | 0,475 | 1,200 |
| Length (m) | 0,033 | 0,090 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,185 | 0,390 | 0,800 |
