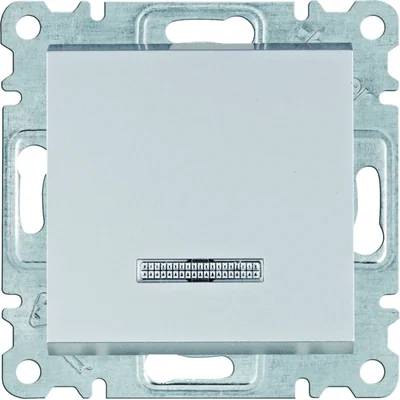

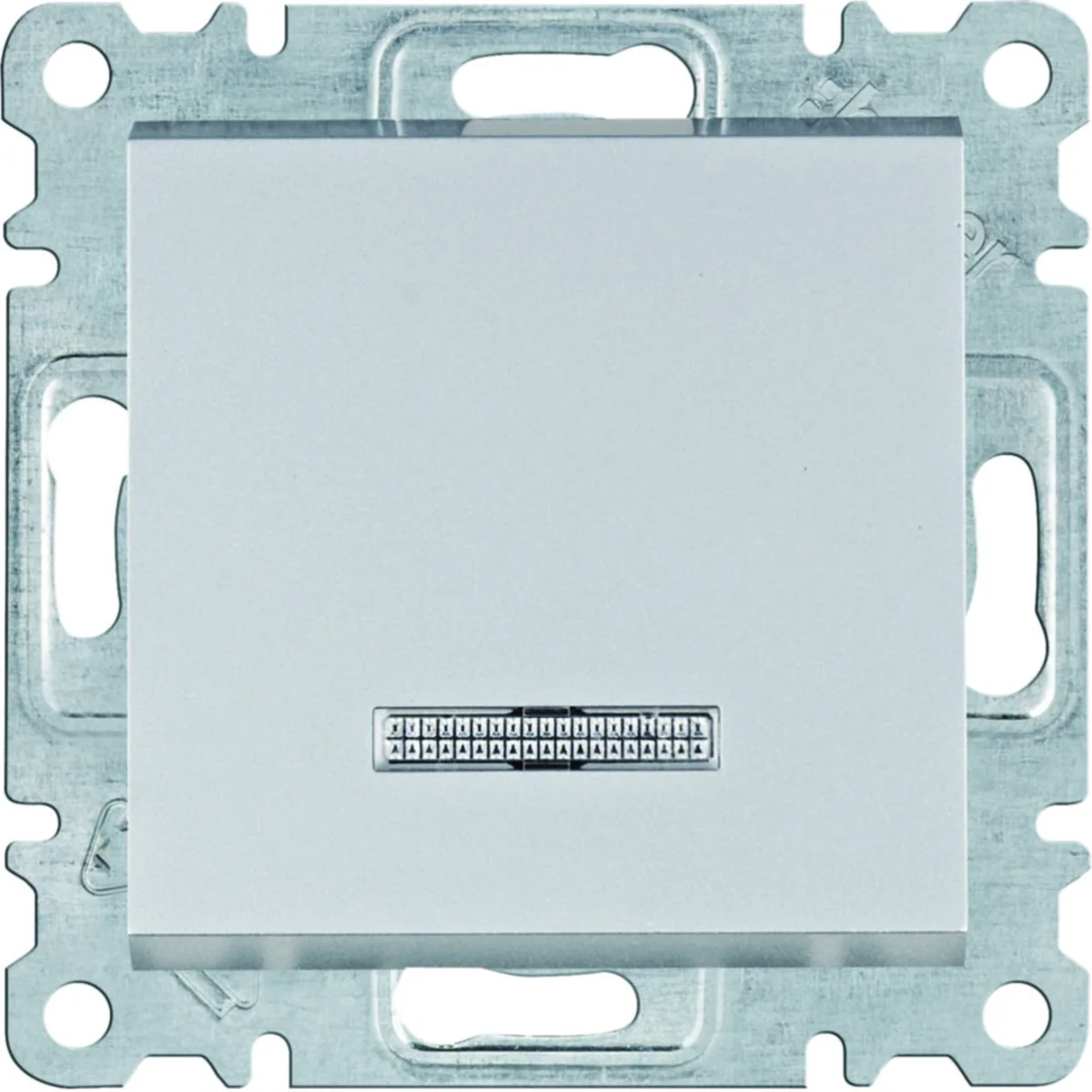

LUMINA Control switch with backlight universal/stair silver WL0222
local index:
MMS004HAGE
Catalog No:
WL0222
EAN code:
8694407003195
Price:
7,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Universal/stair control switch from the lumina intense series, from Hager. Product catalog number is WL0222.
- With expansion lugs, for screw connection.
- Quick Connect.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationRecessed Surface-mounted
-
Rated current [A]10
-
FamilyLUMINA INTENSE
-
Width [mm]71
-
Height [mm]71
-
Surface finishmatte
-
BacklightYes
-
For the frame systemYes
-
Number of keys1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeRecessed Surface-mounted
-
Surface protectionvarnishing
-
Accurate colorAnodized aluminum
-
Mounting depth [mm]26
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
IlluminationOptional
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box35 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityOther
-
Surface protectionUntreated
-
ColourSilver
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth26 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,057 | 0,708 | 7,080 | 183,774 |
| Width (m) | 0,071 | 0,215 | 0,475 | 1,200 |
| Length (m) | 0,041 | 0,090 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,185 | 0,390 | 0,800 |
