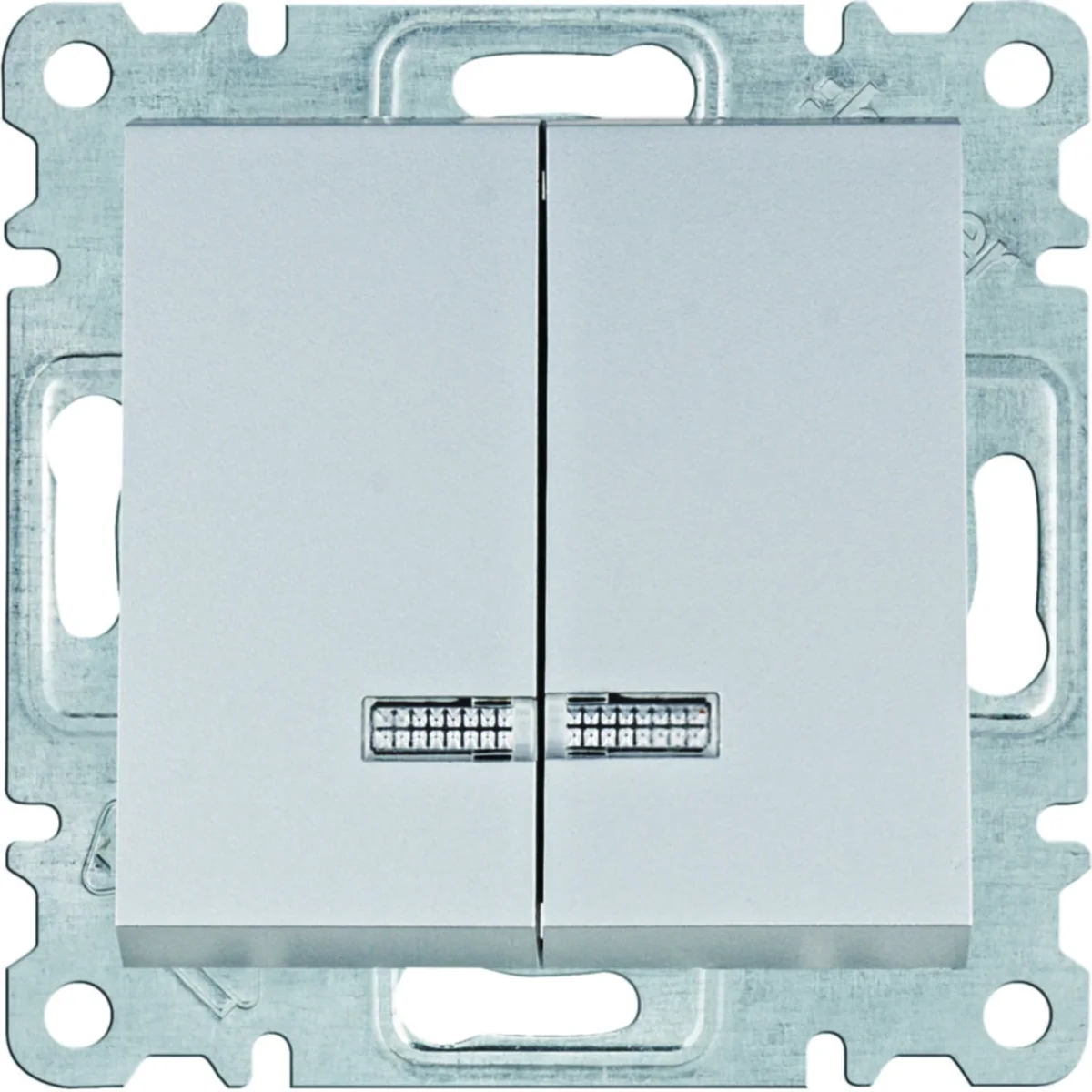

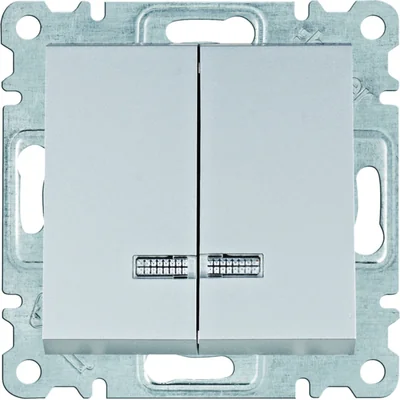

LUMINA Control switch with backlight serial/candlestick silver WL0242

local index:
MMT002HAGE
Catalog No:
WL0242
EAN code:
8694407003218
Manufacturer: HAGER
Depth [mm]: 42
Number of keys: 2
Color: Silver
Price:
8,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Serial/candlestick control switch from the lumina intense series, from Hager. The product catalog number is WL0242.



FEATURES

  • With expansion lugs, for screw connection.
  • Quick Connect.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    LUMINA INTENSE
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    matte
  • Backlight
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Recessed Surface-mounted
  • Surface protection
    varnishing
  • Accurate color
    Anodized aluminum
  • Mounting depth [mm]
    26
  • Exact material
    Material Metal

Other technical data

  • Wiring system
    Series switch
  • Assembly arrangement
    Basic element
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Illumination
    Optional
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    35 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Control and orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    26 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,056 0,890 9,590 216,800
Width (m) 0,071 0,190 0,410 0,800
Length (m) 0,041 0,090 0,310 1,050
Depth (m) 0,071 0,215 0,500 1,200
