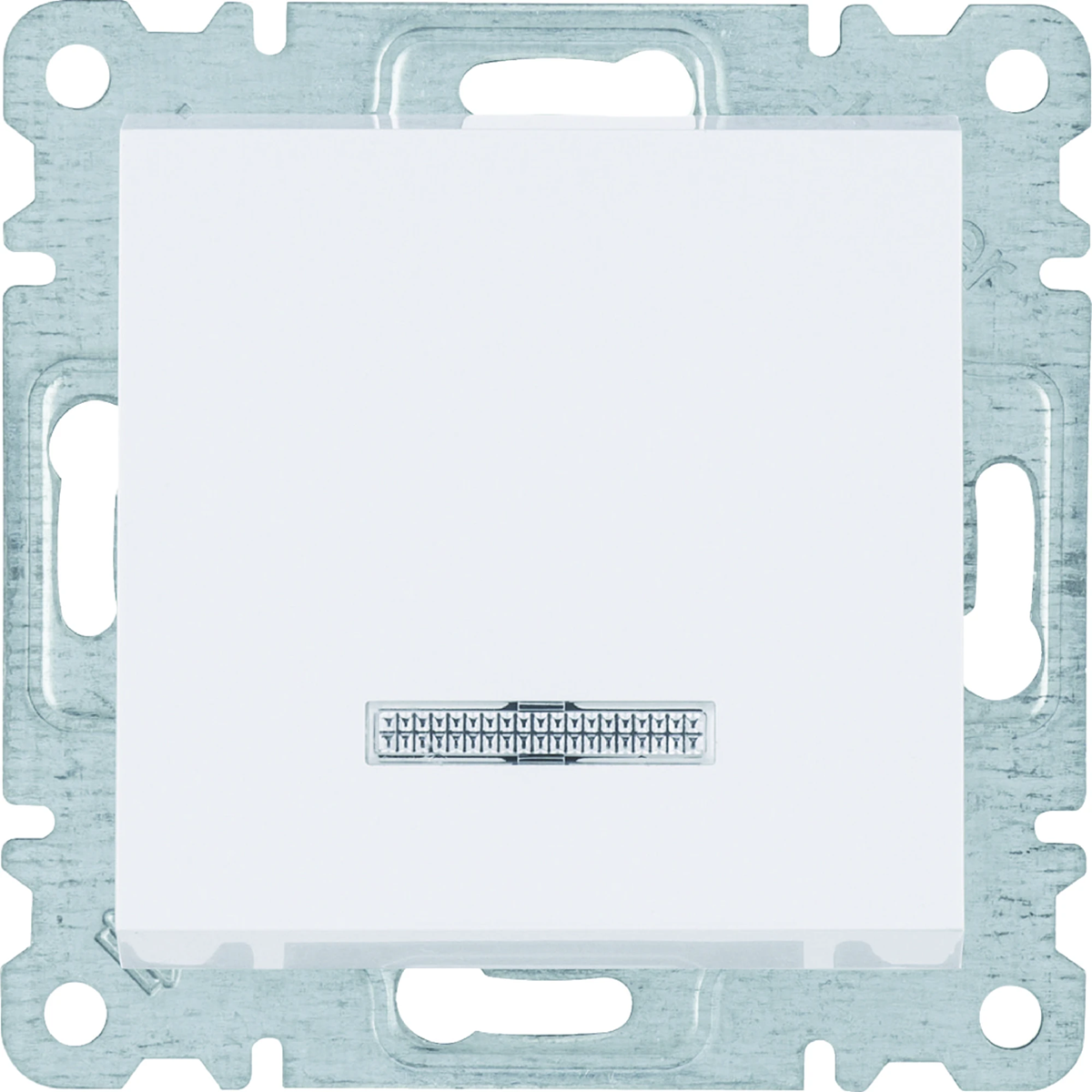

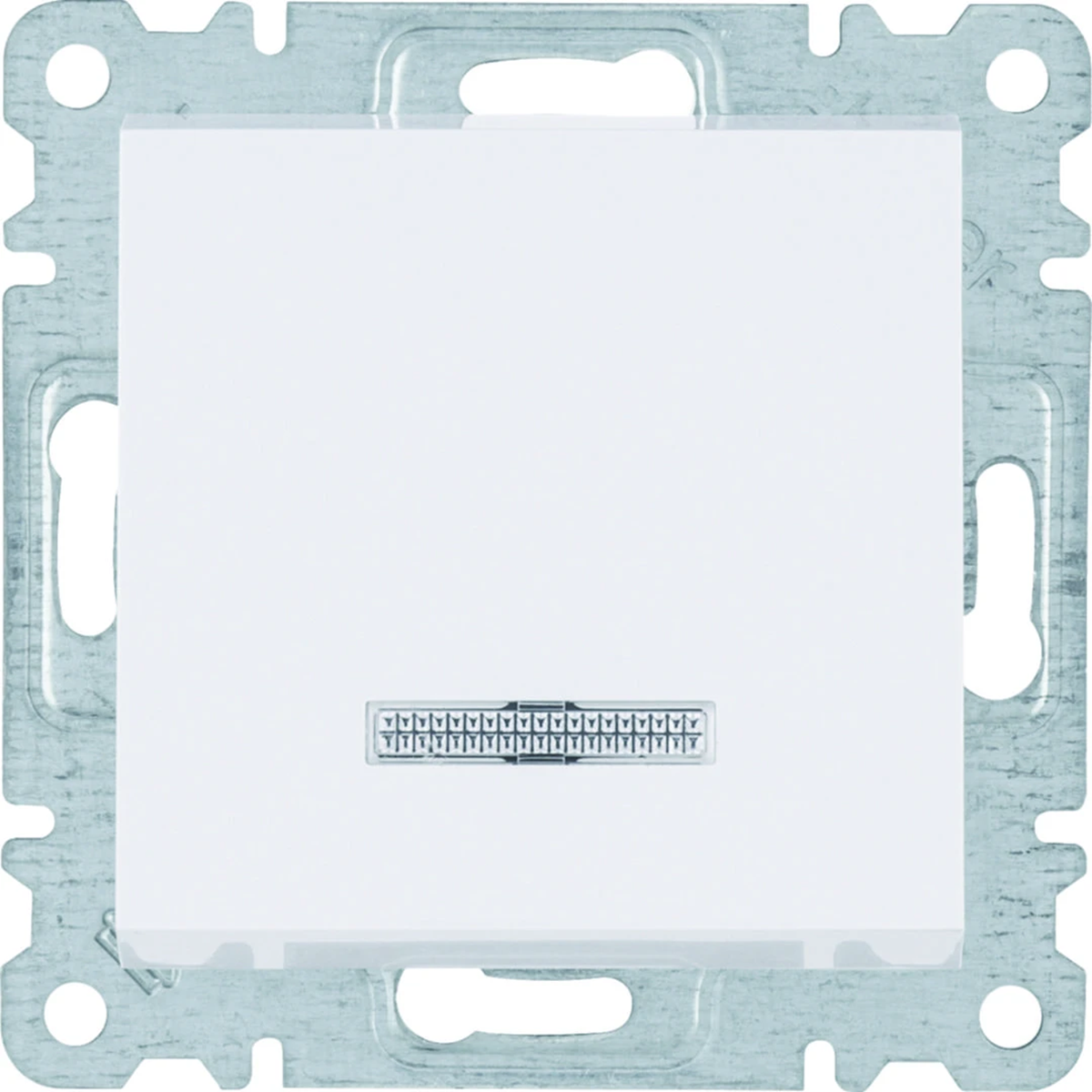

LUMINA Control switch with backlight 1-pole white WL0210

local index:
MMP002HAGE
Catalog No:
WL0210
EAN code:
8694407000316
Manufacturer: HAGER
Depth [mm]: 42
Number of keys: 1
Color: White
Price:
6,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Control switch single-pole, series lumina passion. Standard accessory used to turn on/off lighting.

    < li>Self-clamping connectors: for wire: min. 2x1mm²; max. 2x2.5 mm²
  • Compliance with the PN-IEC 60884-1:2006 standard.



SERIES DESCRIPTION

Thanks to the noble materials used for the production of frames, an ordinary connector becomes a unique detail that will delight even the most demanding &órcócreators in their own style.

Technical data

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    LUMINA PASSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    Yes
  • For the frame system
    Yes
  • Exact material
    Material Metal
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    26
  • Backlight color
    Orange

Other technical data

  • Wiring system
    Other
  • Assembly arrangement
    Basic element
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9016
  • Illumination
    Optional
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    35 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Control and orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    26 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,057 0,840 8,910 201,200
Width (m) 0,071 0,190 0,390 0,800
Length (m) 0,041 0,095 0,235 1,100
Depth (m) 0,071 0,220 0,480 1,200
