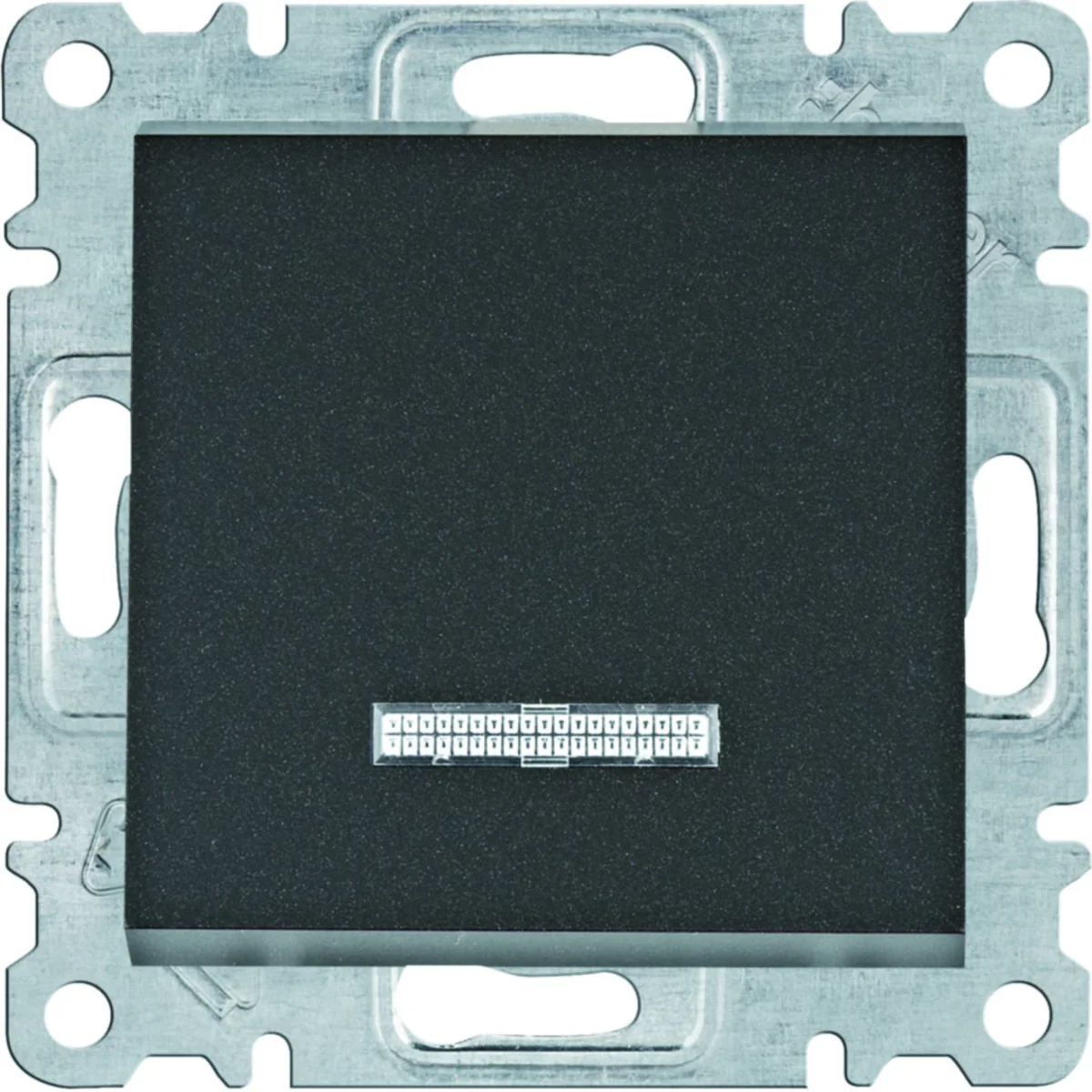

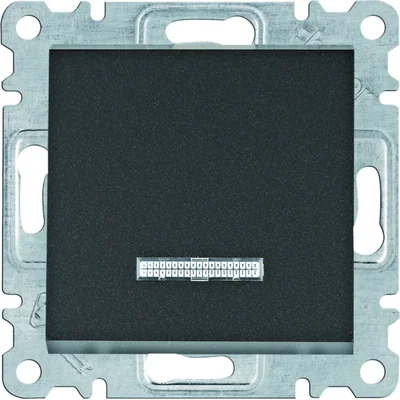

LUMINA Control switch with backlight 1-pole black WL0213
local index:
MMP004HAGE
Catalog No:
WL0213
EAN code:
8694407003188
Price:
7,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control switch single-pole, series lumina intense. Standard accessories used to turn on/off lighting.
- < li>Self-clamping connectors: for wire: min. 2x1mm²; max. 2x2.5 mm²
- Compliance with the PN-IEC 60884-1:2006 standard.
SERIES DESCRIPTION
Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.
Technical data
-
Depth [mm]42
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyLUMINA INTENSE
-
Width [mm]71
-
Height [mm]71
-
Surface finishmatte
-
Terminal typeThreadless
-
Protrusion depth [mm]26
-
Backlight colorOrange
-
Number of keys1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeSingle
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
BacklightYes
-
For the frame systemYes
-
Exact materialMaterial Metal
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOther
-
Assembly arrangementBasic element
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth26 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityOther
-
Surface protectionUntreated
-
ColourBlack
-
IlluminationOptional
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box35 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,057 | 0,835 | 8,925 | 203,500 |
| Width (m) | 0,071 | 0,190 | 0,400 | 0,800 |
| Length (m) | 0,041 | 0,095 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,220 | 0,470 | 1,200 |
