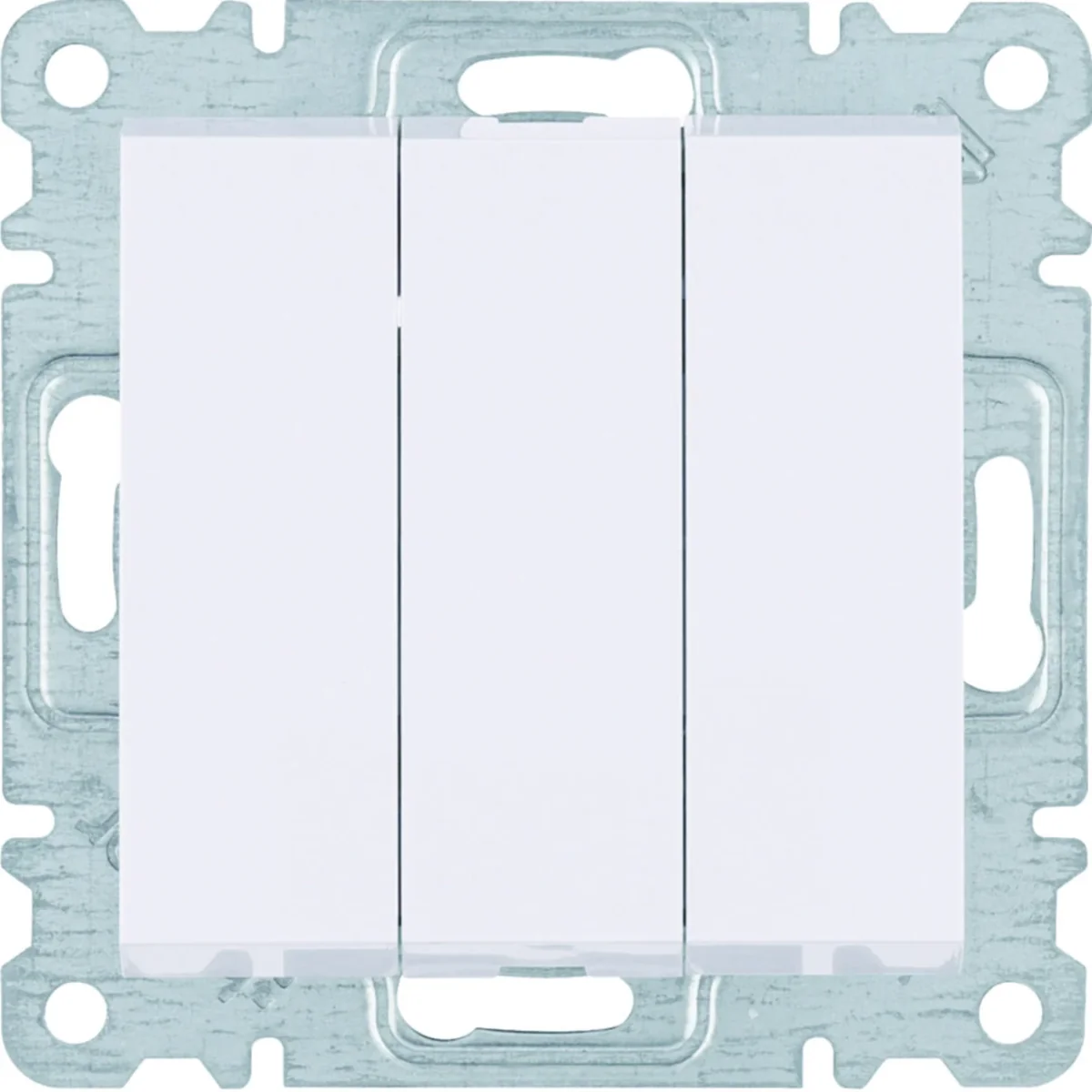

LUMINA 3-gang 3-pole white switch WL0070
local index:
MMW001HAGE
Catalog No:
WL0070
EAN code:
8694407000279
Price:
10,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-gang switch from the lumina soul series, from Hager. The product part number is WL0070.
FEATURES
- 3-pole. < li>For screw connection.
Technical data
-
Depth [mm]42
-
ColorWhite
-
Number of poles3
-
FixingExpanding claws
-
Rated current [A]10
-
FamilyLUMINA SOUL
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys3
-
ShapeSquare
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeMulti-key
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface finishShiny
-
Mounting depth [mm]26
-
Exact materialMaterial Metal
Other technical data
-
Wiring systemOff switch 3x1-pole
-
Assembly arrangementBasic element
-
Number of rockers3
-
Type of fasteningMounting with claw and screw
-
MaterialOther
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9016
-
IlluminationOptional
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth26 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityOther
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeScrewed terminal
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box35 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,060 | 0,925 | 9,810 | 219,200 |
| Width (m) | 0,071 | 0,190 | 0,390 | 0,800 |
| Length (m) | 0,044 | 0,095 | 0,230 | 1,050 |
| Depth (m) | 0,071 | 0,220 | 0,475 | 1,200 |
