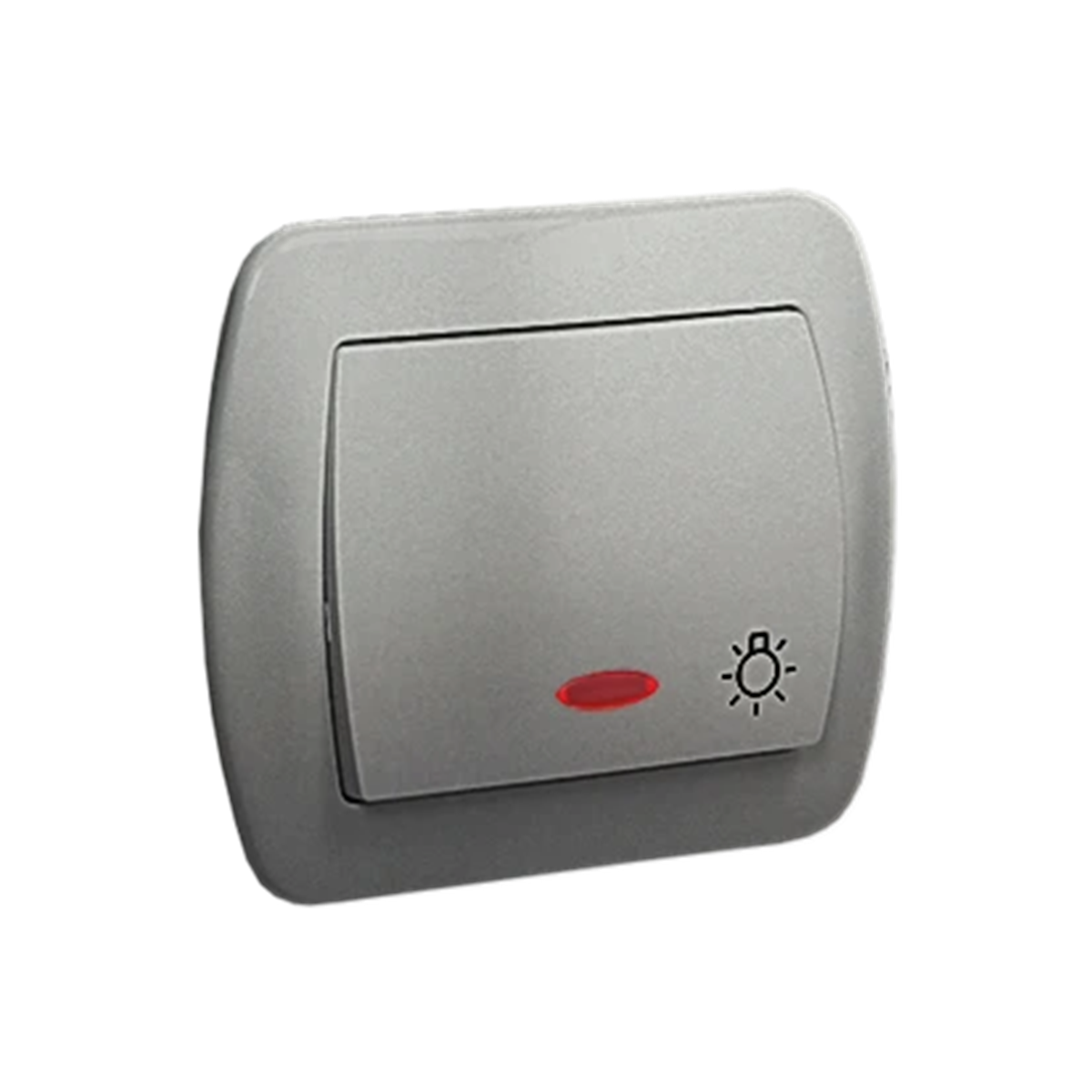

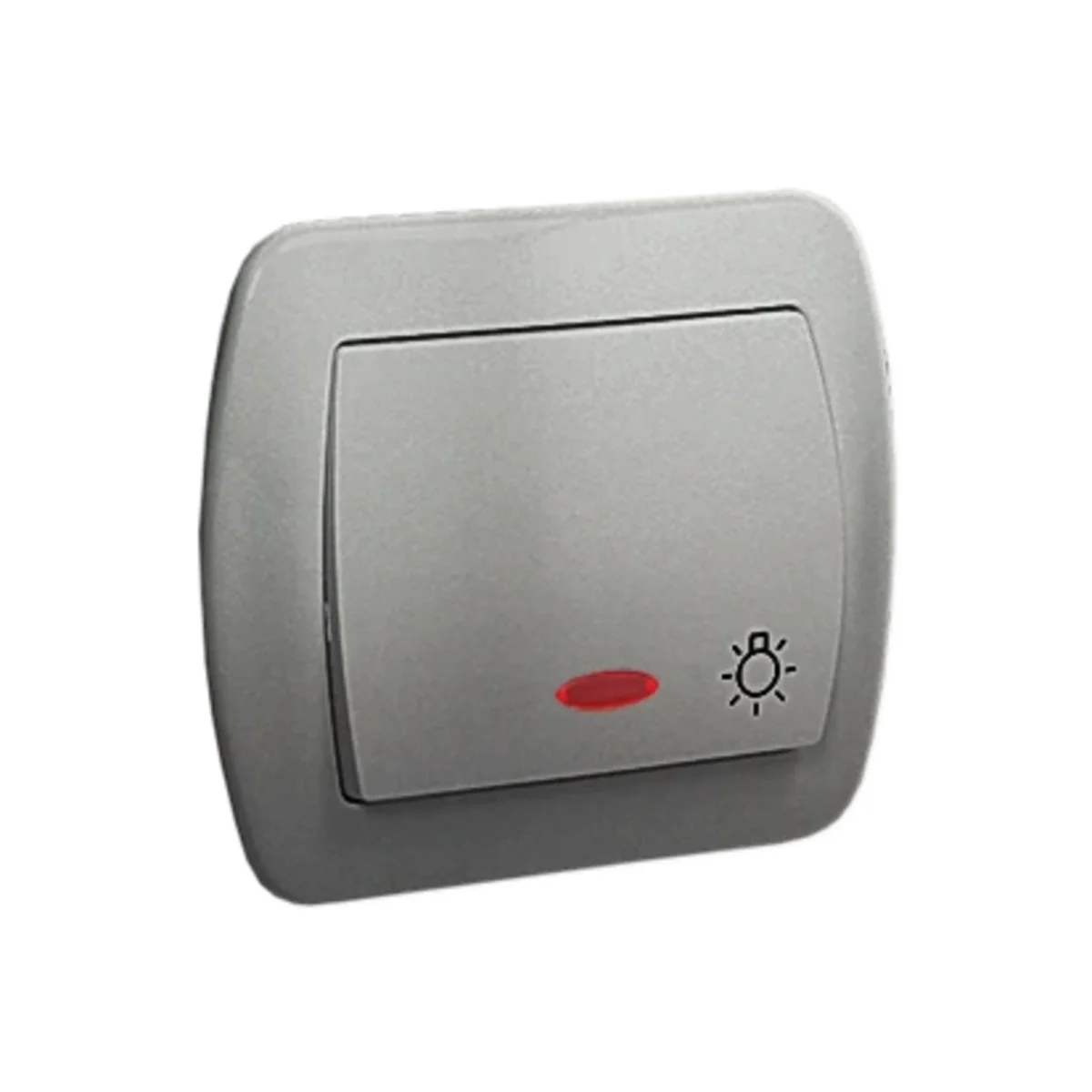

"Light" button with backlight 230V, metallic silver AS1L/26

local index:
MMZ036KONT
Catalog No:
AS1L/26
EAN code:
5902787598013
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 1
Price:
7,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

"bell button" with backlight, from the Simon Akord series, from the manufacturer Contact Simon. The product catalog number isAS1L/26. In aluminum, metallised.



FEATURES

  • Symbol “light” on the key.
  • Built-in, orienting backlight, orange lamp.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon CHORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    90
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Aluminum metallised
  • Mounting depth [mm]
    24.5
  • Variant
    Light
  • Exact material
    PC
  • Backlight color
    Orange
  • Depth [mm]
    37.5
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    CHORD
  • Symbol
    Light
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Backlight type
    Orientation Smoldering lamp
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,056 0,056 0,645
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
