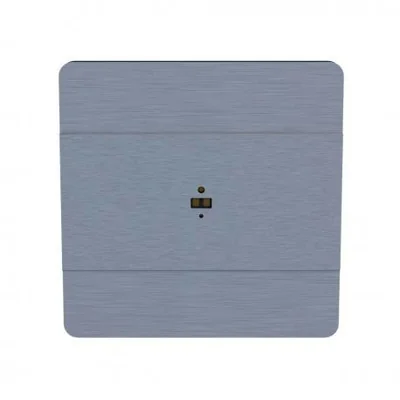

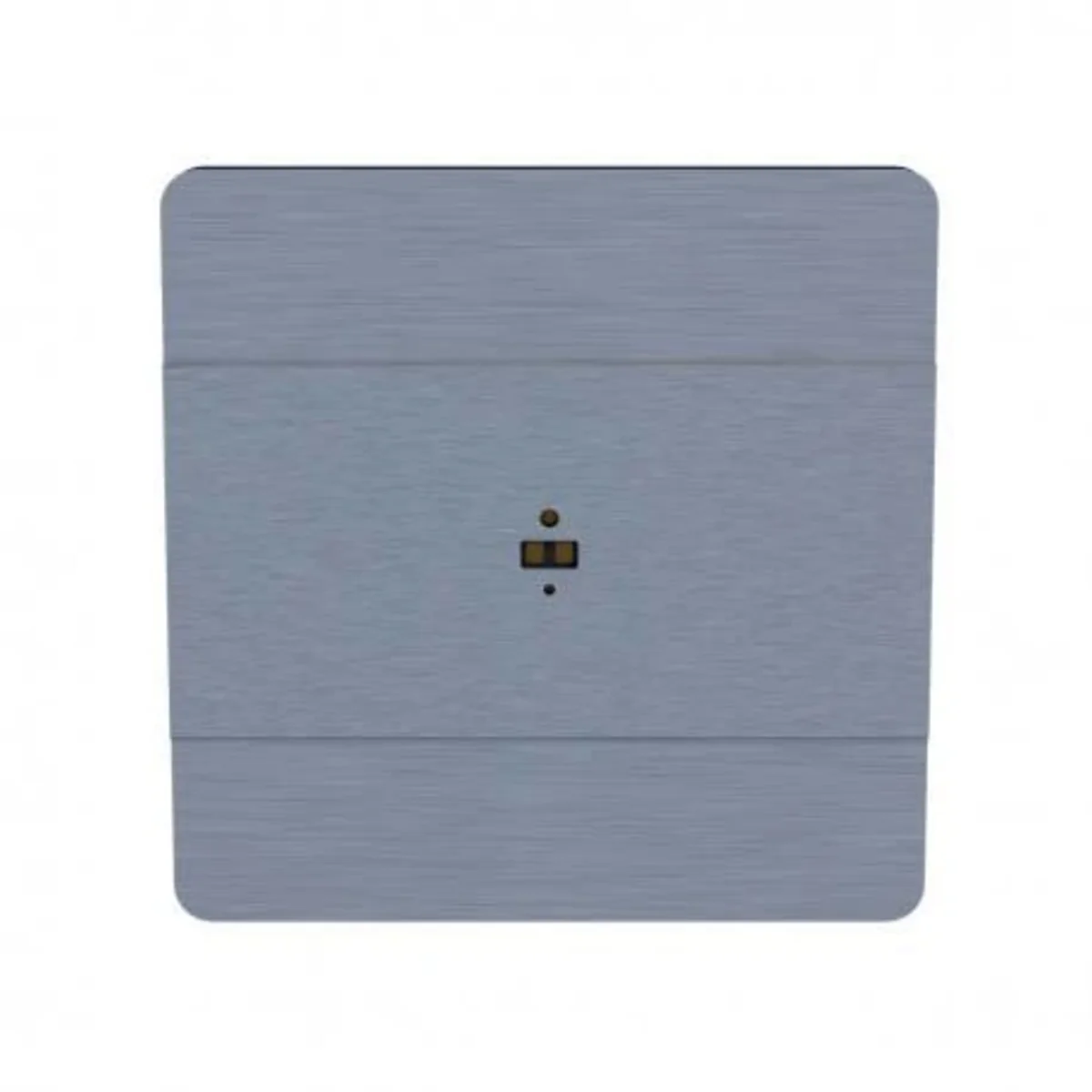

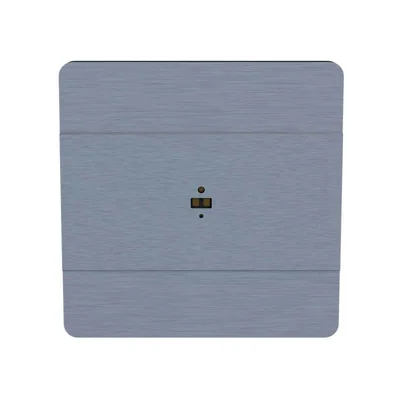

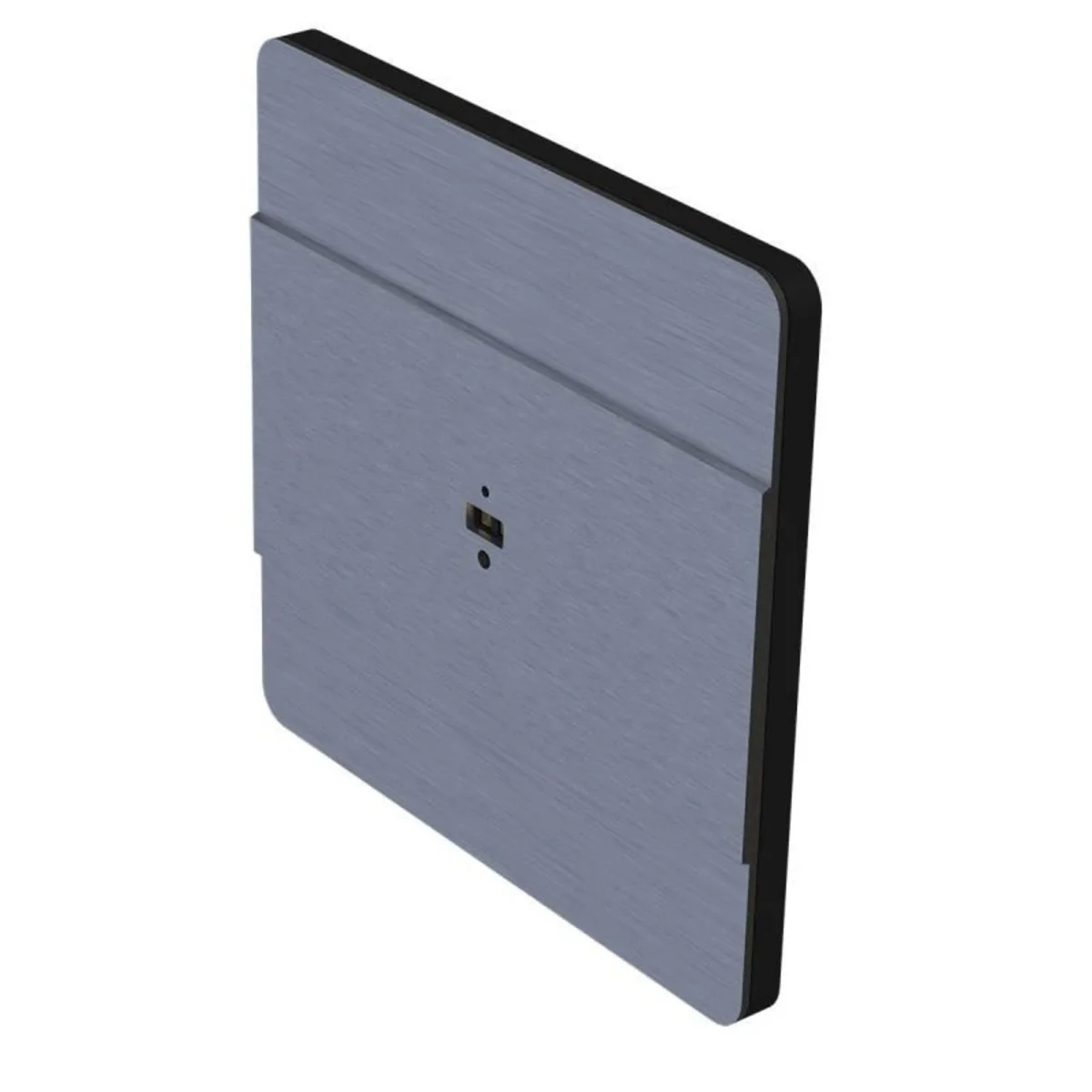

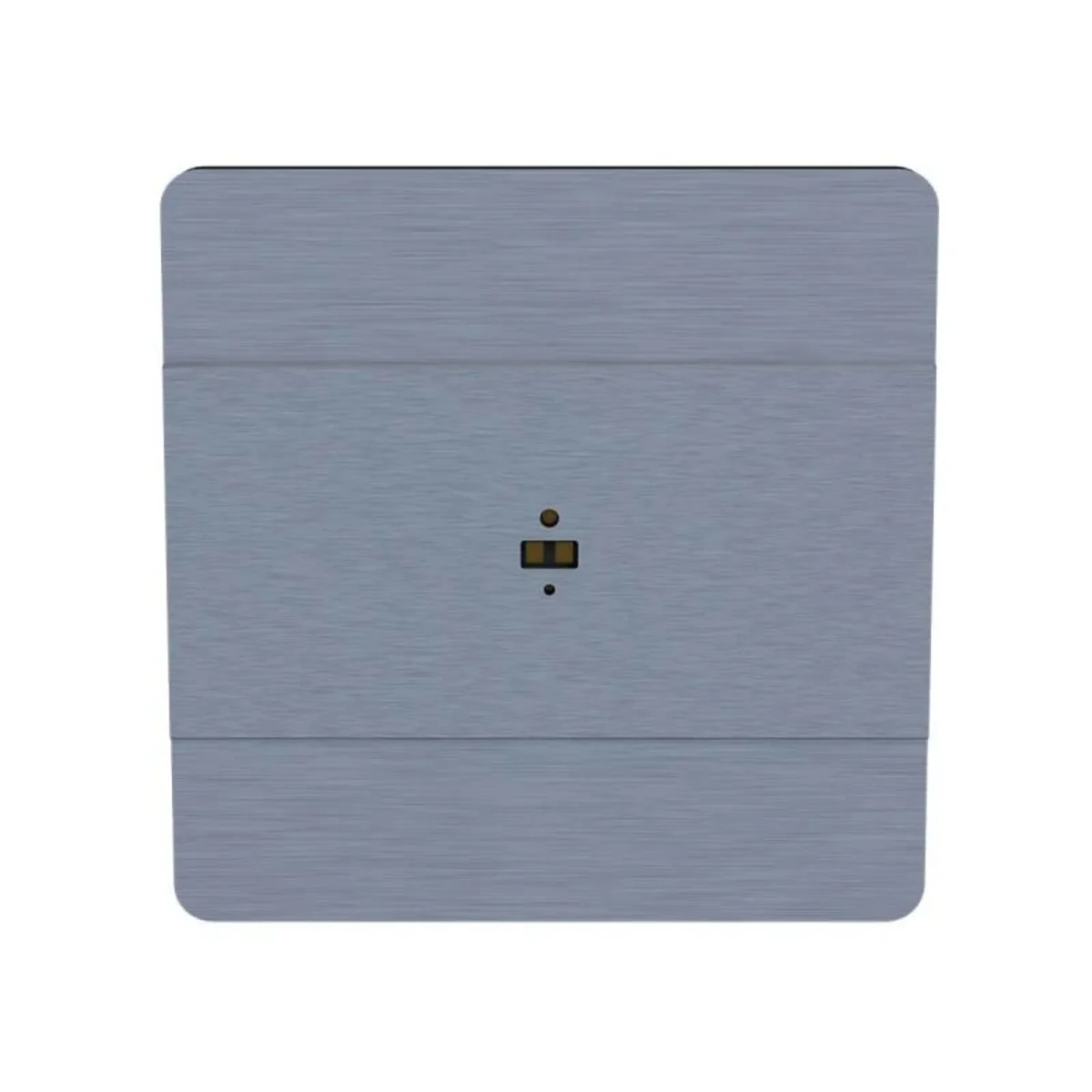

Laser distance sensor IP30 230V aluminum DRL-60-230

local index:
MWC002FIFQ
Catalog No:
DRL-60-230
EAN code:
5902431675497
Manufacturer: F&F
Depth [mm]: 25
Detection angle [°]: 18
Color: Silver
Price:
115,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DRL-60 is aToF laser distance sensor. Automatically switches on the lighting of corridors and staircases.

Operation of the DRL-60-230 laser motion sensor

DRL-60-230 is a laser distance sensor designed for direct control of 230V AC lighting circuits, in particular; only in corridors and staircases.

Due to the fact that the control element here is a separated relay contact, this sensor can also be used for integration with any home automation.
The principle of operation is on the emission of a light beam and measurement of the delay of light returning as a result of reflection from an obstacle. On this basis, it is possible to precisely determine the distance of the obstacle, which is then compared with the set detection range. The condition for turning on the light is the presence of an obstacle at a distance smaller than the set detection range, and the brightness level is below the value set on the sensor.
This solution is perfect for switching on lighting circuits, e.g. on open stairs, where it is important that the sensor only detects presence on the stairs and ignores everything that happens outside them.


Functions of the DRL-60-230 laser distance sensor

  • ToF (Time of Flight) laser distance sensor;
  • Detection range adjustable in the range from 0.1 to 2 m;
  • Brightness sensor preventing the light from being turned on at a high brightness level;
  • Adjustable time to keep the light on;

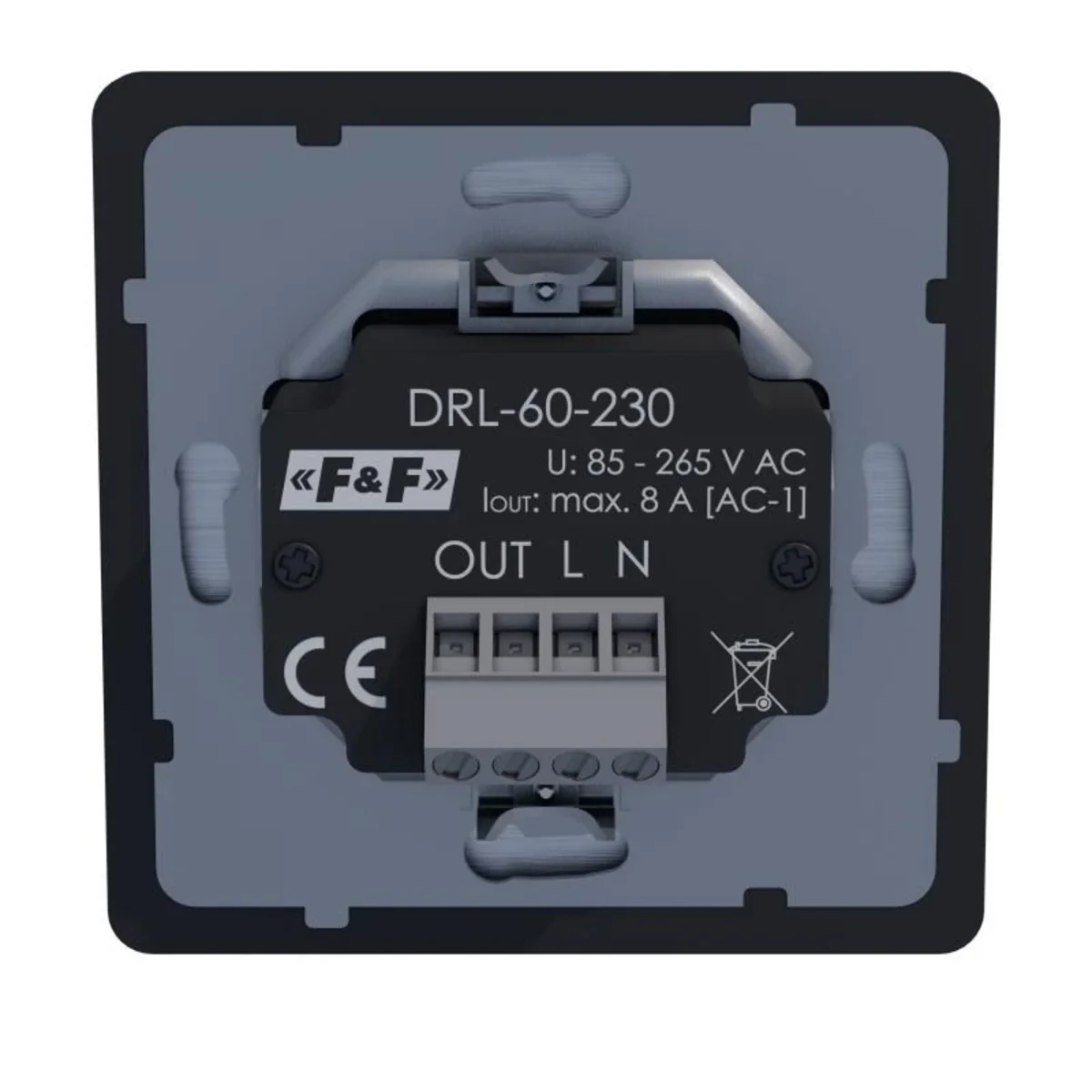

  • Separated relay output enabling direct control of 230 V circuits or integration with any home automation;
  • Possibility of direct control of electrical circuits with a load of up to 8 A (AC-1);
  • Small size, assembly in a box ø60 mm;
  • » LED indicating the operating status of the sensor;
  • » Thermal protection against exceeding the permissible temperature inside the housing.

Technical data

  • Depth [mm]
    25
  • Color
    Silver
  • Rated voltage [V]
    230
  • Rated current [A]
    8
  • Width [mm]
    80
  • Accurate color
    Aluminum
  • Detection angle [°]
    18
  • Installation
    Flush-mounted
  • Power consumption [W]
    0.3
  • Level of security
    IP30
  • Height [mm]
    80
