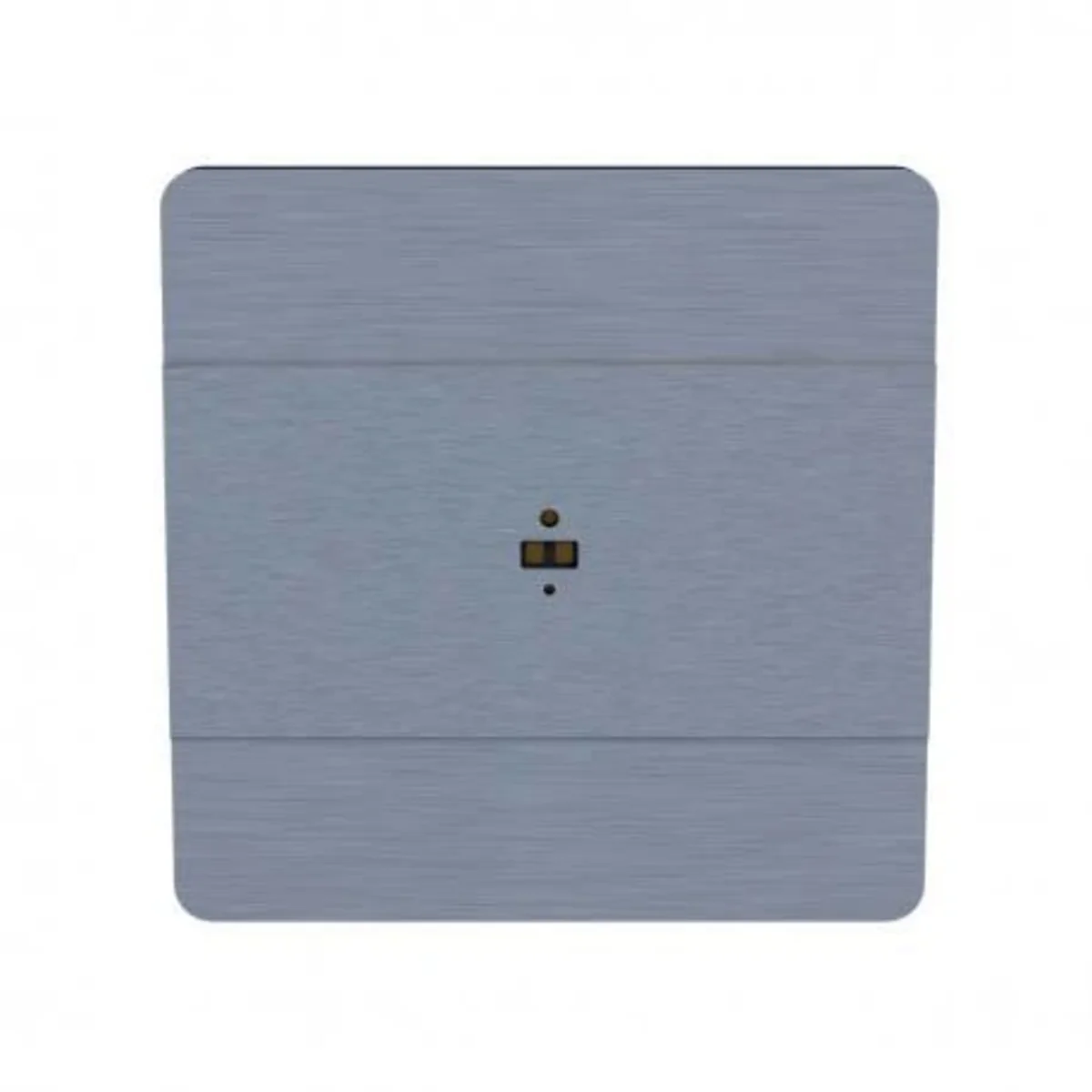

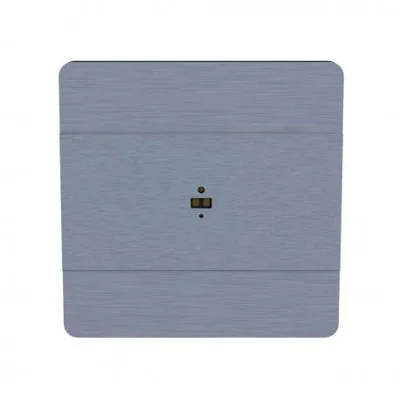

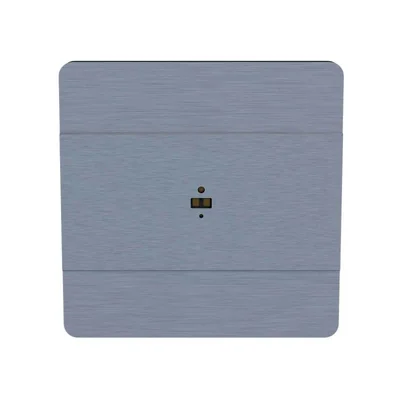

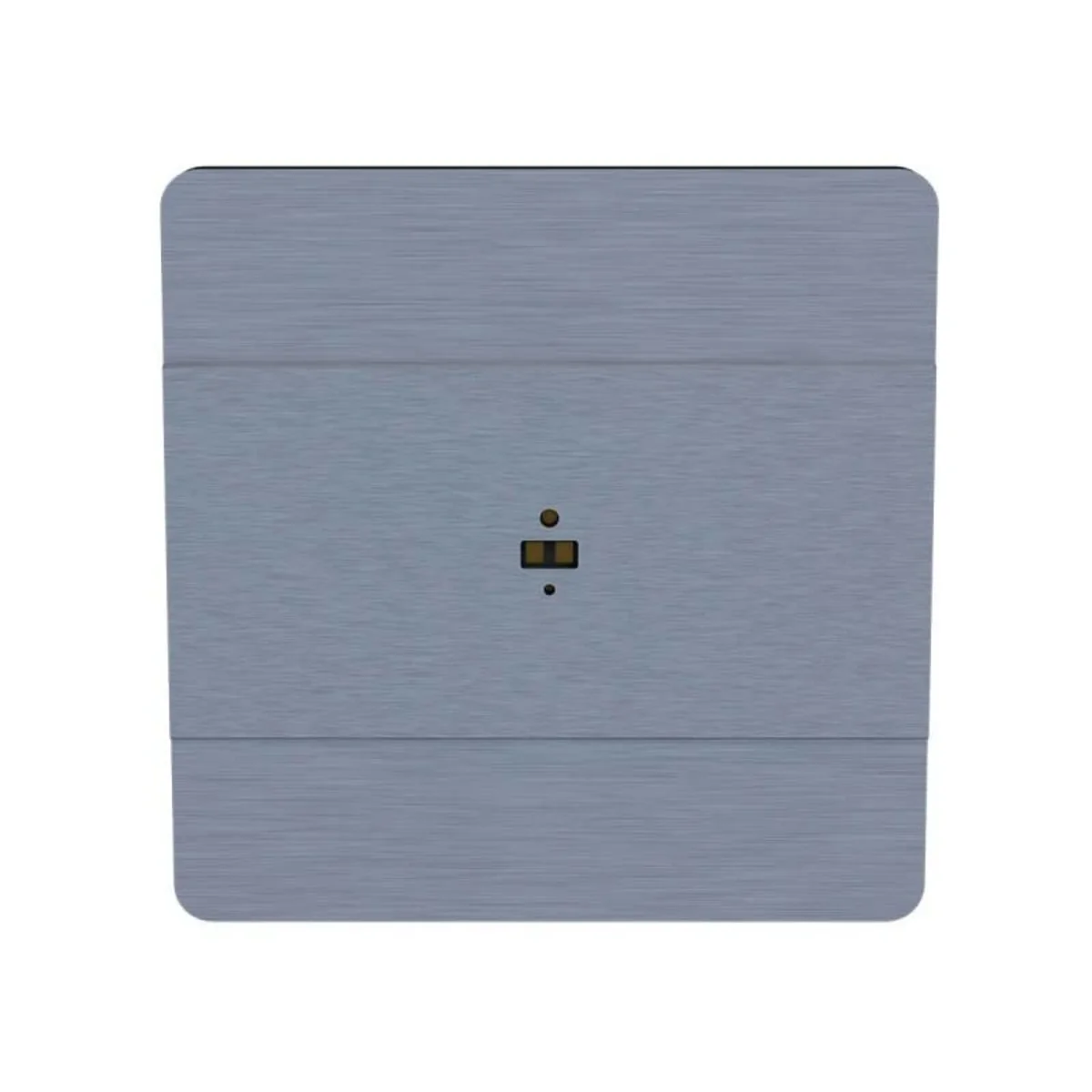

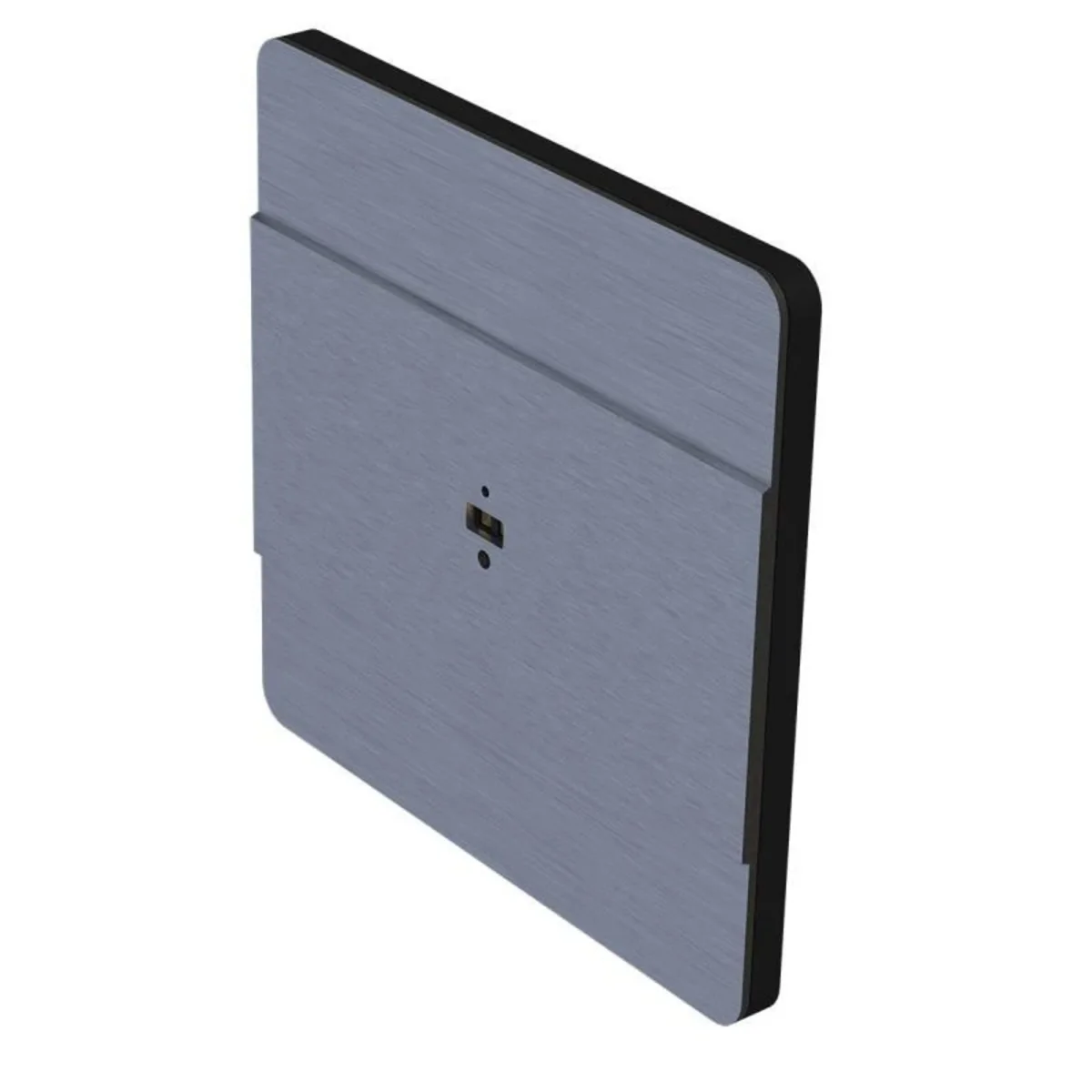

Laser distance sensor IP30 12/24V aluminum DRL-60-12

local index:
MWC001FIFQ
Catalog No:
DRL-60-12
EAN code:
5902431675473
Manufacturer: F&F
Depth [mm]: 25
Detection angle [°]: 18
Color: Silver
Price:
110,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DRL-60 is aToF laser distance sensor. Automatically turns on the lighting of corridors and staircases.


Operation of the DRL-60-12 laser motion sensor

DRL-60-12 is a laser sensor designed to control low-voltage lighting , especially in corridors and staircases.

The principle of operation consists in emitting a beam of light and measuring the delay of the light returning as a result of reflection from an obstacle. On this basis, it is possible to precisely determine the distance of the obstacle, which is then compared with the set detection range.
The condition for turning on the light is the presence of an obstacle at a distance smaller than the set sensor operation range. The second condition is the brightness level. environment below the value set on the sensor.

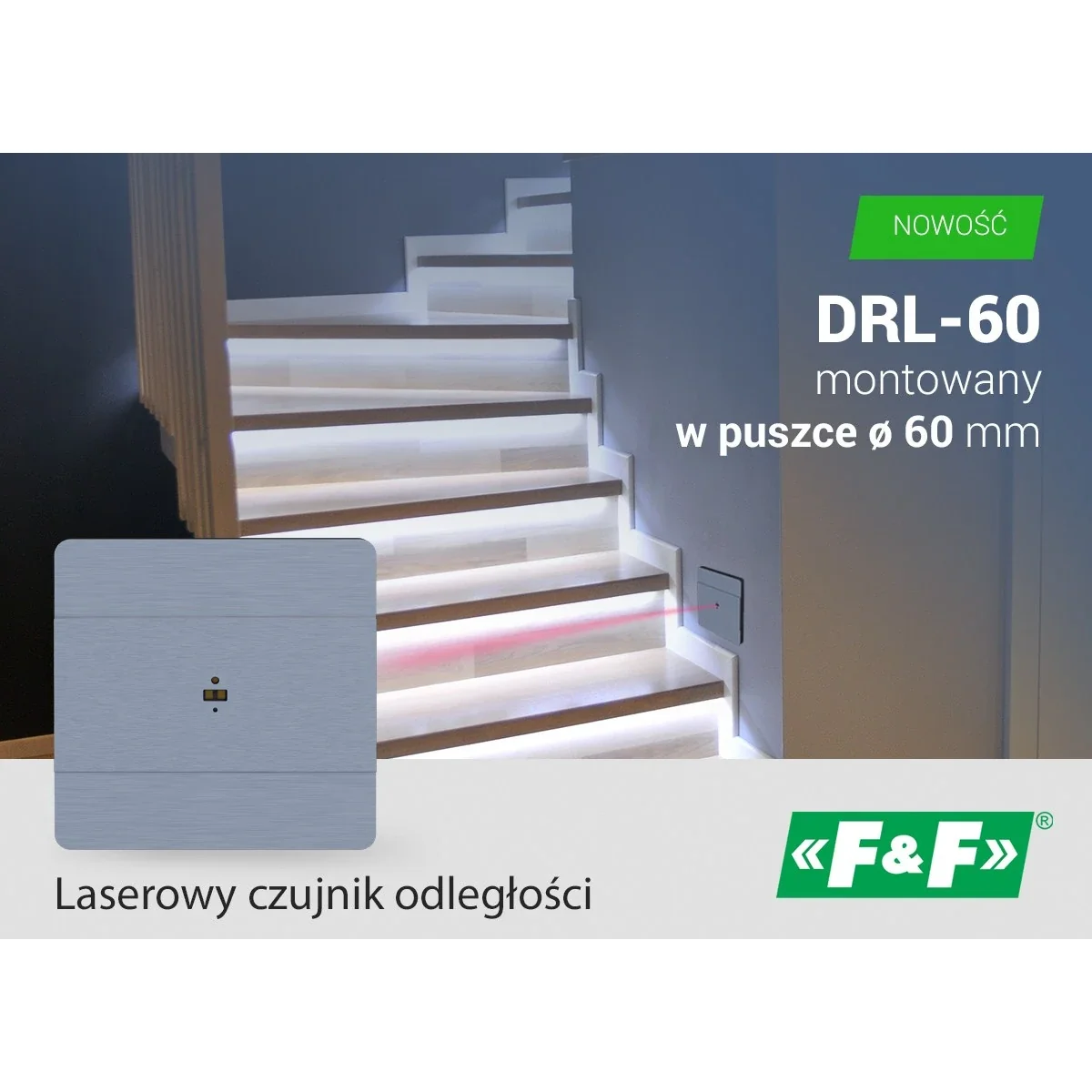

This solution is perfect for switching on lighting circuits, e.g. on open stairs, where it is important that the sensor detects presence only on the stairs and ignores everything that happens outside them.


Functions of the DRL-60-12 laser distance sensor

  • ToF (Time of Flight) laser distance sensor );
  • Detection range smoothly adjustable from0.1 to 2 m;
  • Brightness sensor preventing the light from turning on at high brightness levels;
  • Adjustable time to keep the light on;

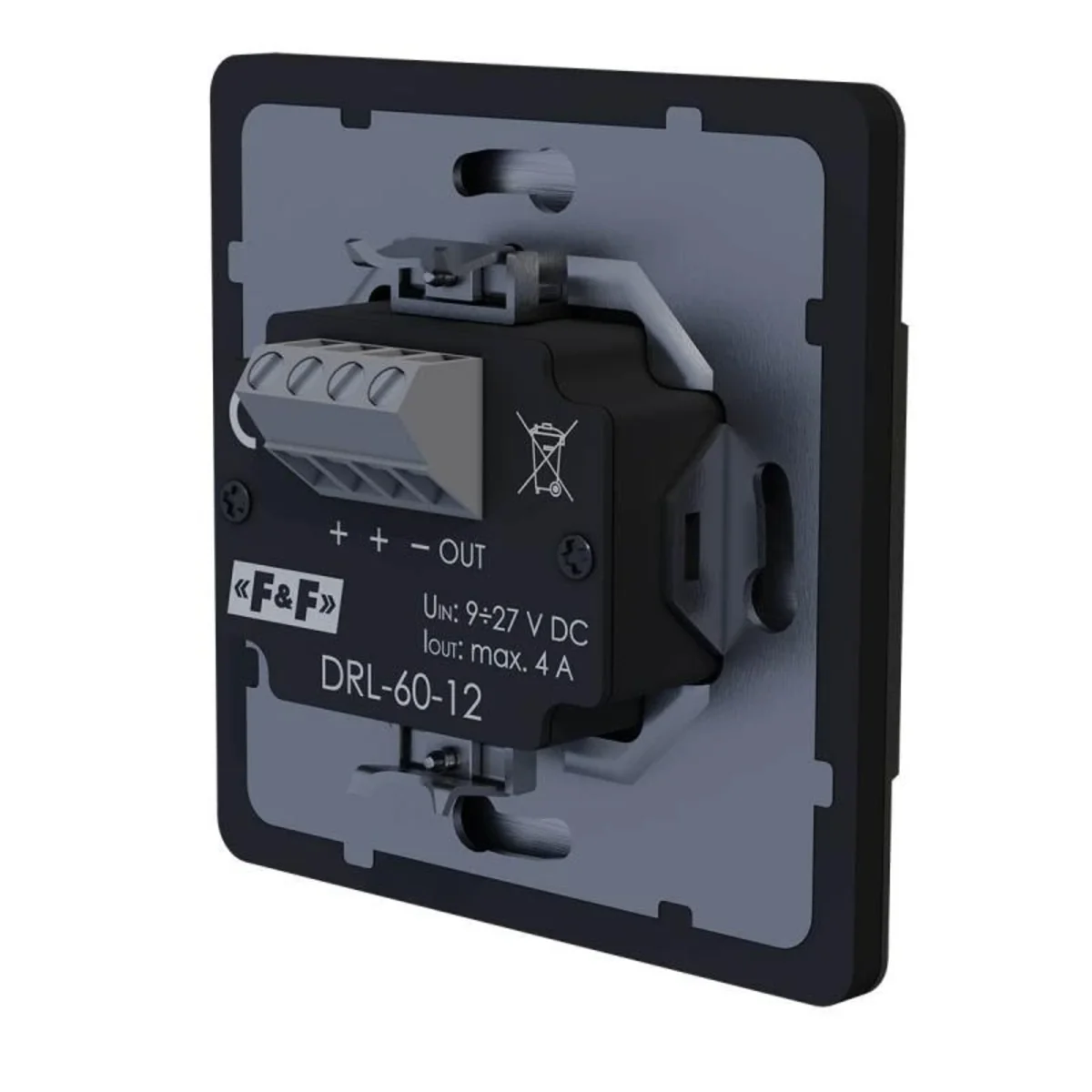

  • Possibility of direct control of 12/24 V lighting circuits (load capacity up to 4 A, which can be increased by connecting LED-AMP amplifiers);
  • Function of soft switching on and off of controlled lighting circuits*;
  • Possibility of integration with AS-225 and AS-225D staircase controllers;
  • Small size, installation in a box ø60 mm;
  • LED indicating the sensor's operating status;
  • Thermal protection against exceeding the permissible temperature inside the housing.


*) Soft light switching on and off works when the hold time is set to a value greater than zero and when dimmable light sources are connected to the sensor.

Technical data

  • Depth [mm]
    25
  • Color
    Silver
  • Rated voltage [V]
    12/24
  • Rated current [A]
    4
  • Width [mm]
    80
  • Accurate color
    Aluminum
  • Detection angle [°]
    18
  • Installation
    Flush-mounted
  • Power consumption [W]
    0.5
  • Level of security
    IP30
  • Height [mm]
    80
